Custom J29 series-Rectangular Electrical Connector

Home / Products / Rectangular Electrical Connector / J29 series
Recommended products
CALL OUR OFFICE

‪+86 176 0151 5794‬

E-MAIL

[email protected]

J29 series-Rectangular Electrical Connector Manufacturers

Product introduction

◆Metal shell

◆Contact spacing is 1.91mm, row spacing is 1.65mm

◆The plug is equipped with elastic twisted wire pins, and the socket is equipped with rigid jack

◆The two rows have six core numbers: 9, 15, 21, 25, 31, and 37; the third row has two core numbers: 51 and 66

◆A variety of locking components and tail clamp covers are available for selection

◆Plugs and sockets are divided into three types according to the width of the shell mounting plate: ordinary type (wide), –A type (narrow) and –Al type (width is between ordinary type and –A type)

◆Various termination forms such as crimping, welding, straight PCB and curved PCB

Use :

The product has the advantages of high density, light weight and miniaturization, and can realize reliable interconnection of electrical circuit systems between cables within the system, cables and printed boards, and printed boards and printed boards.

Usage environment:

The product can withstand harsh usage environments such as strong vibration and impact, and is especially suitable for use in situations that have special requirements for space and lightweight equipment.

Main technical characteristics

●Operating temperature: –55℃～+125℃

●Rated operating current: 5A

●Contact resistance: ≤10mΩ

●Insulation resistance: normal temperature ≥ 5000MΩ;

●Media withstand voltage: 1500V DC

●Vibration: 10～2000Hz Acceleration 196m/s² ●Shock: 1200m/S², 6ms

●Tightness index (applicable to J29M series products)

Water seal: Pressure difference - one atmosphere, no bubbles produced during water inspection

Air seal: 1X10−1Pa.cm³/s (pressure difference – one atmosphere)

●Recommended locking torque: 0.35~0.4N.m

●Recommended installation torque: 0.45~0.5N.m

●Mechanical life: 500 times

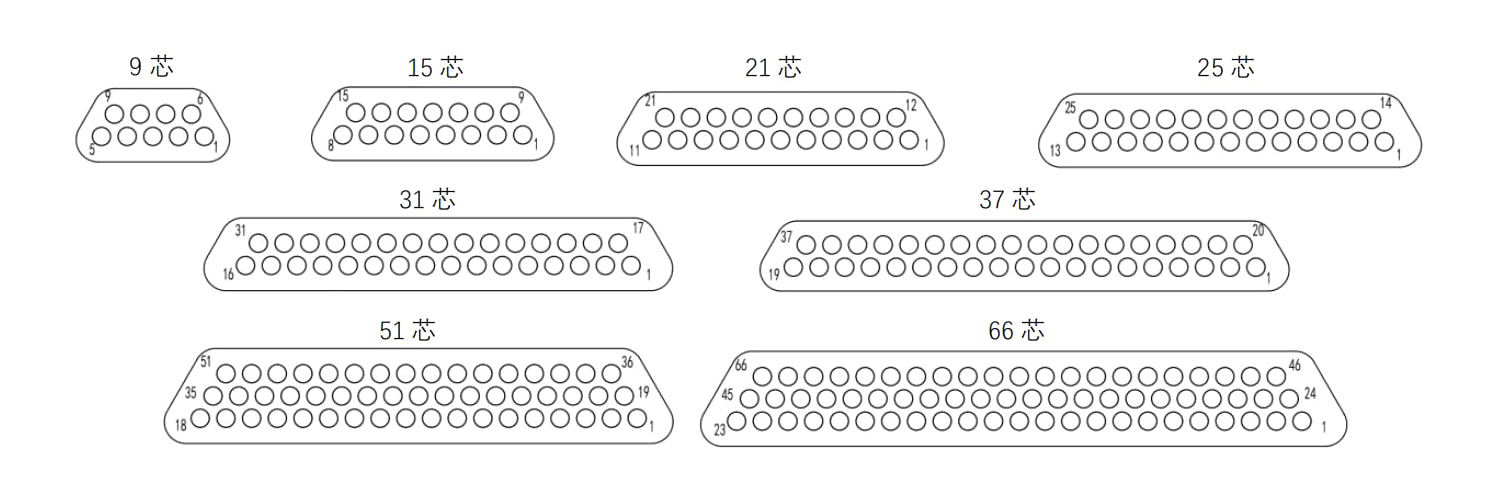

Contact arrangement (view of needle insertion surface)
