Custom MS26482 Series I Military Electrical Connectors

Home / Products / Military Electrical Connectors / MIL-DTL-26482 I series
Recommended products
CALL OUR OFFICE

‪+86 176 0151 5794‬

E-MAIL

[email protected]

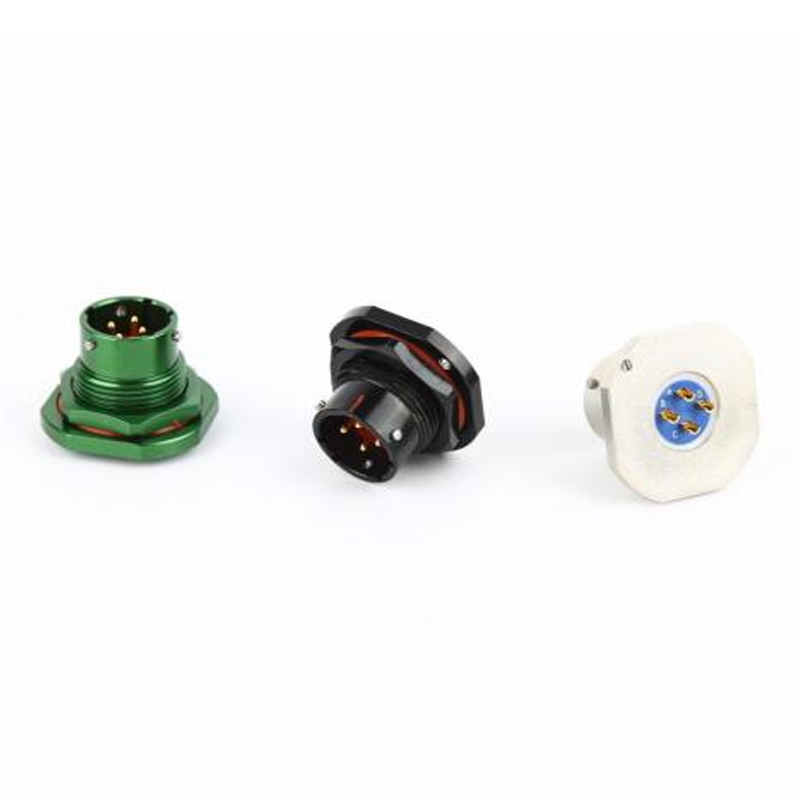

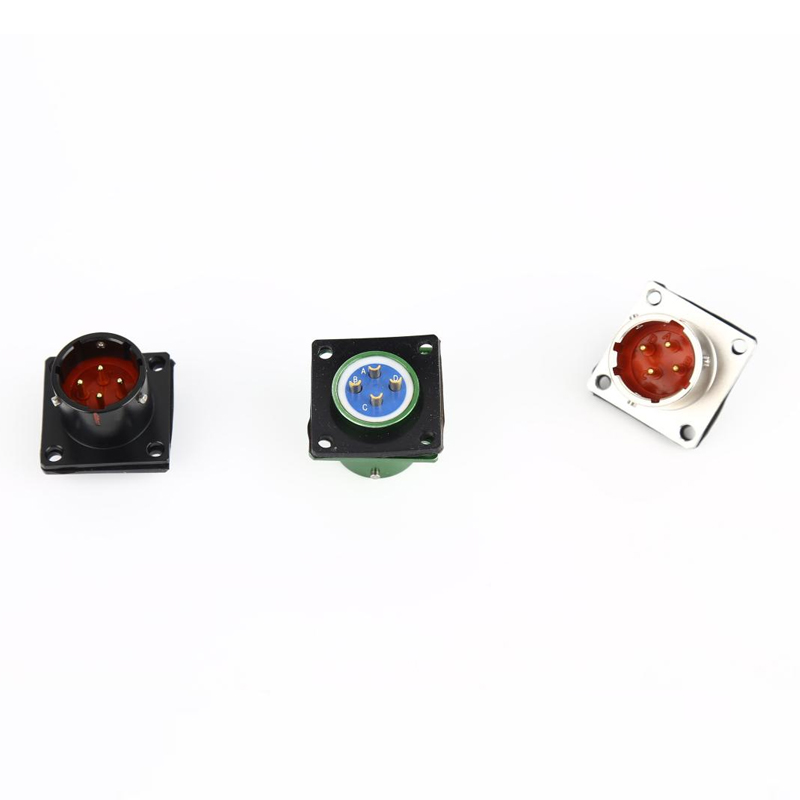

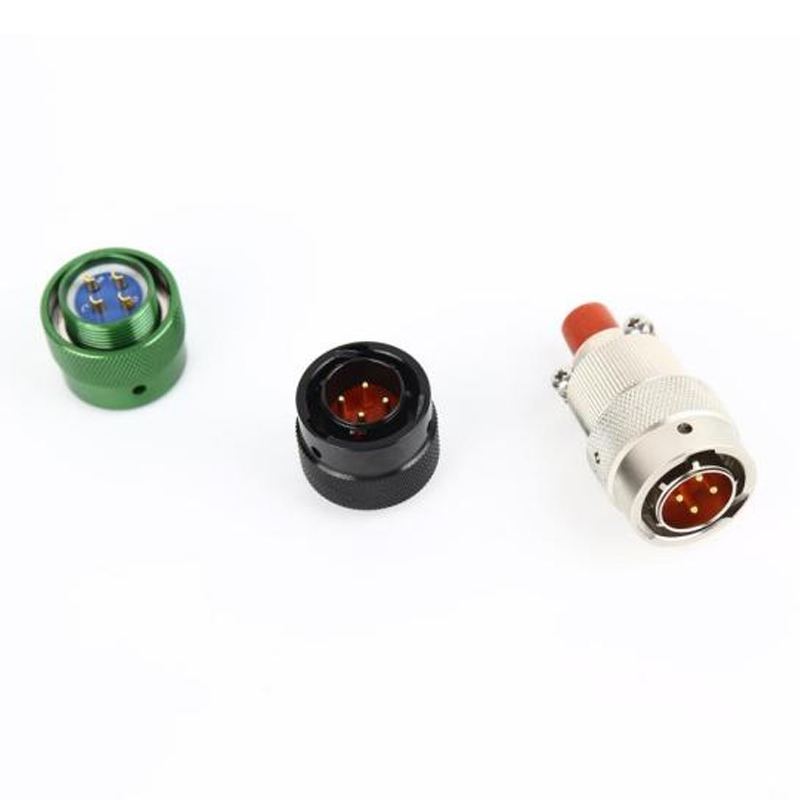

MS26482 Series I Military Electrical Connectors Manufacturers

Product introduction

◆ Comply with GJB598 (MIL-C-26482) I series standards

◆ Bayonet type quick connection

◆ Most contact termination methods are welding

◆ Small size, high density, good environmental resistance

◆ Widely used in various types of military and civilian equipment

Purpose: The product is used for circuit signal connection

Usage environment: The product is used in various military and civilian environments, and is resistant to moisture, salt spray, mold, rain, sand and dust, etc.

Main technical performance

● Mechanical properties:

Shell material: aluminum alloy, stainless steel

Plating: Unmarked: Cadmium olive brown, conductive housing

Category L: Electroless nickel plating, conductive housing

Class A: Black anodized, non-conductive housing

Category B: Cadmium plated military green, conductive shell

Category S: Passivated stainless steel, conductive housing

BW type: cadmium-plated brown-green, conductive shell

Insulator material: thermoset plastic or thermoplastic

Sealing body and sealing ring material: silicone rubber

Contact material: copper alloy surface gold-plated

Mechanical life: ≥500 times

Impact: acceleration 490m/s²

Random vibration: frequency 10～2000Hz, acceleration 147m/s²

● Electrical performance:

Working voltage and withstand voltage: V



Work grade *

Working voltage

Withstand voltage

I

II

I

II

Sea ​​level

600

1000

1500

2300

21336m

300

450

375

500

Note: Different contact arrangements have different working levels. For details, see the mark in the upper right corner of the contact arrangement.​

Contact resistance and rated current of contacts:

Contact specifications

Working diameter mm

Contact resistance mΩ

Rated current A

20#

Ф1.00

≤5

7.5

16#

Ф1.60

≤2.5

13

12#

Ф2.40

≤1.5

23

Insulation resistance: ≥5000MΩ at 25˚C, ≥3MΩ at 125˚C

● Environmental performance:

Operating temperature: -55 ˚C～+125 ˚C

Relative humidity: 95±4% at 40 ˚C

Salt spray resistance: Cadmium plating: 500h

Nickel plating: 48h/96h

Sealing performance: Sealing line seal: pressure difference 2×105Pa, leakage rate less than 4.6×102Pa·cm3 /s

Sintered seal: pressure difference 1×105Pa, leakage rate less than 0.1Pa·cm3/s

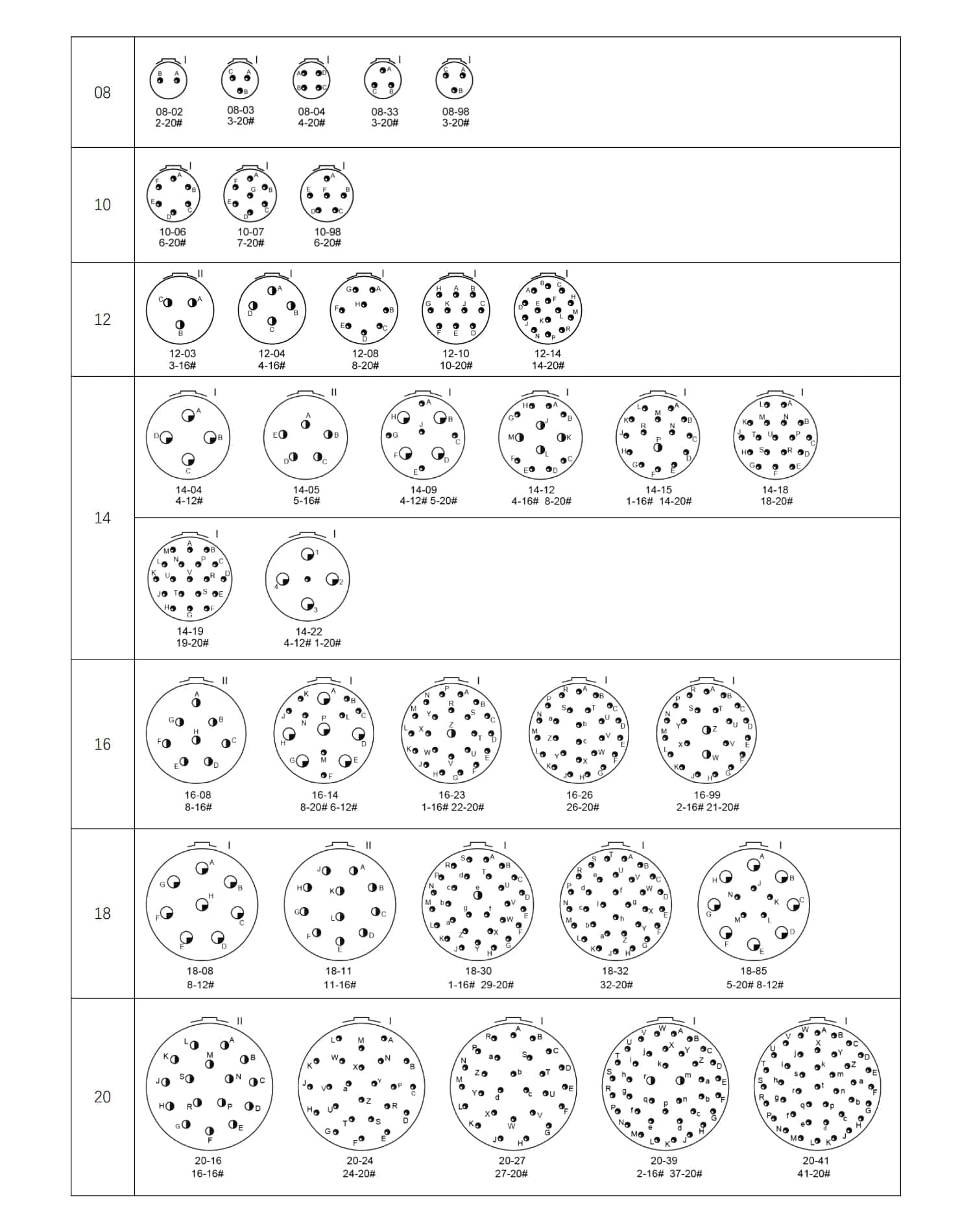

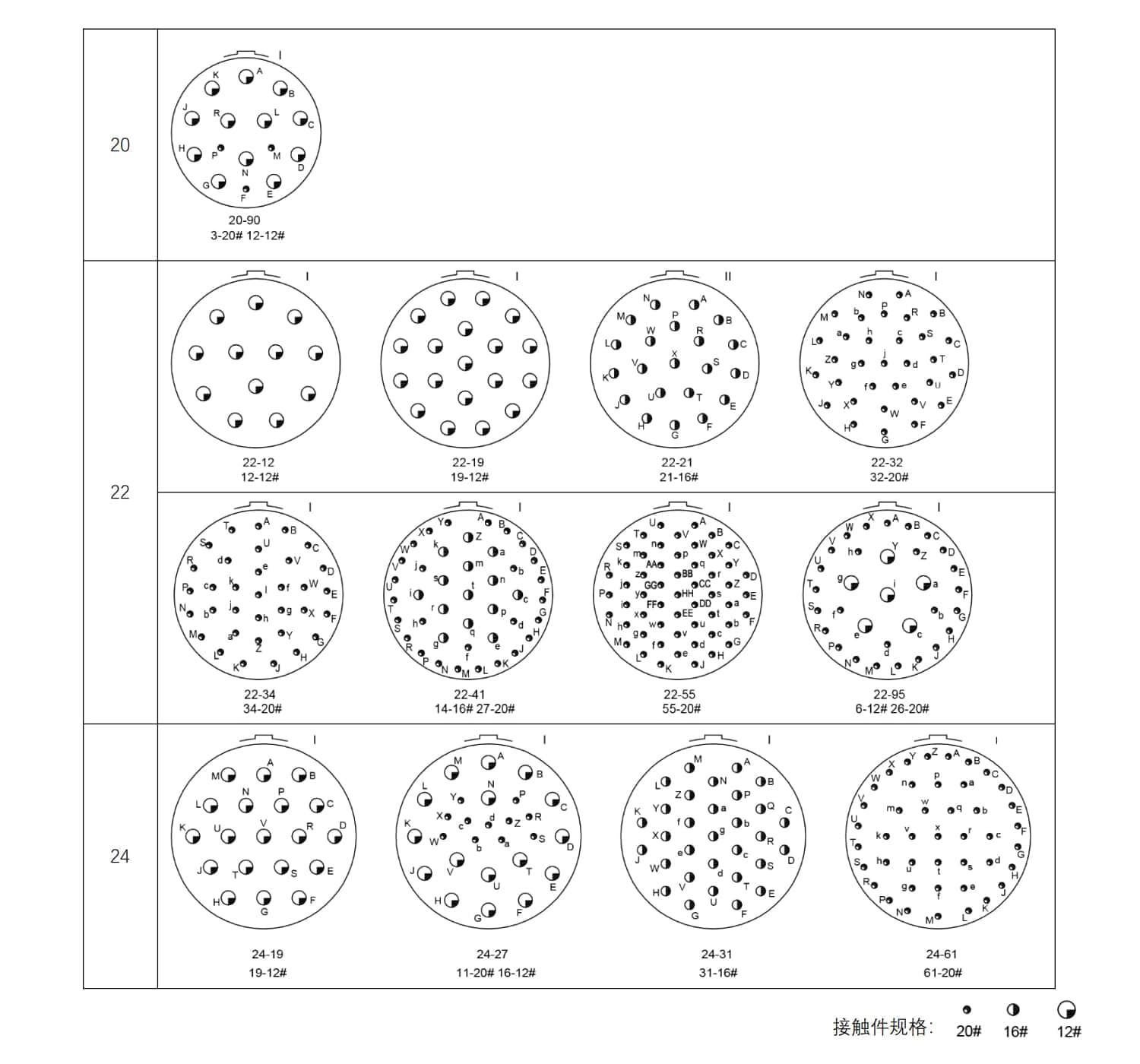

Contact arrangement (view of the insertion surface of the needle insulator)

This series of products is designed according to GJB598 and uses insulation rotary key positions. There are design defects in the insulation rotary key positions in the standard, and the uniformly distributed contact points on the circumference cannot effectively prevent the rotary key positions from being damaged.

Misinsertion, for example: 08-2, 08-4, 08-33, 10-6, 10-98, 12-4, 14-4, 16-23, 16-26, 18-11, 18-32, 20-41 contacts, please pay attention when selecting.
