Custom J599A8 series-Fiber Optic Electrical Connectors

    Information to be updated


J599A8 series-Fiber Optic Electrical Connectors Manufacturers

Product introduction

◆The interface size complies with GJB599B (MIL-DTL-38999) III series, and the performance complies with ARINC801 standards

◆Applicable to aviation, electronics, ships and other systems for multi-channel optical communication

◆Using standard 1.25mm ceramic pins, high docking accuracy

◆The array is packaged in ceramic sleeves and can be disassembled and replaced as a whole, making it easy to use and maintain.

◆Contact installation and removal tool M81969/14-03, easy to operate



Main technical performance

● Mechanical properties:

Mechanical life: ≥500 plug and unplug cycles

Impact: Peak acceleration 2940m/s², duration 3ms, speed change rate 5.61m/s

Vibration: 10Hz~2000Hz, power spectral density 0.4G2/Hz, acceleration root mean square value 23.1G

Tensile strength: ≥68N (2mm contact jumper)

● Optical performance:

Insertion loss: ≤0.6dB

Return loss: ≥20dB@850nm; ≥40dB@1310nm

● Environmental performance:

Temperature range: -55℃ ~ +125℃ (according to optical cable temperature)

Salt spray: Category K: 500h

Category F: 48h

Category W: 500h

MW category: 192h (acidic atmosphere)

Air-tightness (suitable for air-tight adapter sockets):

Gas leakage rate: ≤1× 10−9 Pa.m³/s

The pressure difference between inside and outside is 1 atmosphere

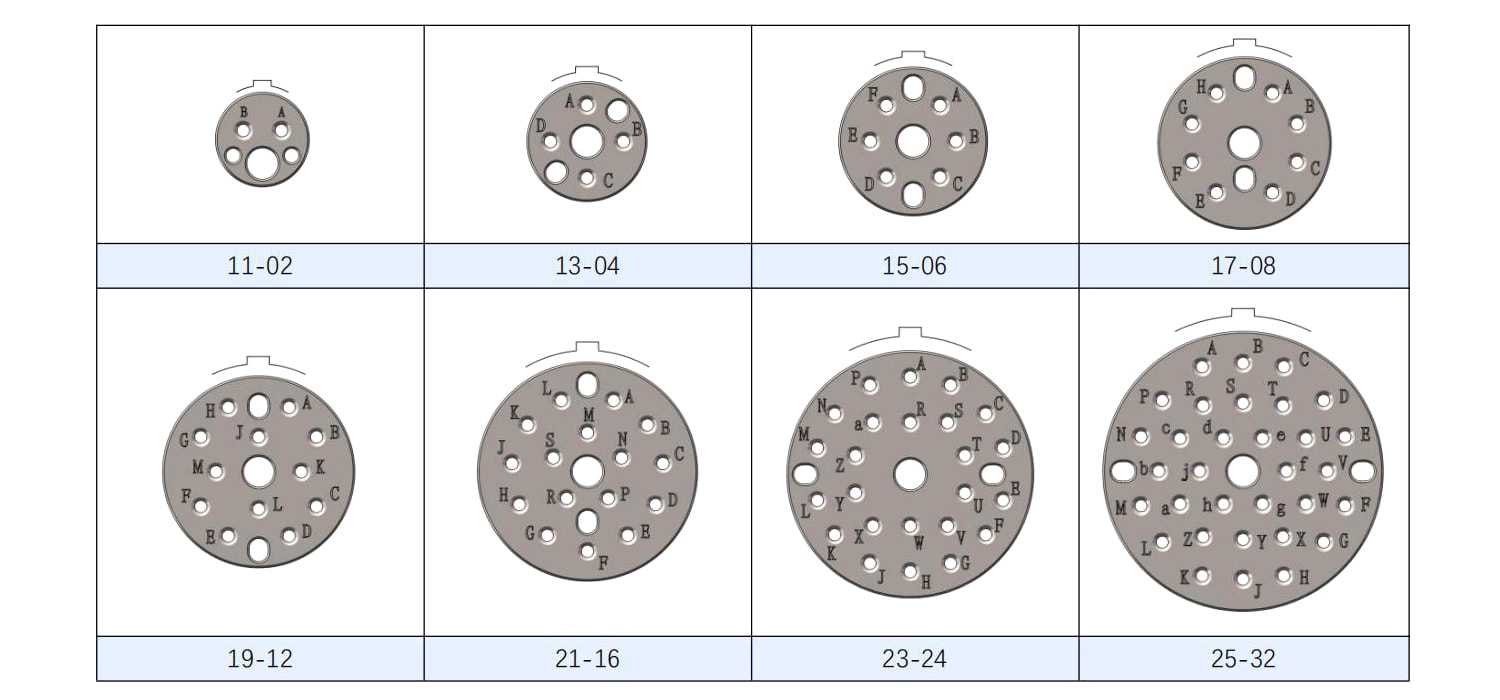

Contact arrangement (taking plug mating surface as an example)



ABOUT US

Power-efficient electrical connectors.

Taizhou Henglian Electric Co., Ltd. was founded in April 2011, is located in the "Ginkgo town" reputation of the riverside city - Taixing City, is specialized in electrical connector development, production, sales of high-tech enterprises.

We are China Custom J599A8 series-Fiber Optic Electrical Connectors Manufacturers and OEM/ODM J599A8 series-Fiber Optic Electrical Connectors Suppliers.

There are more than 150 employees, including more than 30 people with various professional and technical titles, fixed assets of 30 million yuan, with a variety of mechanical processing equipment and testing equipment.

In recent years, the company has been rated as "Top Ten enterprises in Zhangqiao Town", "Top Ten enterprises in Zhangqiao Town", and won the "Taixing Outstanding Contribution Award" and other titles.

At present, the company's leading products are conforming to the military standard Y11, Y17, Y27, Y50, YGD, YLH, YM, YW, J599I, J599II, J599III, XC series circular electrical connectors, and J7, J14, J20J, J29A, J30J, J63A series rectangular electrical connectors. It is in line with the national standard Y2, Y4, YP, LYP, YD, and other series of circular electric connectors. The products cover the general staff, final assembly, sea installation, Second Artillery, weapons, aerospace and other military varieties nuclear energy, railway, national power grid, oil earth geophysical exploration, and other fields. The company has a technical center, and quality inspection center, with sophisticated production equipment, modern inspection facilities, and inspection and testing means. The products have the characteristics of three-defense function, high density, high reliability, electronic compatibility, etc., and can develop and produce various kinds of special electrical connectors for various users to meet customer needs.

The company is a qualified supplier of military electronic components, Marine equipment and aerospace of the Communications Department of the General Staff and the Ministry of Information Industry, and has passed the GJB9001C-2017 weapons and equipment quality management system certification and the second-level secret certification of weapons and equipment production and research units.

The company always adhere to the "integrity-based, unity and hard work, realistic innovation, the pursuit of excellence" spirit of enterprise, adhere to the concept of "brand create value", dedicated to customer service, so that Henglian quickly become the leader in the peer.

Taizhou Henglian Electric Co., Ltd. sincerely welcome domestic and foreign customers to visit and negotiate business!

Contact Us
  • Factory
    Factory
  • Production line
    Production line
  • Assemble
    Assemble
  • Wiring Harness Workshop
    Wiring Harness Workshop
  • Product design
    Product design
  • Inspection equipment
    Inspection equipment
  • Inspection equipment
    Inspection equipment
  • Assemble
    Assemble
  • Factory Area
    Factory Area
  • Honor Wall
    Honor Wall
  • Product Display Cabinet
    Product Display Cabinet
  • Training
    Training
  • Training
    Training
  • Outstanding Contribution Award
    Outstanding Contribution Award
  • 10th Anniversary Sanya Trip
    10th Anniversary Sanya Trip
  • Exhibition
    Exhibition
  • Exhibition
    Exhibition
  • Exhibition
    Exhibition
Certificate Of Honor
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
Insight
Industry Knowledge

What are the common specifications of the J599A8 series fiber optic electrical connectors?

Taizhou Henglian Electric Co., Ltd.'s J599A8 series fiber optic electrical connectors cover specifications ranging from high-frequency data transmission, military standards to reliability requirements in a variety of harsh environments, and are designed to meet the needs of users in different fields for high performance, durability and compatibility. With years of technical accumulation and advanced production capabilities, the company provides customized connector solutions that meet national and military standards.

Common specifications of the J599A8 series fiber optic electrical connectors
Connector type
Fiber optic electrical connectors: The J599A8 series connectors are fiber optic connectors that are usually used in high-frequency, high-speed data transmission scenarios, especially for applications that require anti-interference and high reliability.

Fiber type
Single-mode fiber and multi-mode fiber: This series of connectors supports single-mode fiber and multi-mode fiber, and different fiber types can be selected according to specific application requirements. Single-mode fiber is suitable for long-distance high-bandwidth transmission, while multi-mode fiber is suitable for short-distance and low-cost applications.

Interface standard
The interface specifications of the J599A8 series generally meet or exceed industry standards and are compatible with a variety of devices. Its design meets military standards (such as Y11, Y17, etc.) and national standards (such as Y2, Y4, etc.).

Transmission rate and bandwidth
This series of connectors supports high-bandwidth fiber transmission, and can usually support transmission rates of up to tens of Gbps or higher, which is suitable for occasions requiring extremely high data transmission rates.

Size and appearance
J599A8 series connectors are usually circular structures (in line with military Y series circular electrical connectors), with compact appearance design, suitable for environments with limited space but high-density connections. The size and design of the connector meet high reliability requirements and are suitable for harsh environmental conditions.

Protection level
These connectors usually have three protection functions such as waterproof, dustproof and shockproof to meet the application requirements in harsh environments. It is especially suitable for special industries such as military, aerospace, and marine, where high protection requirements are required.

Material and durability
J599A8 series connectors are made of high-strength materials, have excellent corrosion resistance and durability, can maintain excellent performance in harsh environments such as high temperature and humidity, and ensure long-term stable operation.

Electrical compatibility
This series of fiber optic connectors has good electrical compatibility, which can effectively reduce electromagnetic interference (EMI) and other signal loss problems, ensuring accurate signal transmission.

Application areas
J599A8 series fiber optic connectors are widely used in military fields (such as navy, weapon systems, aerospace), nuclear energy, railway systems, power industry and other fields, suitable for high-demand equipment connection.

Reliability and quality control
Henglian uses modern production equipment and testing facilities. The J599A8 series connectors undergo strict quality inspection and testing to ensure that the products meet the requirements of high reliability and long-term stability.
