●Conforms to GJB599B (MIL-DTL-38999M) II series standards

●Bayonet quick connection

●599 has the smallest volume, lightest weight and shortest shell among all series

●EMI/RFI shielding

●The contact piece is removable by crimping and does not prevent oblique insertion. In an environment with a small space and inconvenient plugging and unplugging, it is recommended to install pins on the socket.

Usage: The product is used for circuit signal connection

Usage environment: The electrical connector is a lightweight connector, suitable for use in situations that do not withstand high-intensity vibration or harsh wind, sand and moisture.

Main technical performance

●Mechanical properties:

Shell material: aluminum alloy, stainless steel

Plating layer: Class B: Cadmium plated military green

Category E: Stainless steel passivation

Category F: Electroless Nickel Plating

Contact parts: copper alloy surface gold-plated, crimping, welding, printed board type

Mechanical life: ≥500 plug and unplug cycles

Vibration: Random vibration frequency 100-1000Hz power spectral density 1g2/Hz

Impact: 3ms half sine wave, acceleration peak 300g



●Electrical performance:

Contact resistance and rated current of contacts:

Contact specifications

Working diameter mm

Contact resistance mΩ

Rated current A

22D

Ф0.76

≤12

5

20#

Ф1.00

≤5

7.5

16#

Ф1.60

≤2.5

13

12#

Ф2.40

≤1.5

23



Electromagnetic interference shielding: minimum attenuation less than 45dB at 100MHz-1GHz

Withstand voltage: V

Working grade*

M

Ⅰ

Ⅱ

Sea ​​level

1300

1800

2300

21000m

800

1000

1000

Insulation resistance: normal conditions ≥5000MΩ

Humid conditions ≥100 MΩ

Electrical continuity between shells: Class B ≤ 2.5mV

Class F≤1.0mV

Class E≤50mV



●Environmental performance:

Operating temperature: Class B: -65 ˚C ~+175 ˚C

Category E, F: -65 ˚C ~+200 ˚C

Salt spray resistance: Category B: 500h

Category E: 1000h

Category F: 48h

Relative humidity: 98% at 40 ˚C

Working height: ≤30480m

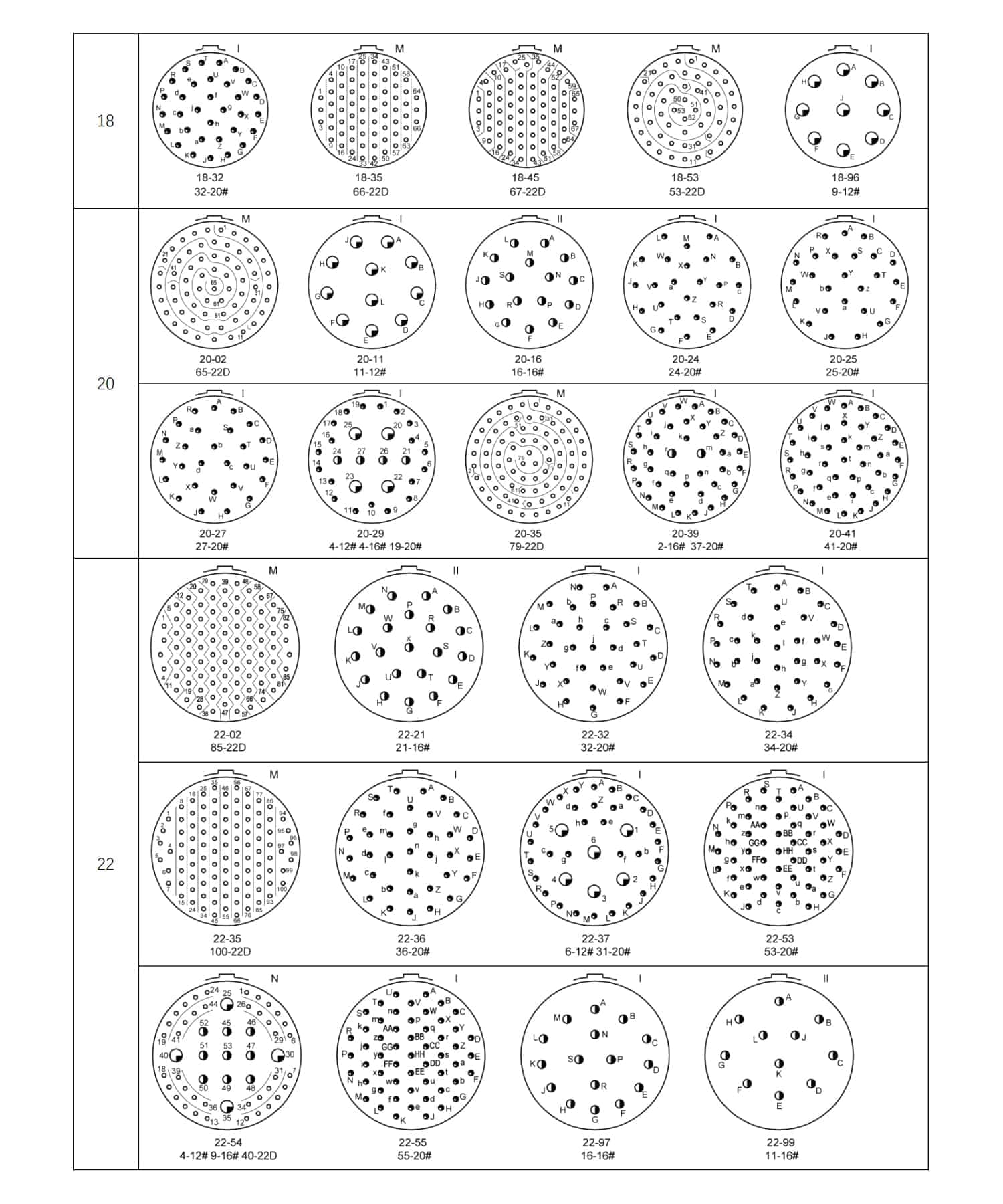

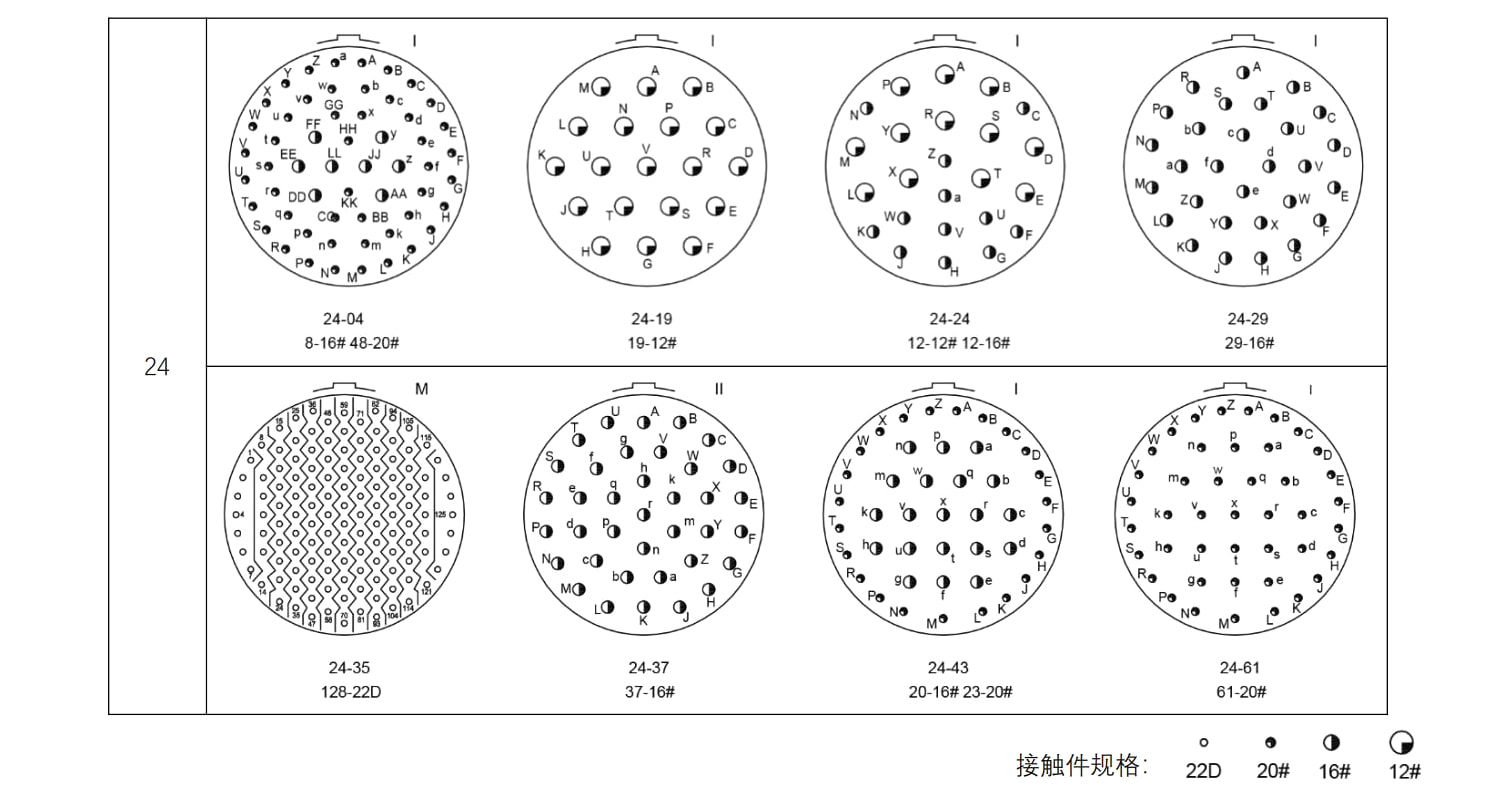

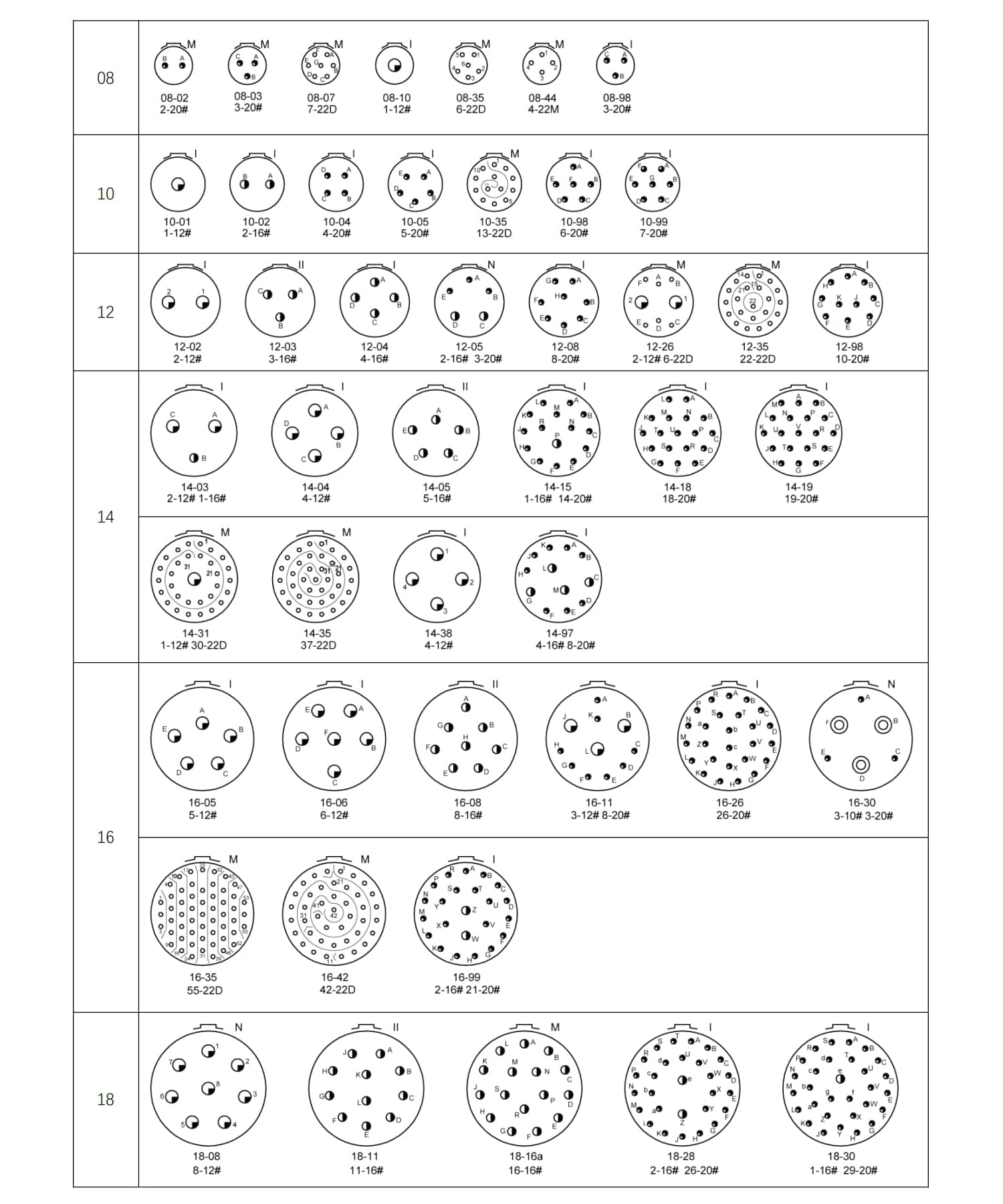

Contact arrangement (view of the insertion surface of the needle insulator)
