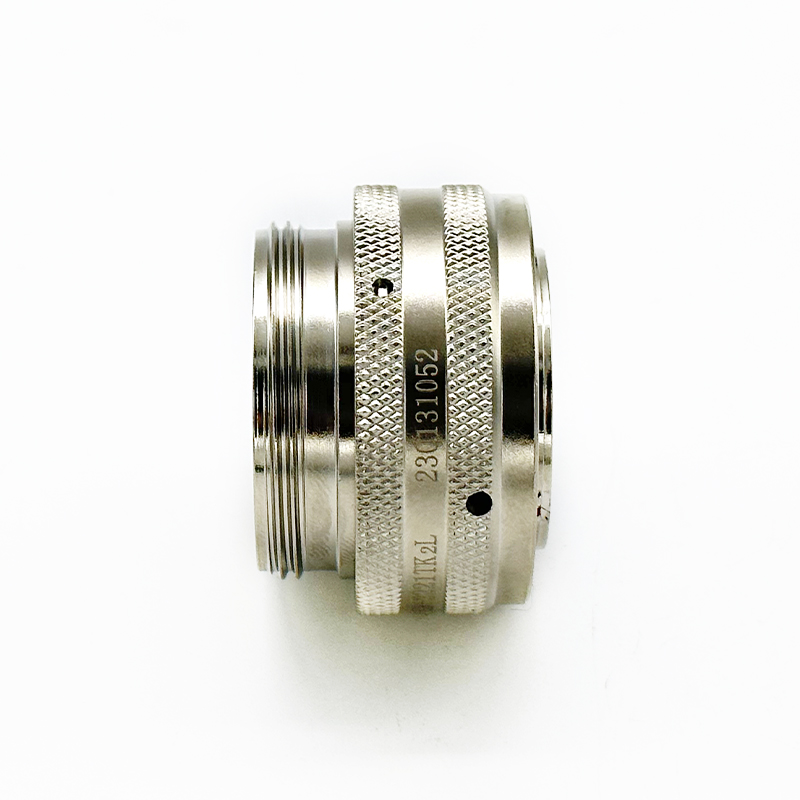

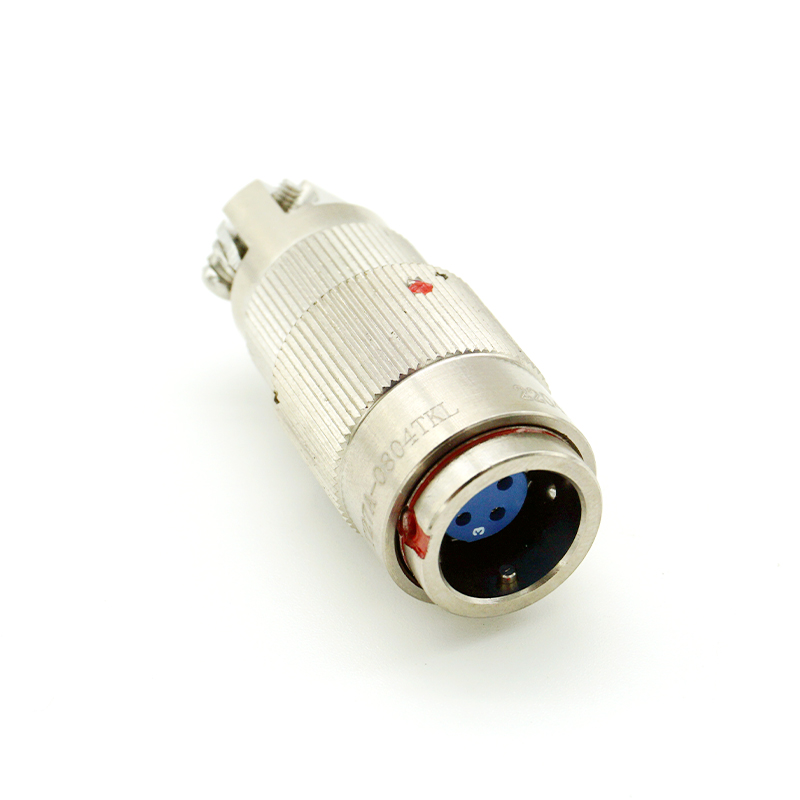

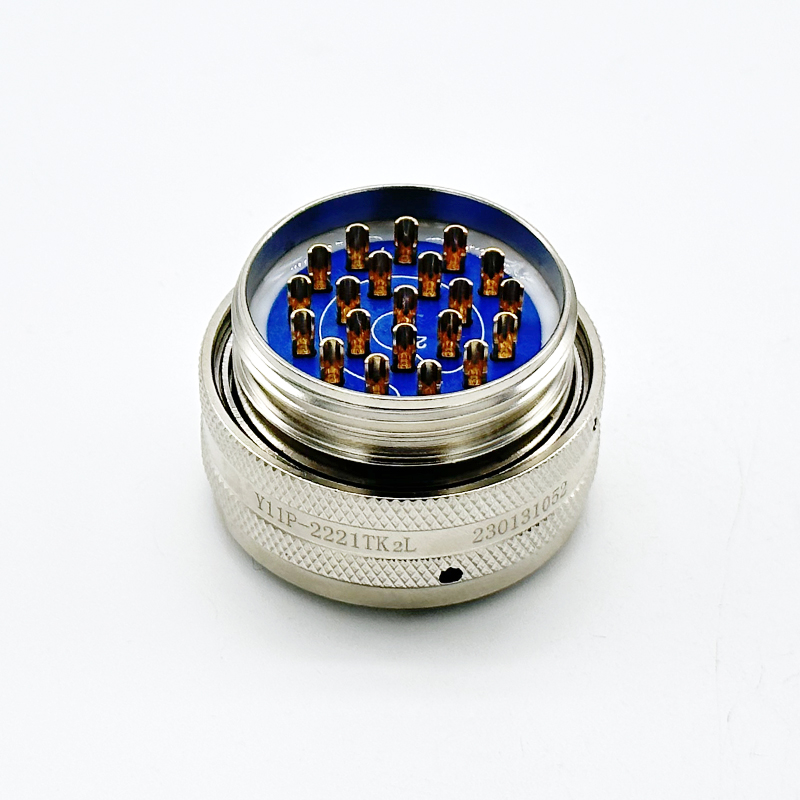

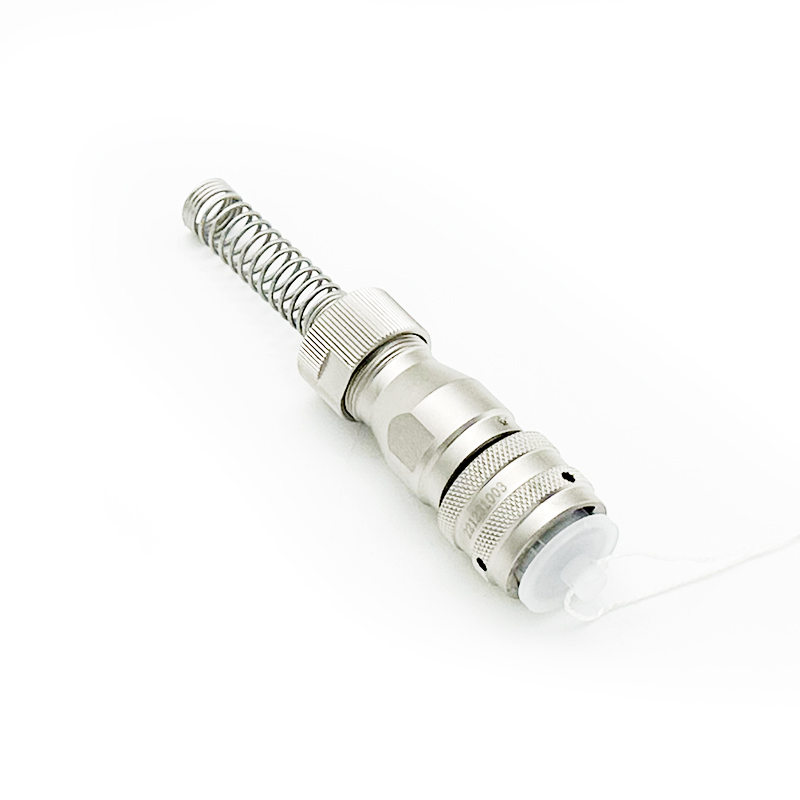

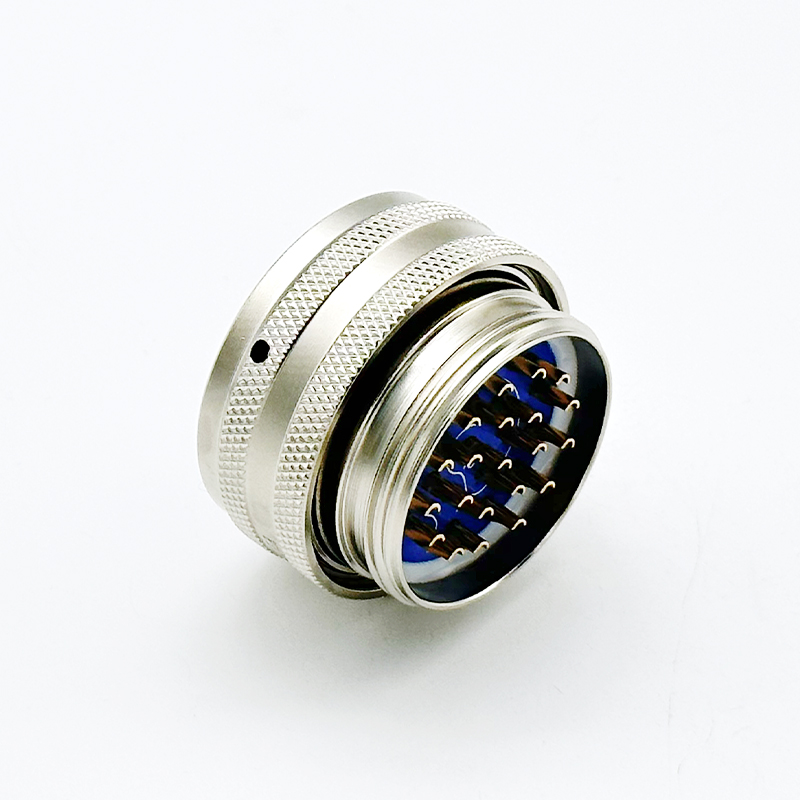

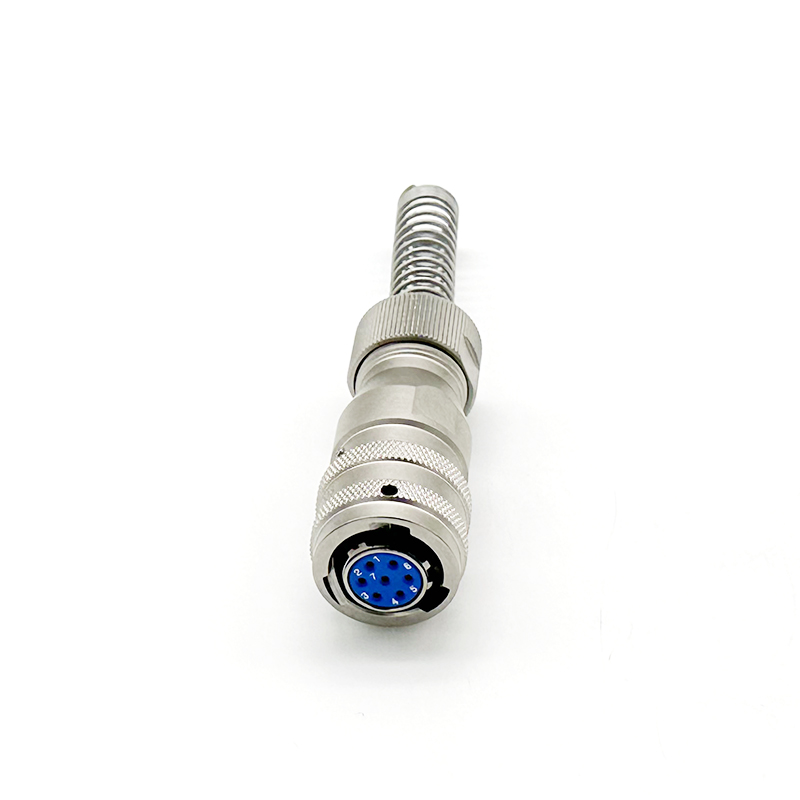

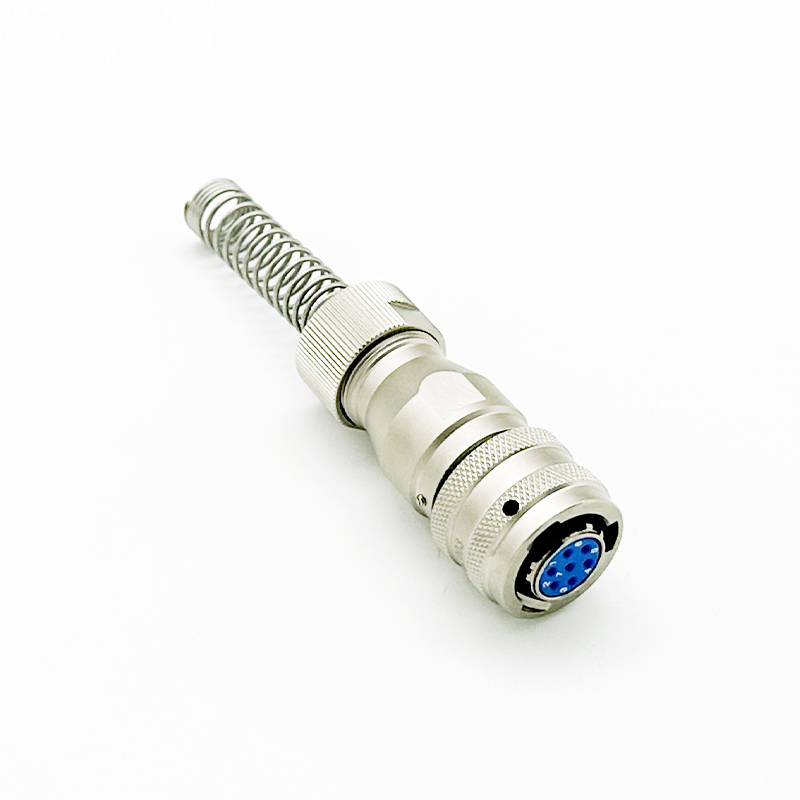

Y11 series-Circular Electrical Connector Manufacturers

Y11 series circular electrical connectors comply with the G.8101A-1997 standard and are suitable for strategic weapon systems. Aerospace satellite systems. Aviation and maritime transportation vehicles, ground transmitting and receiving systems, high-energy and high-heat industrial systems, communication and testing systems. Electrical signal connection for industrial and transportation power systems, etc.

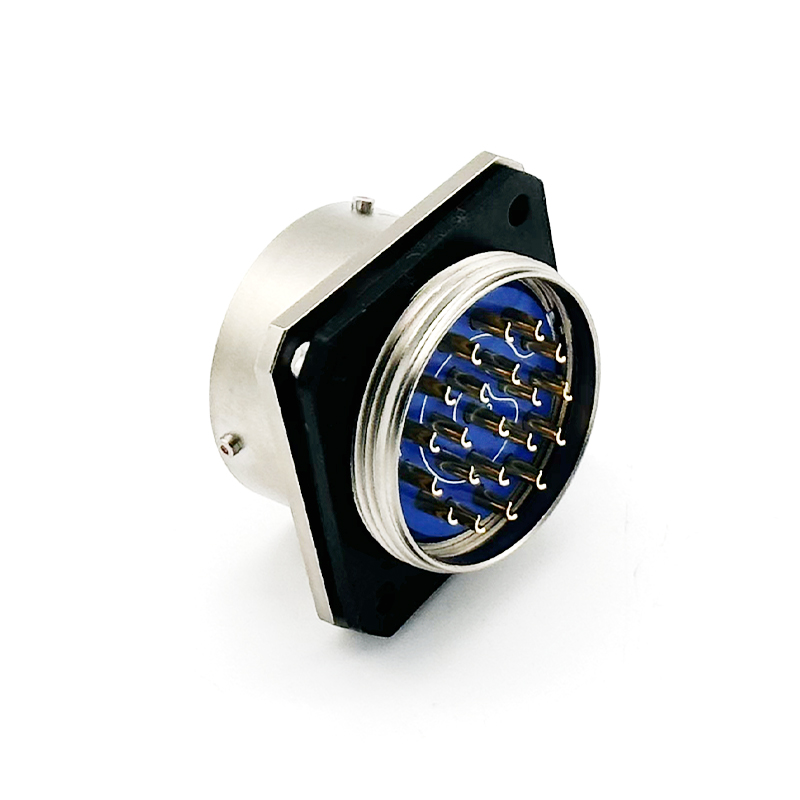

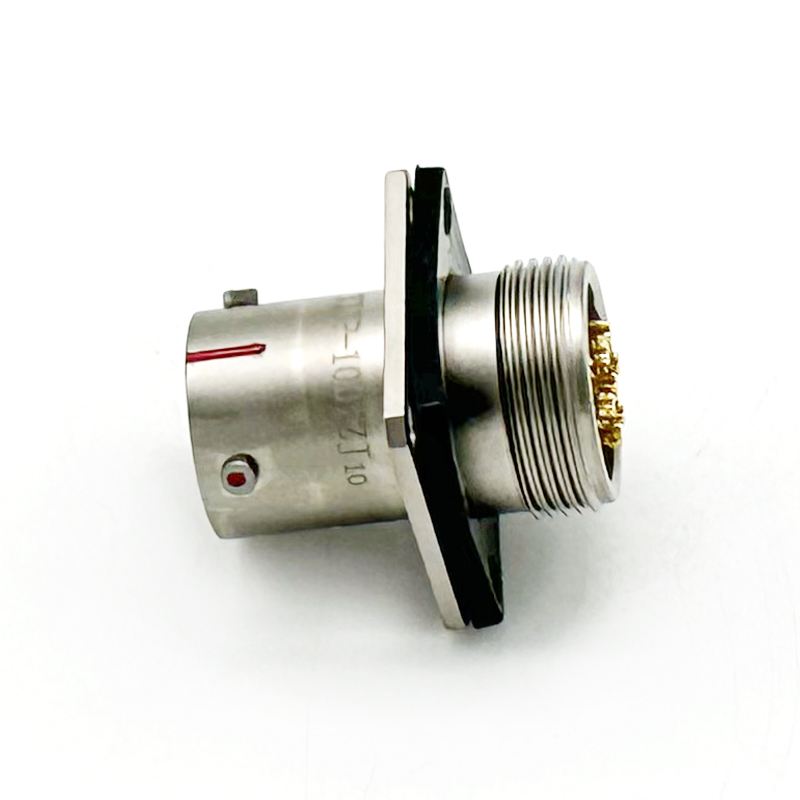

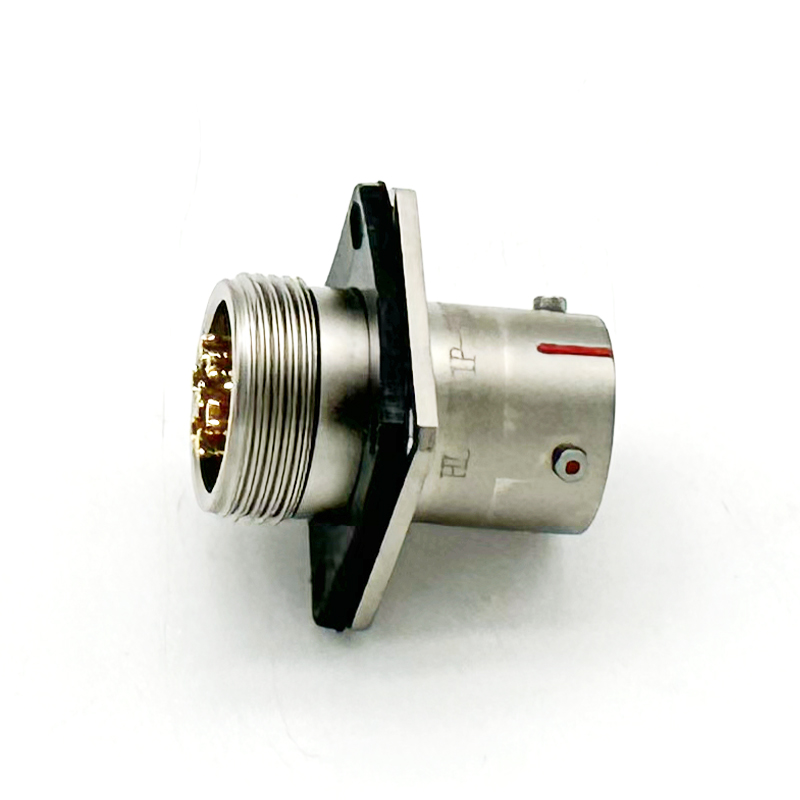

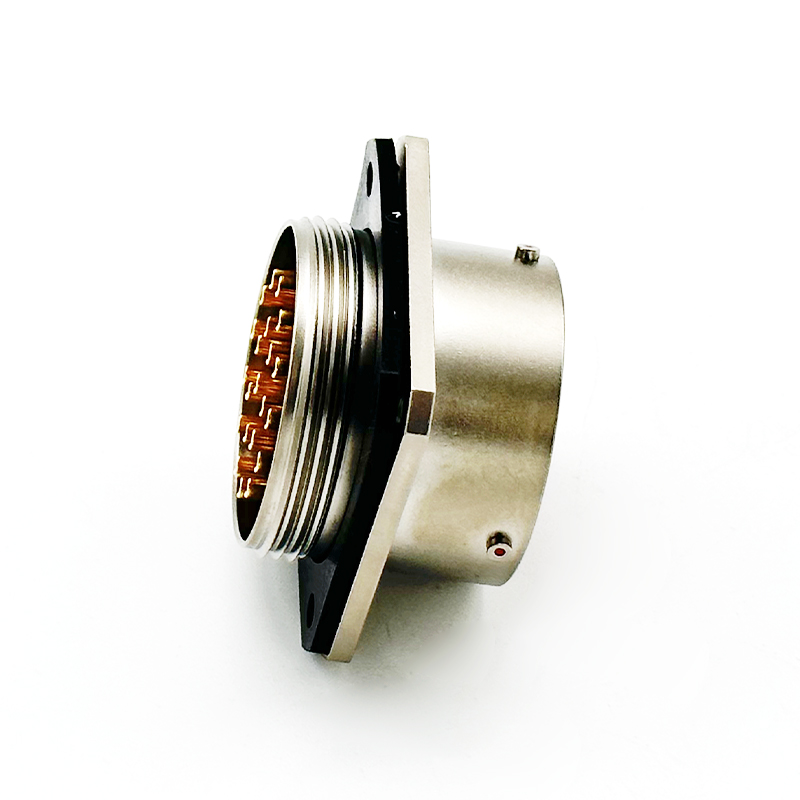

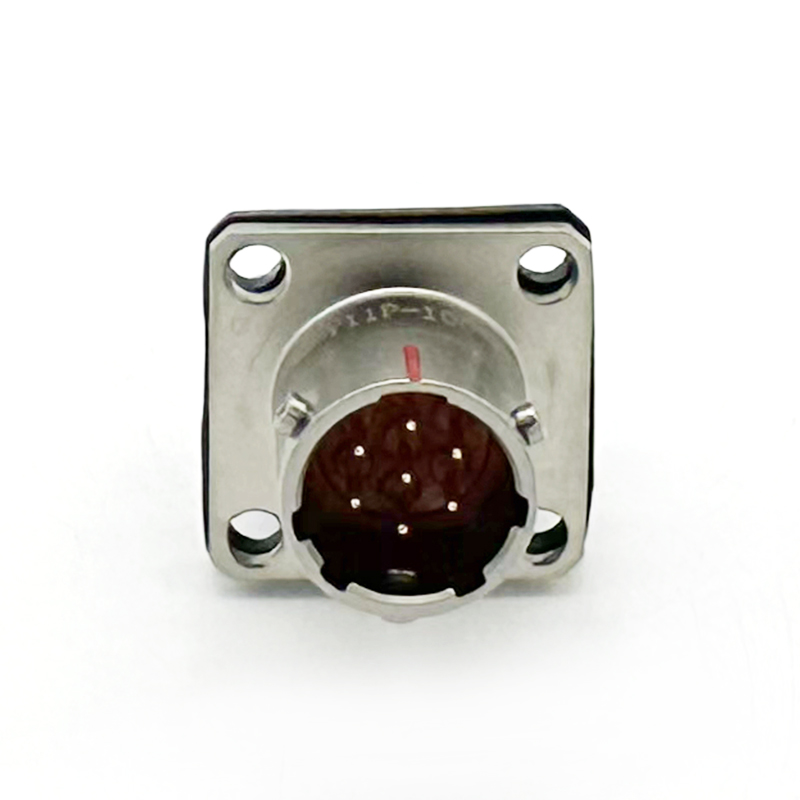

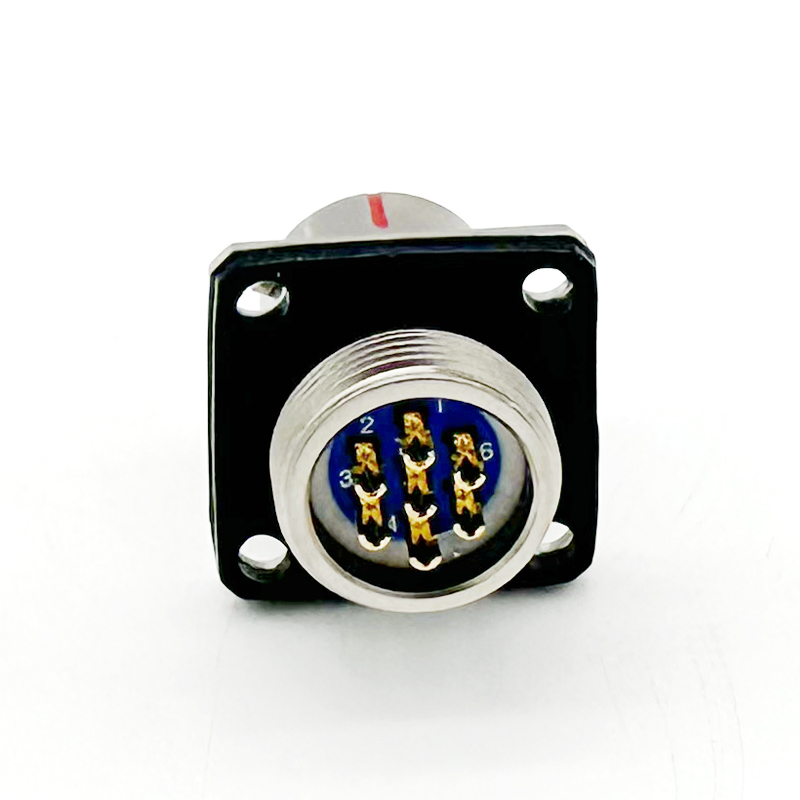

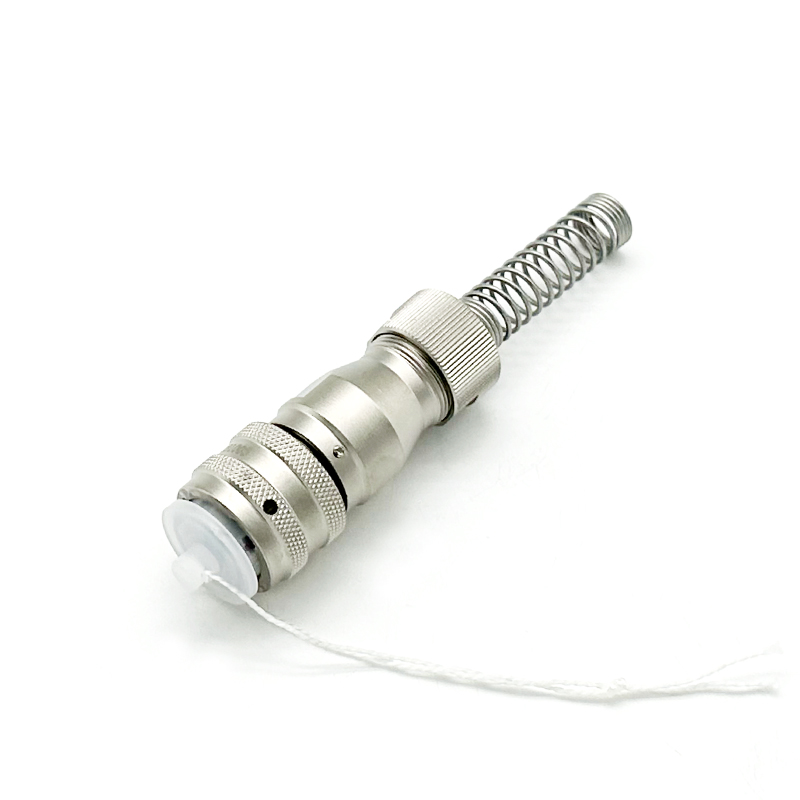

This product is equipped with quick connection and quick separation. An internal bayonet locking circular electrical connector with many advantages such as small size and light weight. The contacts are welded. The housings are available in shielded and non-shielded versions, with sealing, dustproof and rainproof properties. The installation methods include flange type, nut-tightening type, wall-through type, etc.

1. Use environmental conditions

Working temperature, -55℃~125℃

Relative humidity: 40±2℃

Relative humidity 90%~95%

Working air pressure: 101.33kPa-1.33Pa

Sine vibration: 10~50Hz, double amplitude 2mm

50~2000Hz acceleration 196m/s²

Random vibration: power spectrum density is 0.4G²/Hz

The rms value is 239,1 m/s²

Impact: acceleration 980m/s²

Rainproof: rainfall 5mm/min

Electrical continuity between shells: not greater than 0.20

Electrical continuity between shielded shells: not greater than 0.005Ω

Electromagnetic interference: minimum attenuation 45dB at 800 MHz

Sealing: 0.2Mpa

Mechanical life: plug and unplug ≥500 times



2.Main technical characteristics

Contact properties



Pin diameter (mm)

1

1.5

Working current (A)

5

10

Contact resistance (mΩ)

≤5

≤3



Insulation resistance



Standard atmospheric pressure

Humid conditions

Rain conditions

High temperature conditions

≥3000MΩ

≥20MΩ

≥20MΩ

≥500MΩ



Withstand voltage



Standard atmospheric conditions

Low pressure conditions

Hot and humid conditions

AC 1500Vrms

AC 200Vrms

AC 500Vrms

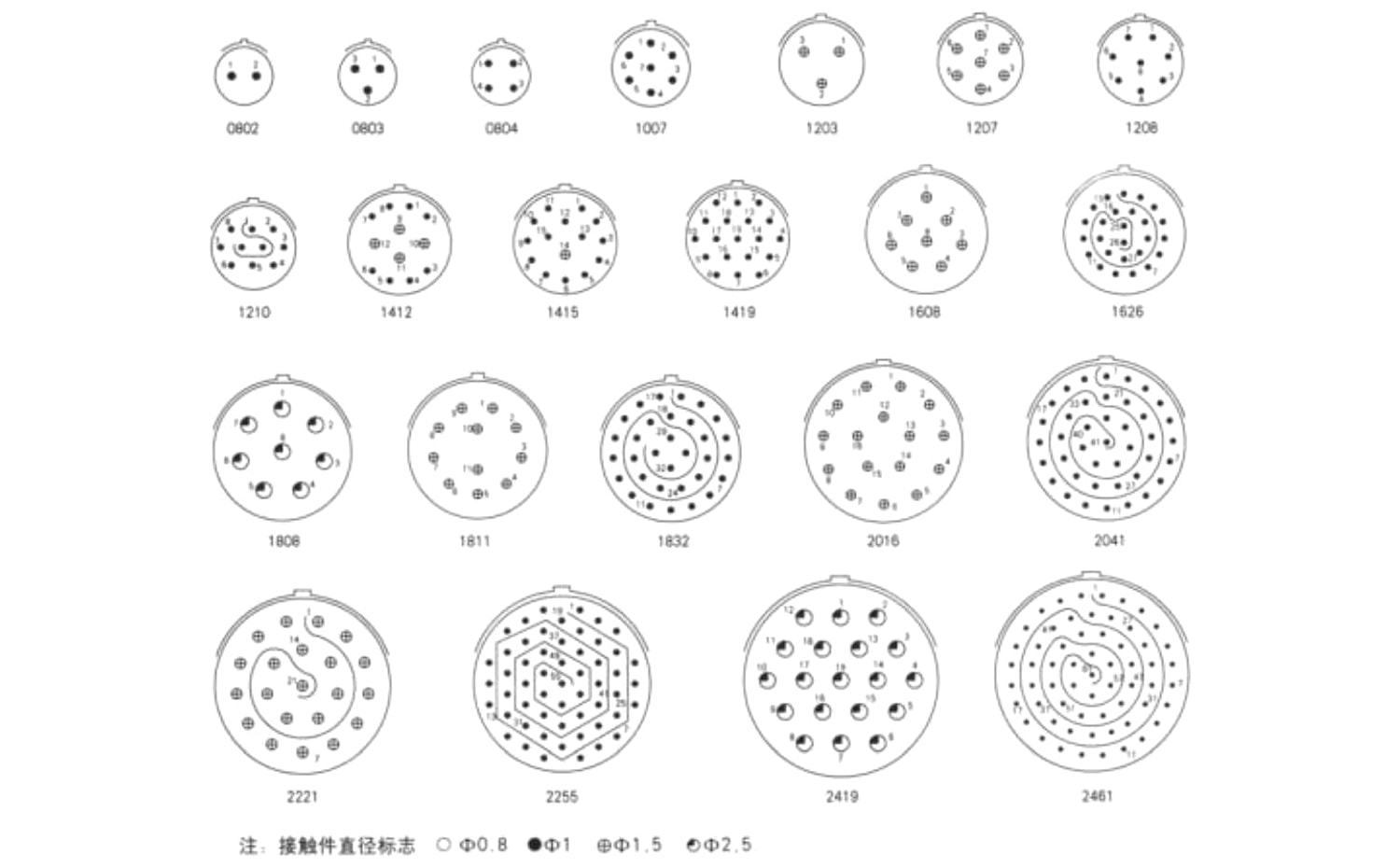

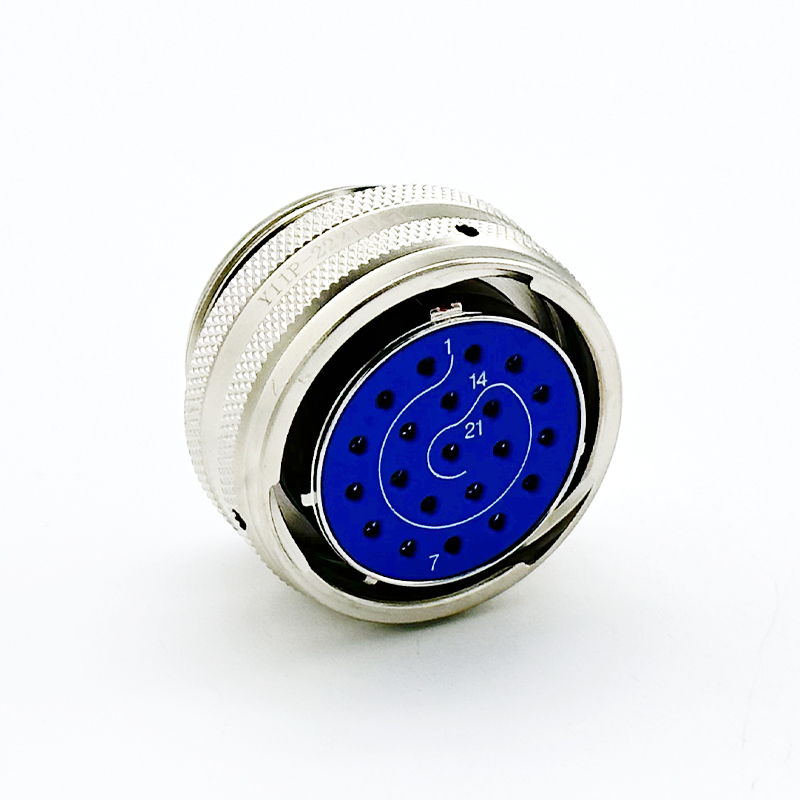

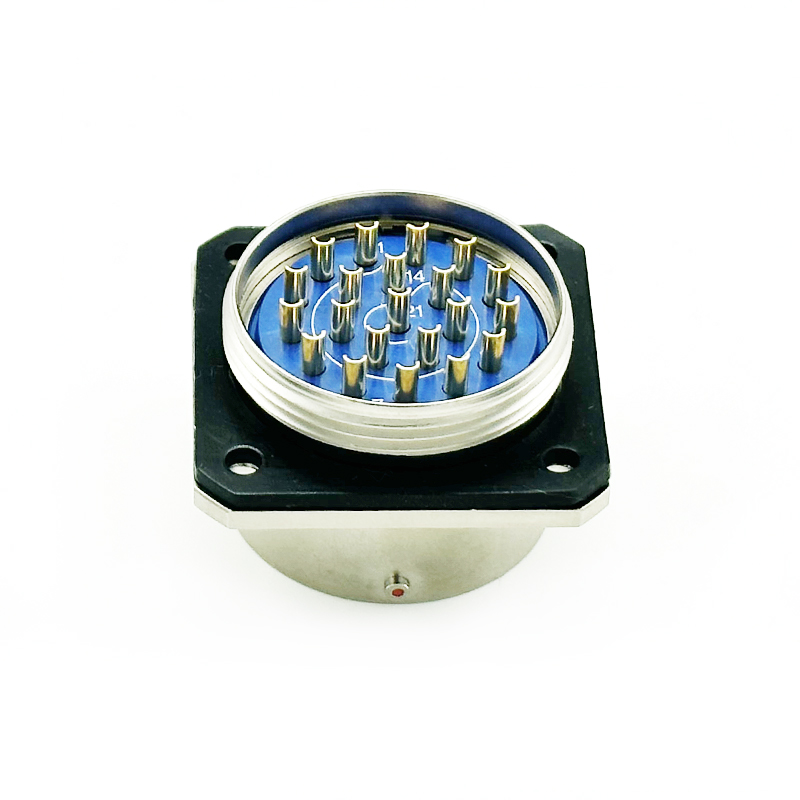

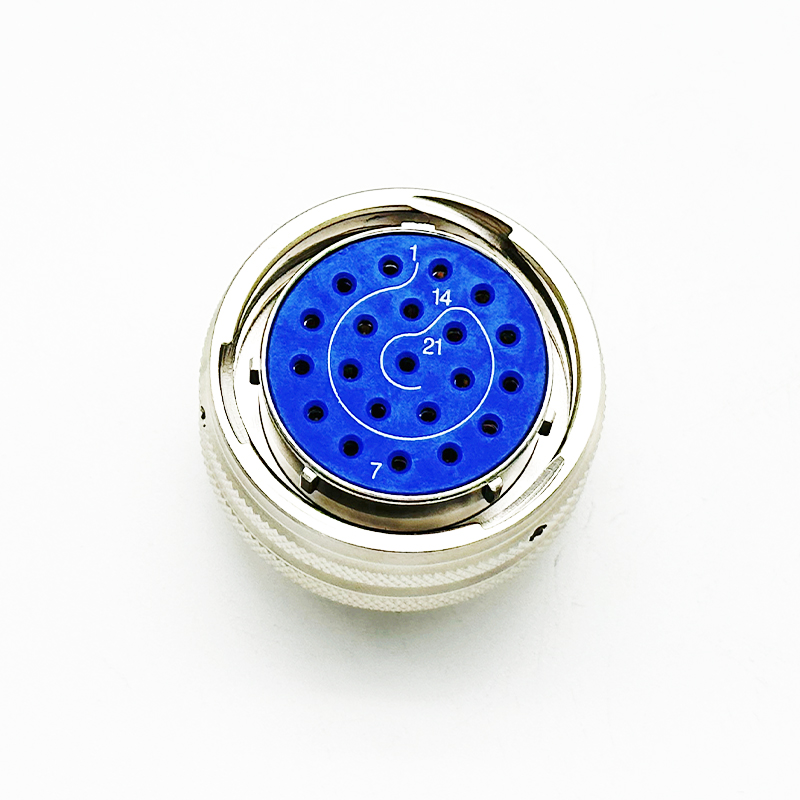

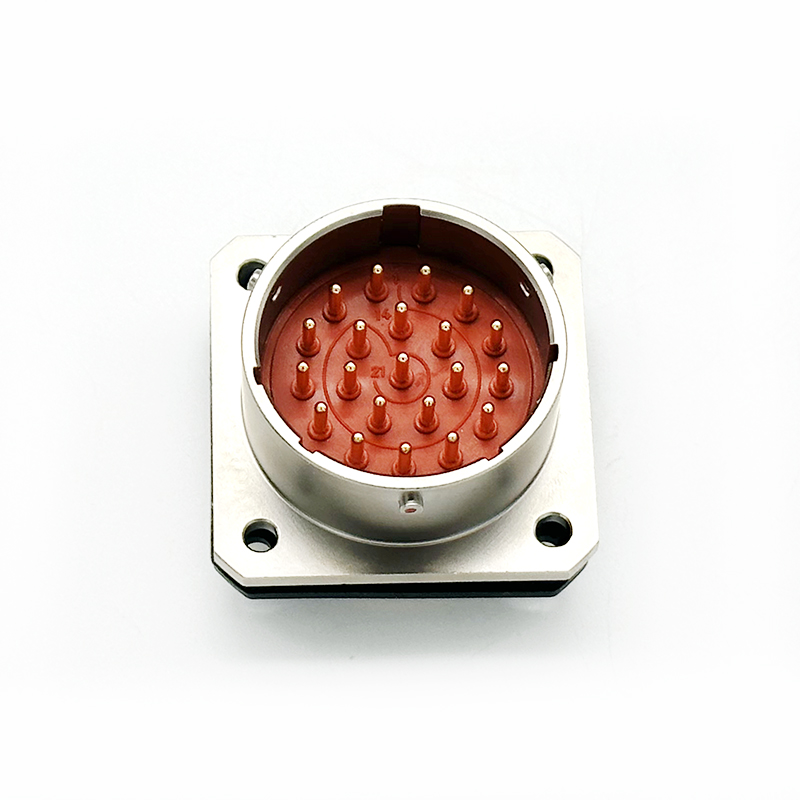

Contact arrangement (viewed from the needle surface)
