YMC series-Anti Water And Electricity Connectors Manufacturers

Product introduction

Bayonet type quick connection

Plug termination is crimp or solder, socket is solder

It adopts hyperboloid wire spring jack, soft insertion and extraction, small contact resistance plug, and the socket can be equipped with both pins and holes.

Five-button positioning with blind insertion and mis-insertion prevention functions

It is suitable for equipment and cables in harsh environments such as moisture and water immersion.

The electrical connection between cables can withstand 55 meters of water depth sealing.

Implementation standard: Q/321283HL05-2011

Technical parameters

【Environmental performance】

——Using temperature: -55℃~+200℃

——Relative temperature: 95% at 60℃

——Sealing performance: water flooding depth 0~55 meters

——Salt spray resistance: 1000 hours for stainless steel: 500 hours for copper alloy; 48 hours for aluminum alloy

——The electrical connector also has good resistance to salt spray.

Protection against sand and dust. Anti-fungal properties.

【Mechanical properties】

——Casing: stainless steel passivation, copper electroless nickel plating or aluminum electroless nickel plating

——Insulator: thermosetting material

——Sealing body and sealing ring: silicone rubber

——Contacts: gold-plated copper alloy

——Vibration: Frequency 10~2000Hz Acceleration: 196m/s²

——Impact: acceleration 980m/s

——Constant acceleration: 980m/s

——Mechanical life: 1000 times

[Electrical performance]

——Contact resistance and rated current



Contact specifications mm

Contact resistance mΩ

Rated current A

Welding wire barrel inner diameter

Φ1.0

5

5

Φ1.2

ΦI.5

2.5

10

Φ1.8

Φ2.0

1.25

20

Φ2.5

Φ3.0

0.75

40

Φ3.0



——Rated voltage, withstand voltage and insulation resistance



Working environment

Rated voltage V

Withstand voltage V

Insulation resistance MΩ

Normal temperature state

500

1500

≥5000

Hot and humid state

500

1125

≥100

Low pressure conditions (1KPa)

250

300

-



——Anti-electromagnetic interference shielding: at 100MHz~1GHz, the minimum attenuation is 60dB.

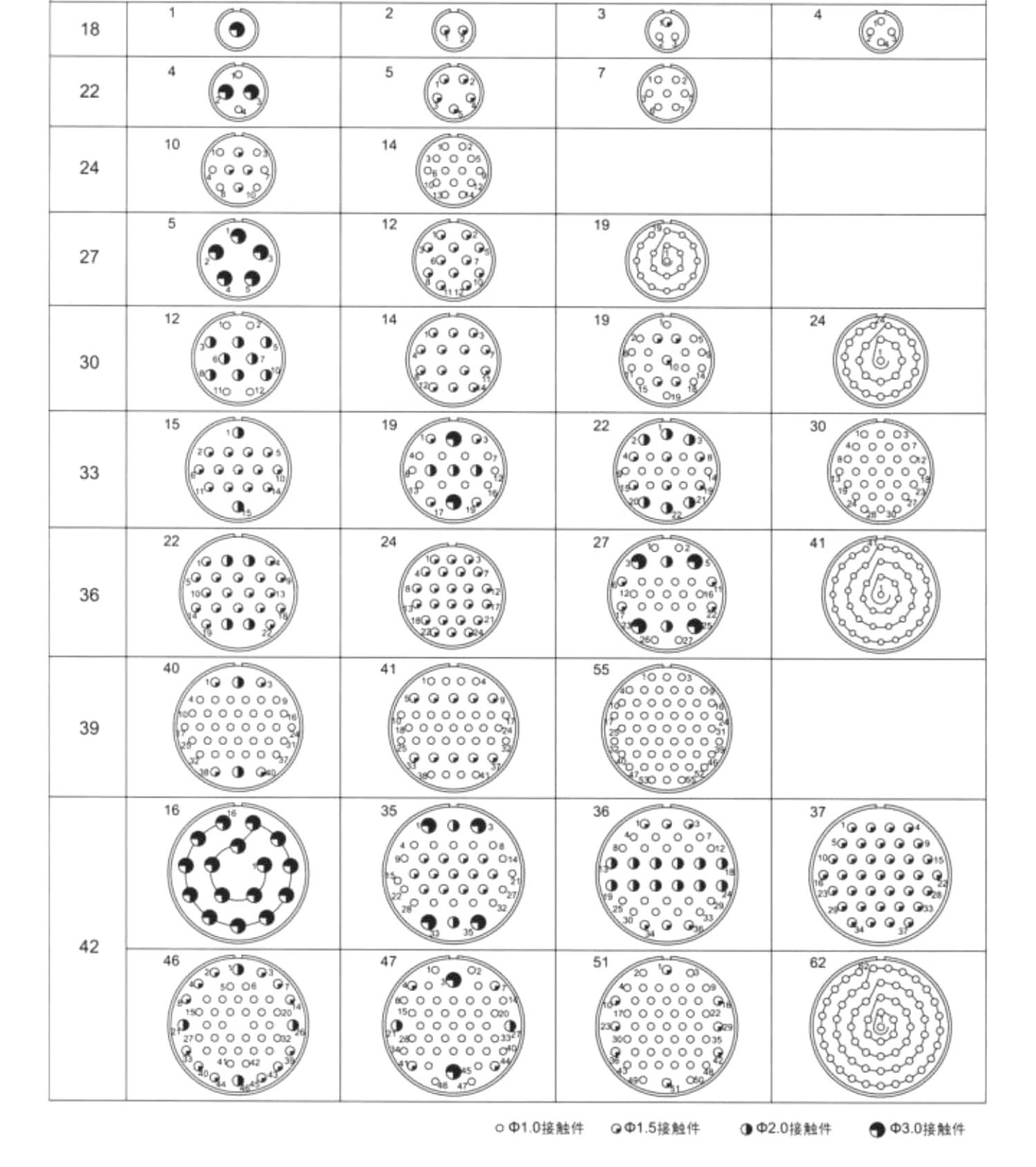

YMC series contact arrangement (view of needle mounted insulator insertion surface)
