YMG series-Anti Water And Electricity Connectors Manufacturers

Product introduction

● Bayonet type quick connection

● Plugs and sockets can be equipped with pins or holes, and the termination method is welding.

● Using hyperboloid wire spring jack, soft insertion and extraction, low contact resistance

● Five-button positioning with blind insertion and mis-insertion prevention functions

● Sealed against rain

● Implementation standards:Q/321283HL05-2011



Technical parameters

【Environmental performance】

——Using temperature: -55℃-+200℃

——Relative temperature: 95% at 60℃

——Salt spray resistance: 1000 hours for stainless steel; 500 hours for copper alloy: 48 hours for aluminum alloy

——The electrical connector also has good resistance to mold and rain. Anti-sand and dust properties.

【Mechanical properties】

——Casing: Stainless steel passivation, copper electroless nickel plating. Aluminum electroless nickel plating

——Insulator: thermoset material

——Sealing body and sealing ring: silicone rubber

——Contacts: Copper alloy gold-plated

——Vibration: Frequency 10~2000Hz Acceleration: 196m/s²

——Impact: acceleration 980m/s²

——Constant acceleration: 980m/s²

——Mechanical life:≥1000 times

【Electrical performance】

——Contact resistance and rated current



Contact specifications

Contact resistance mΩ

Rated current A

Welding wire barrel inner diameter

Φ0.635

25

1

Φ0.7

Φ1.0

5

5

Φ1.2

Φ1.5

2.5

10

Φ1.8

Φ2.0

1.25

20

Φ2.5

Φ3.0

0.75

40

Φ3.0



—— Rated voltage, withstand voltage and insulation resistance



Working environment

Rated voltage V

Withstand voltage V

Insulation resistance MΩ

Normal temperature state

500

1500

≥5000

Hot and humid state

500

1125

≥100

low pressure conditions (1KPa)

250

300





—— Anti-electromagnetic interference shielding: at 100MHz~1GHz, the minimum attenuation is 60dB.

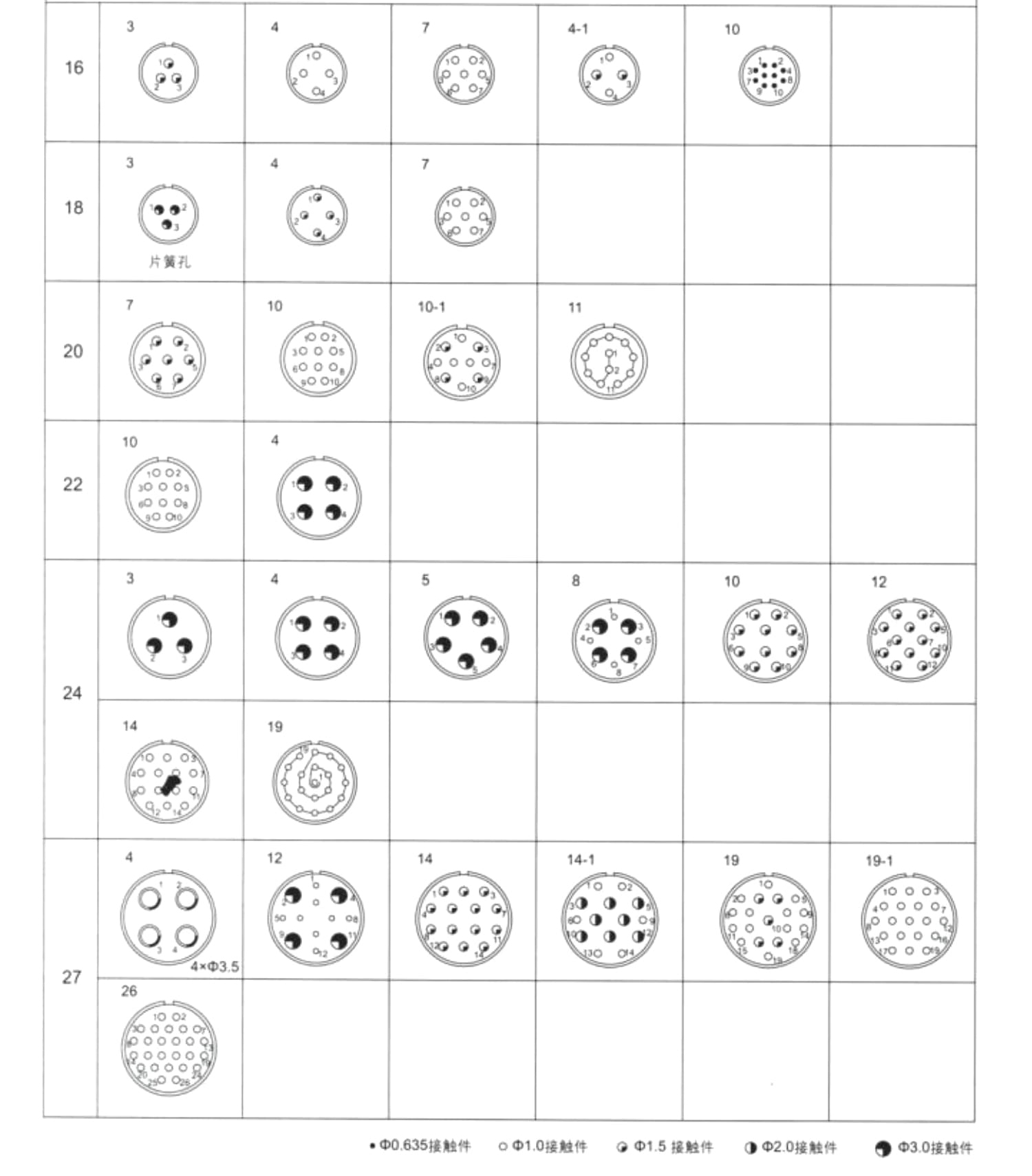

YMG series contact arrangement (view of needle mounted insulator insertion surface)

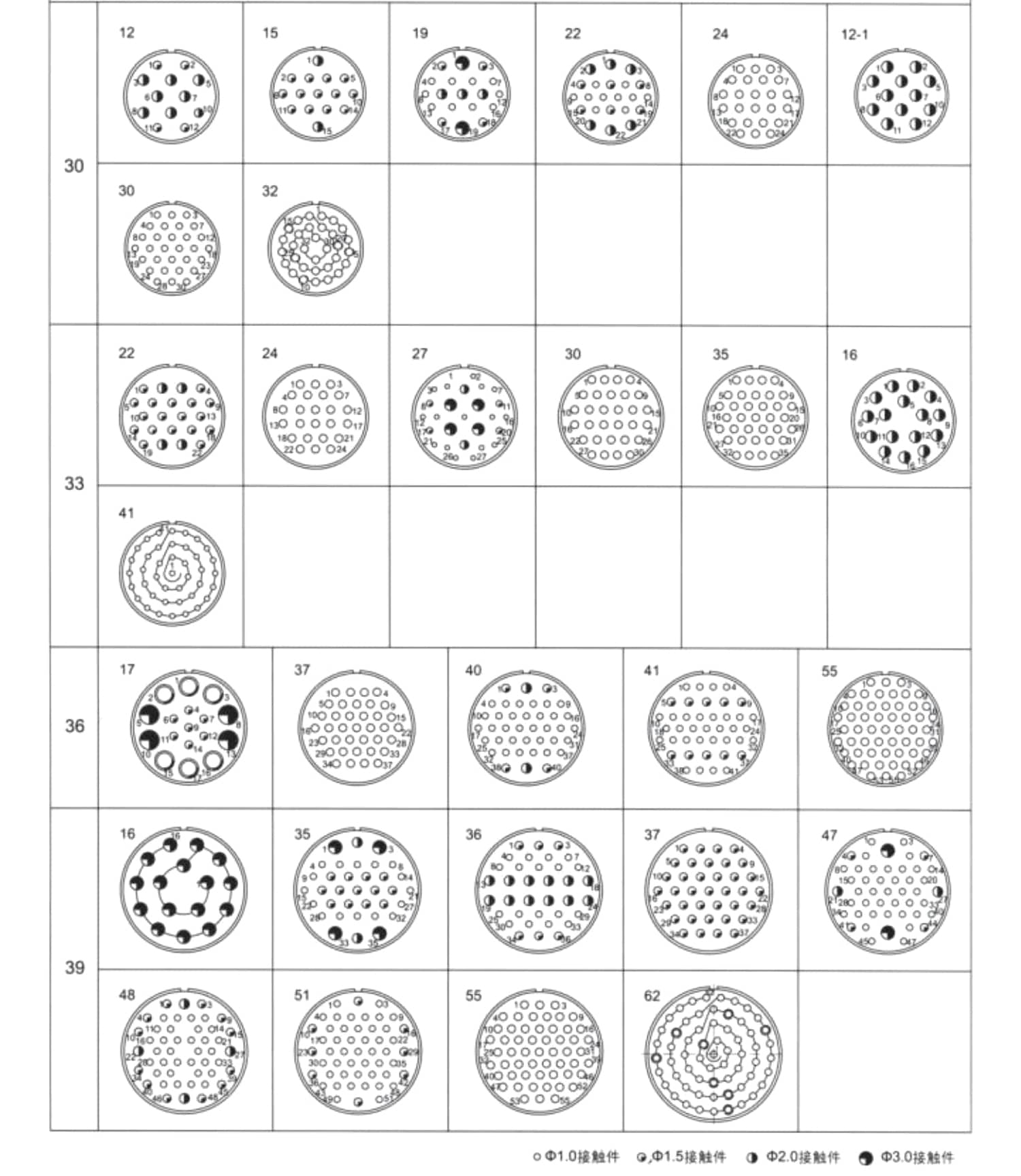

YMG series contact arrangement (view of needle mounted insulator insertion surface)
