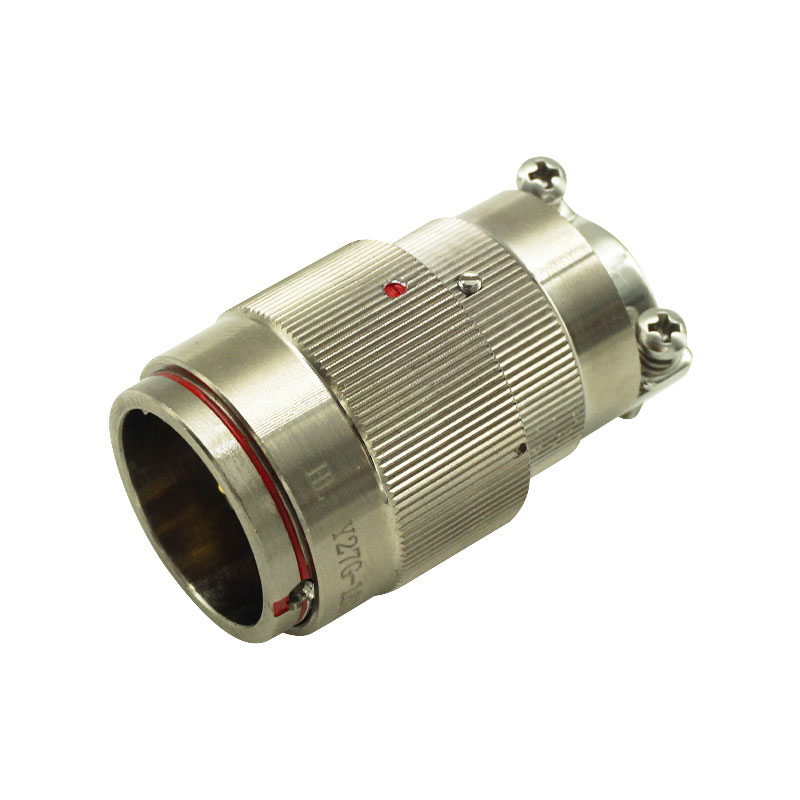

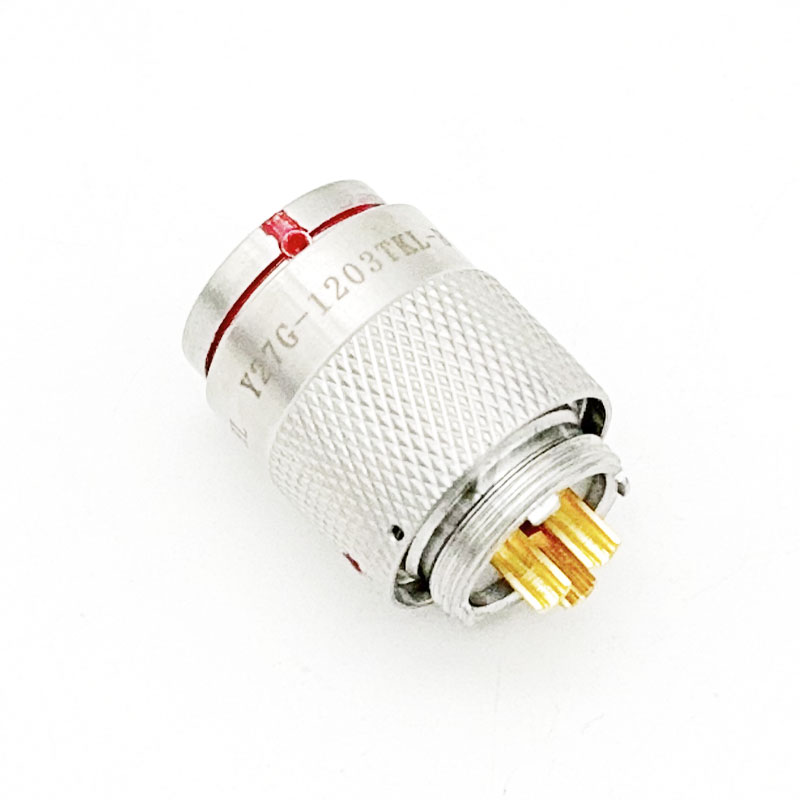

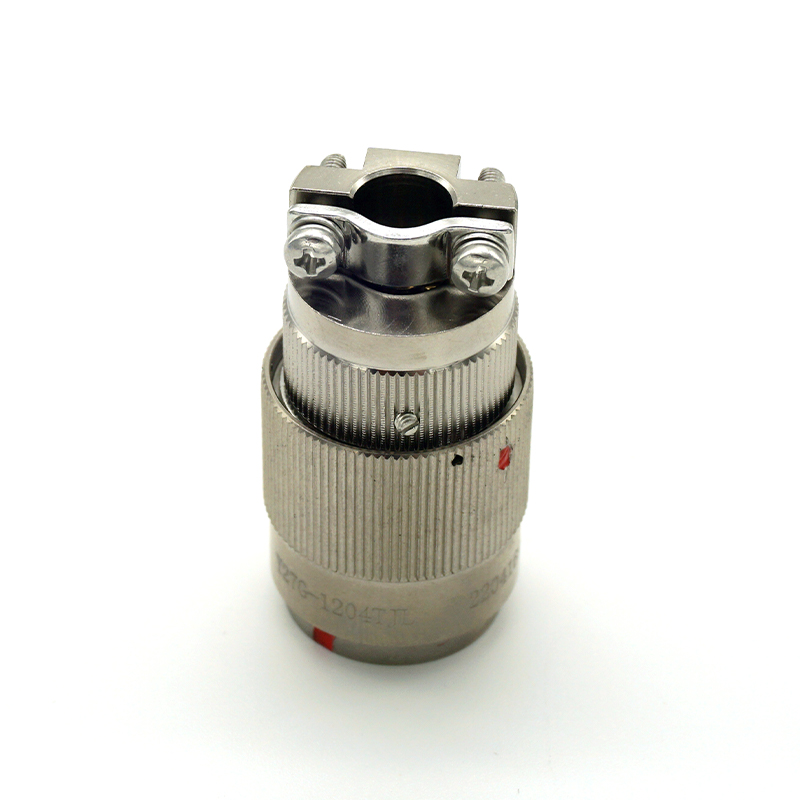

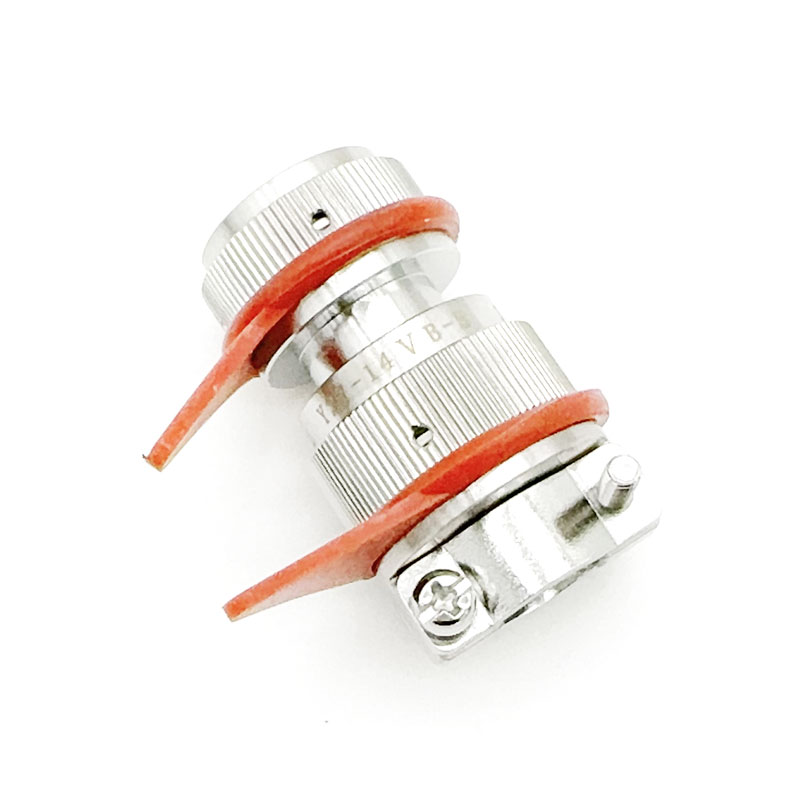

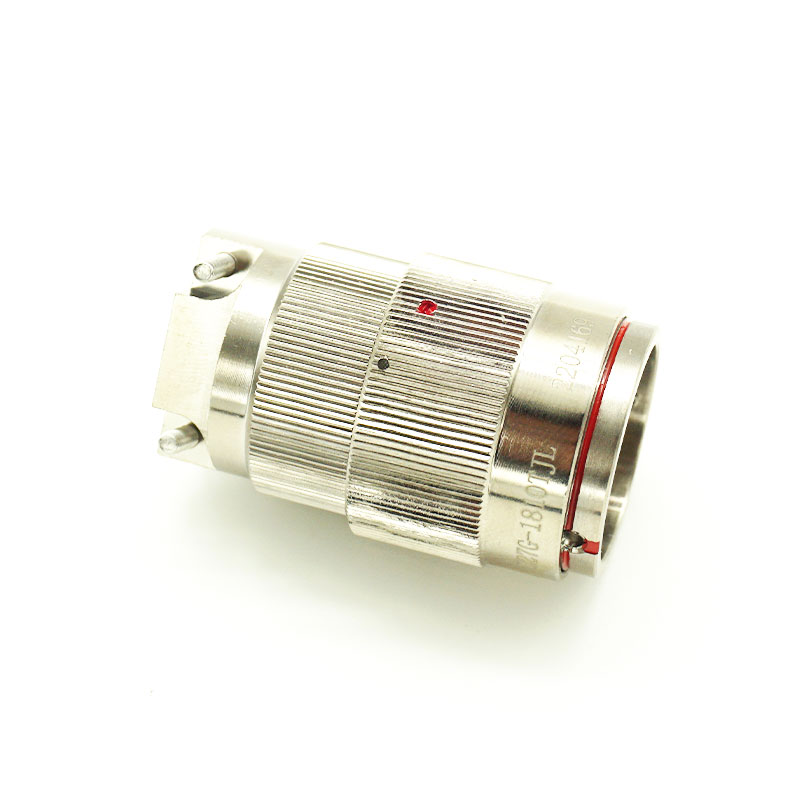

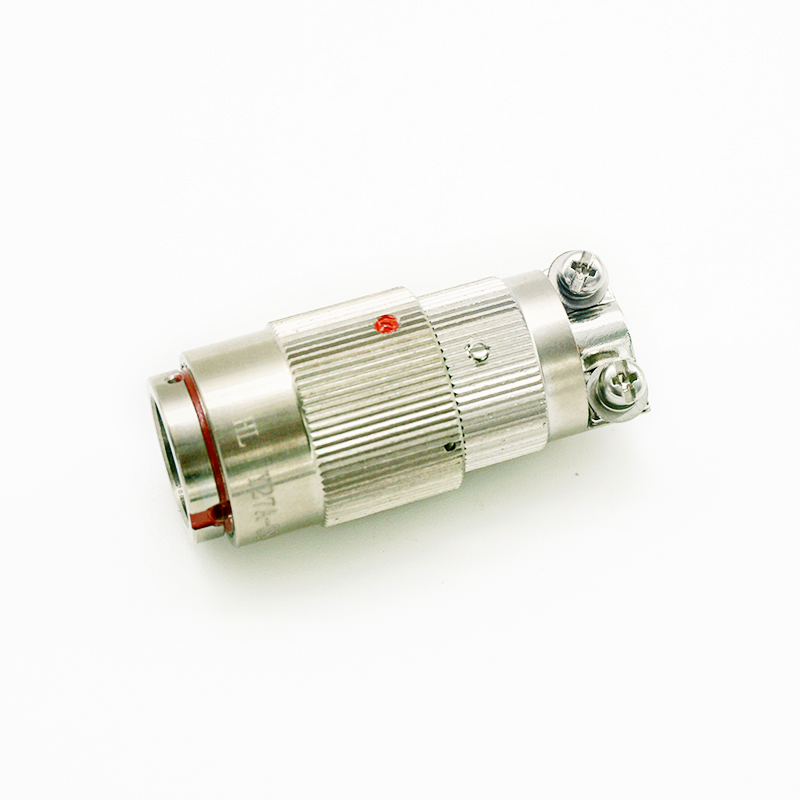

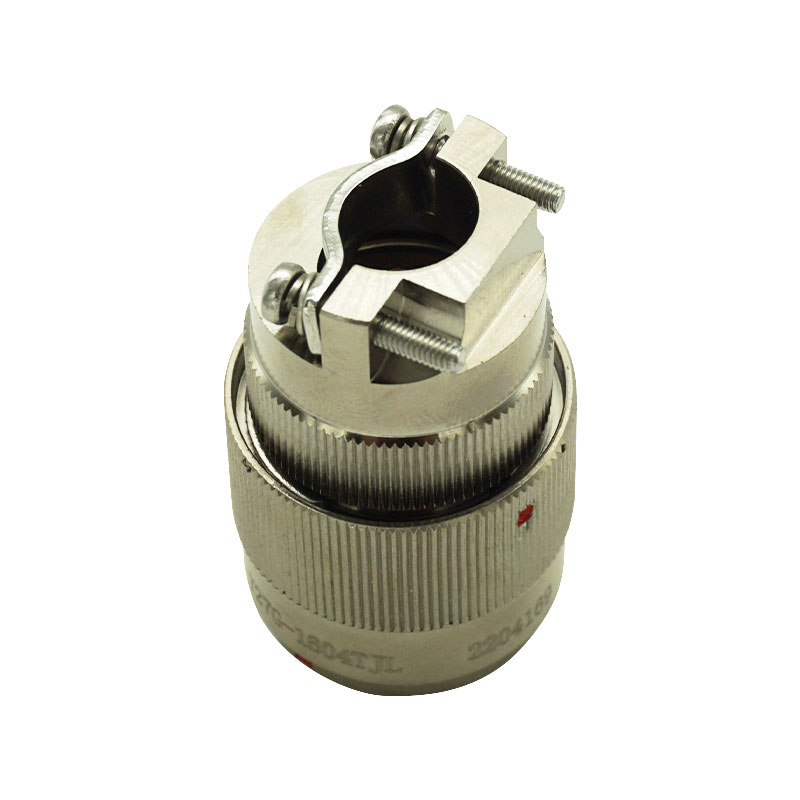

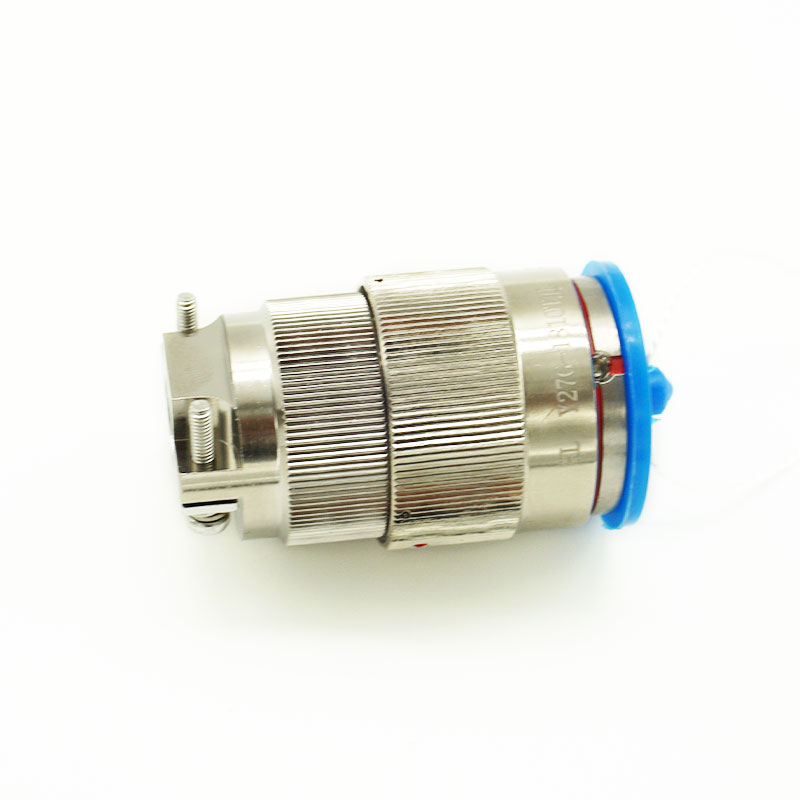

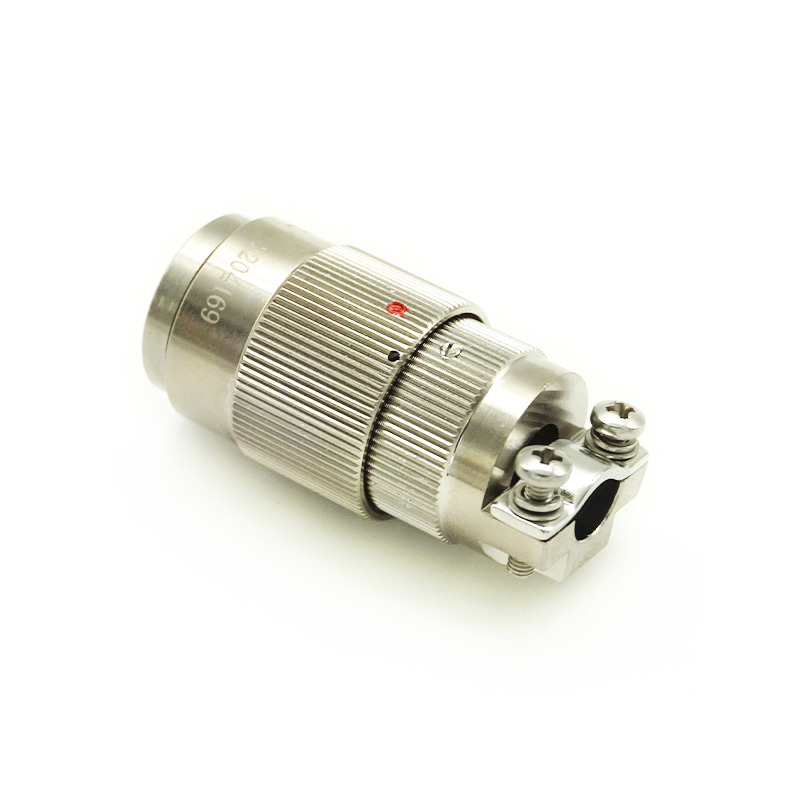

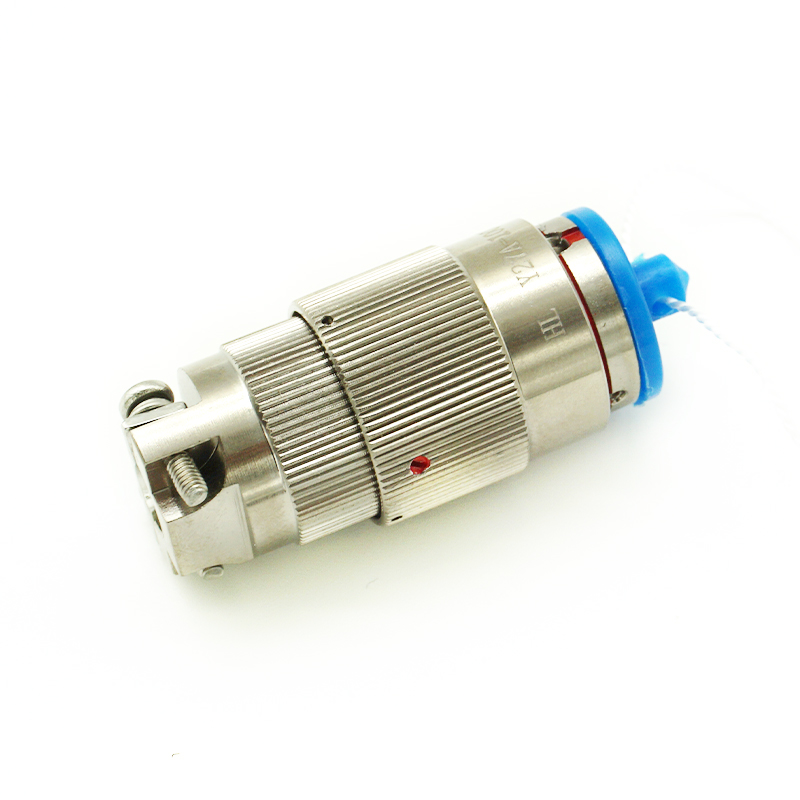

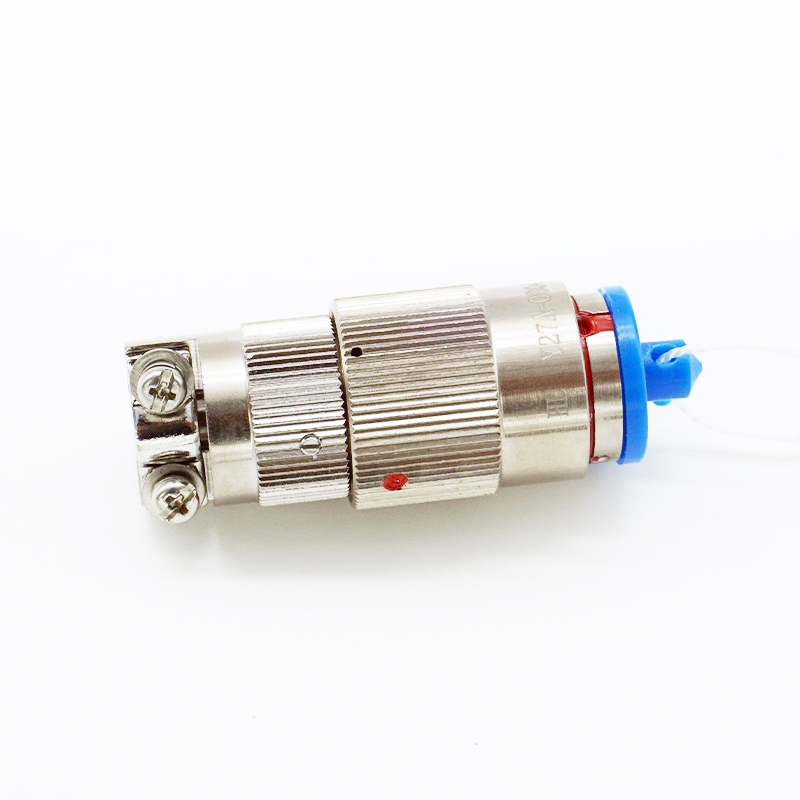

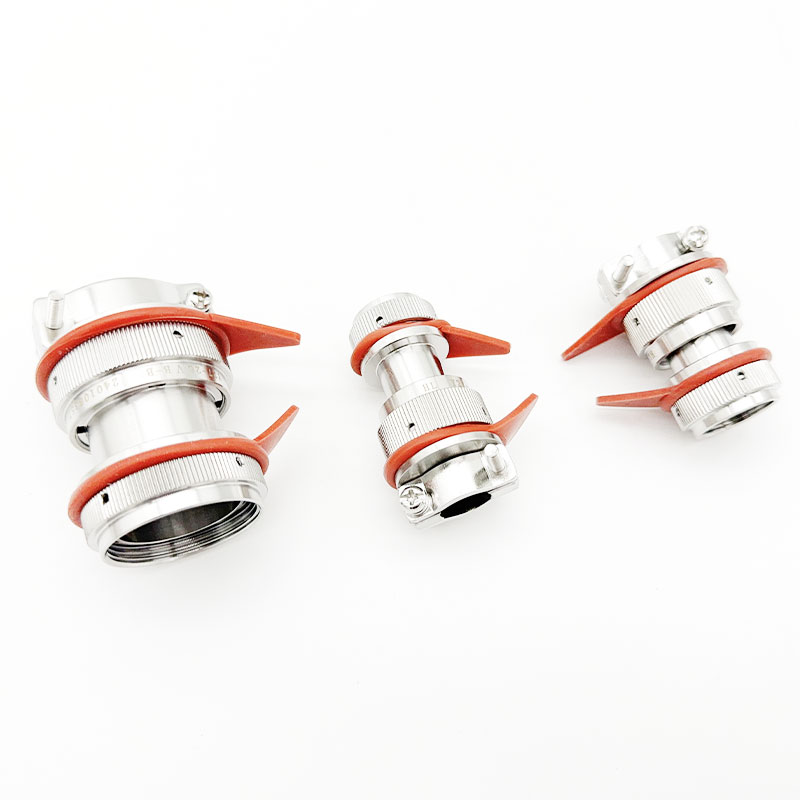

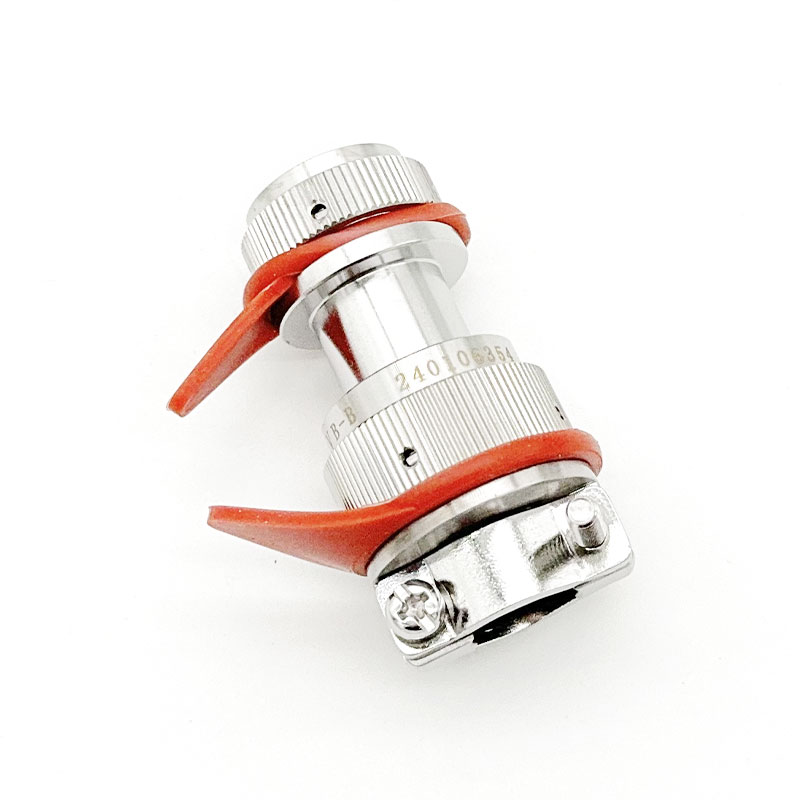

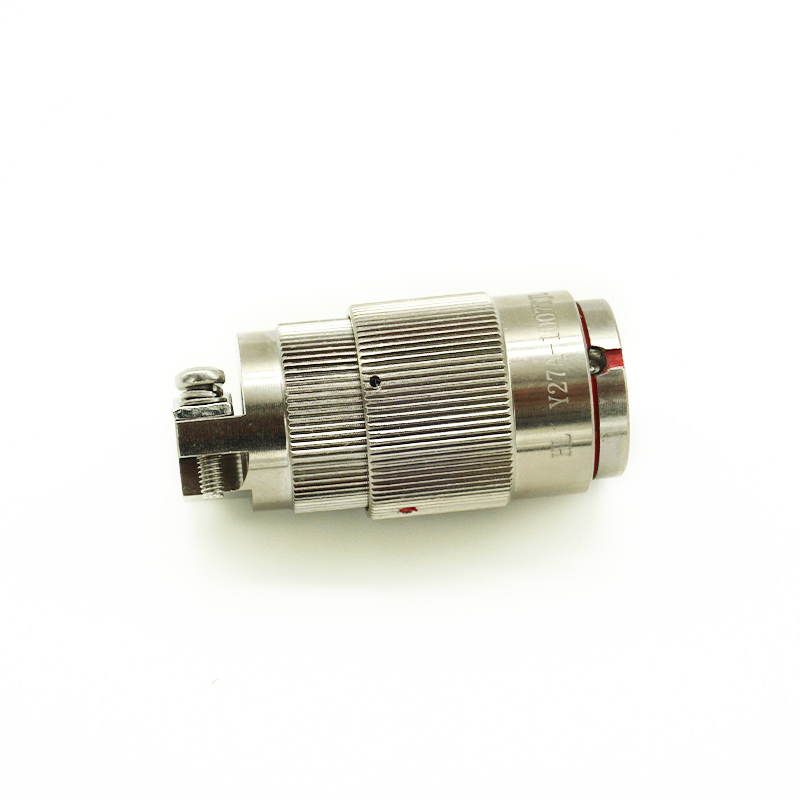

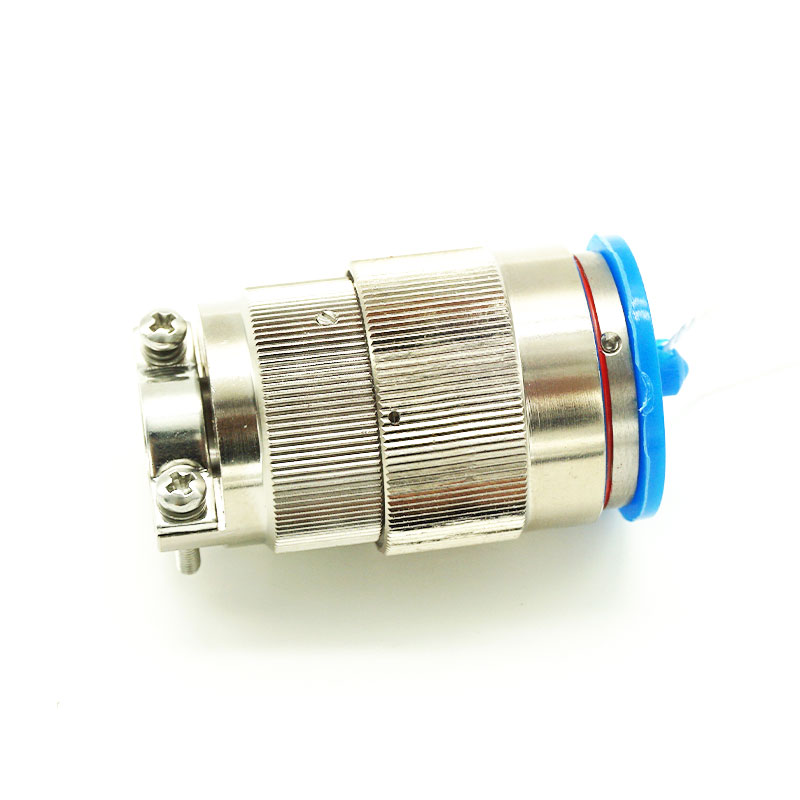

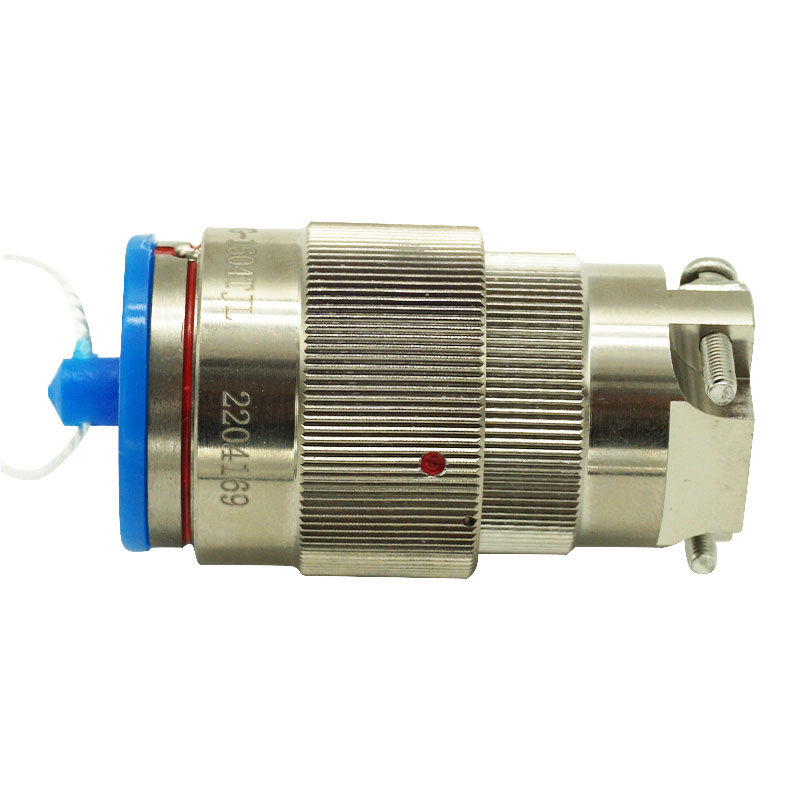

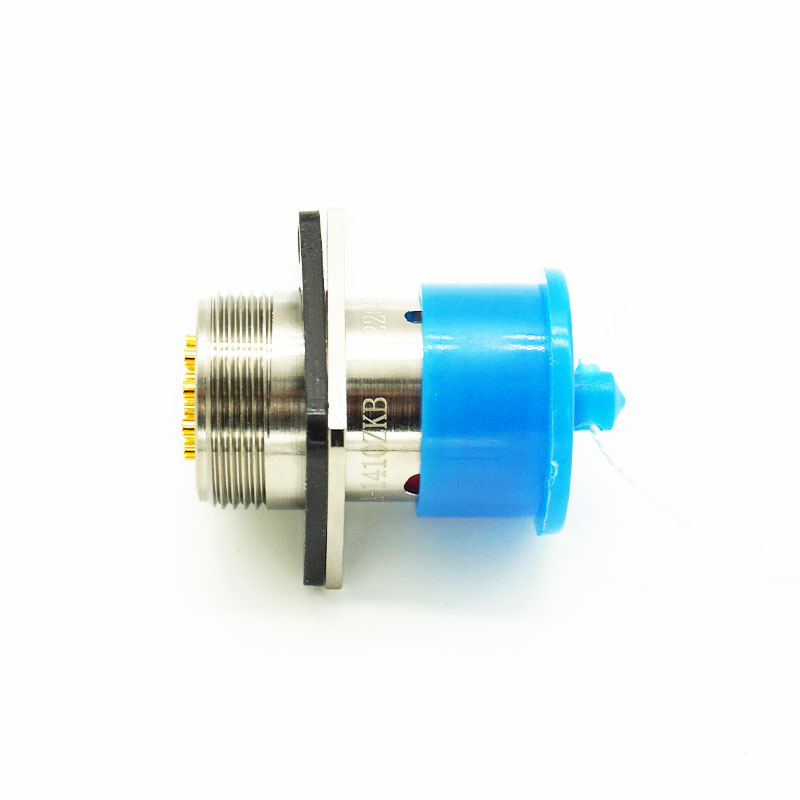

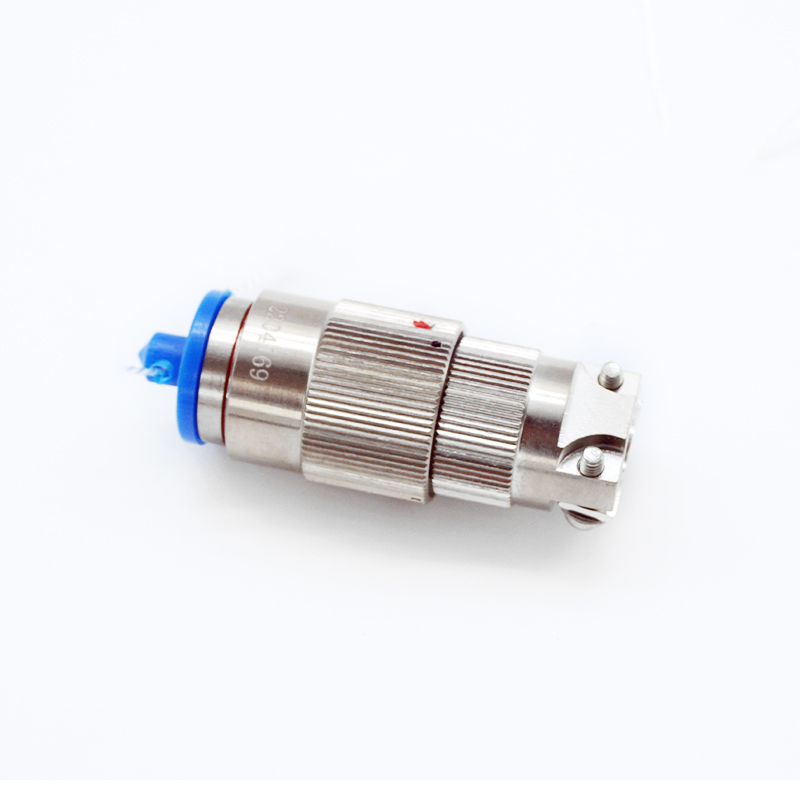

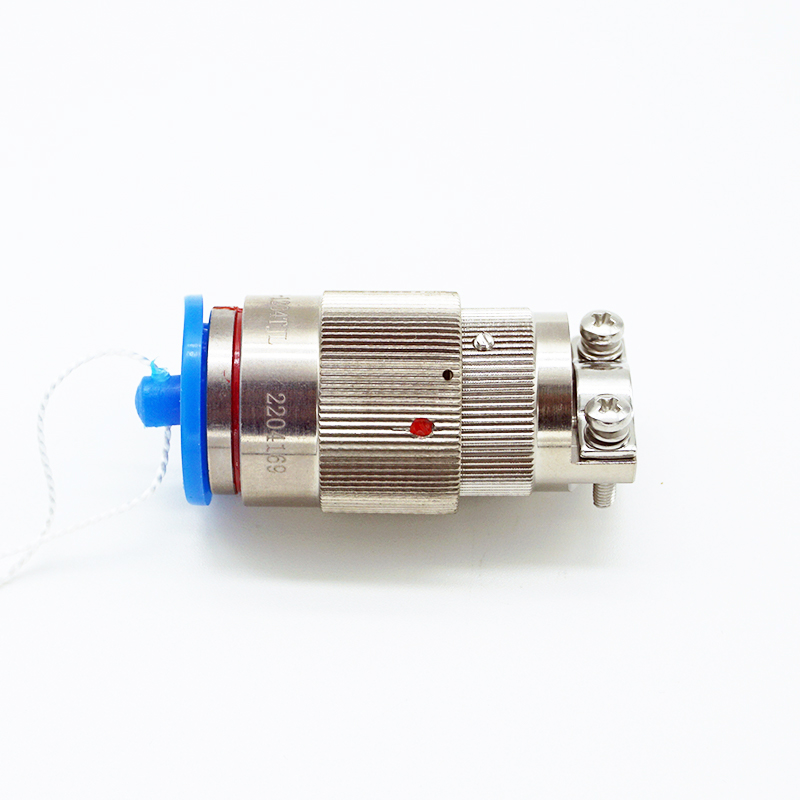

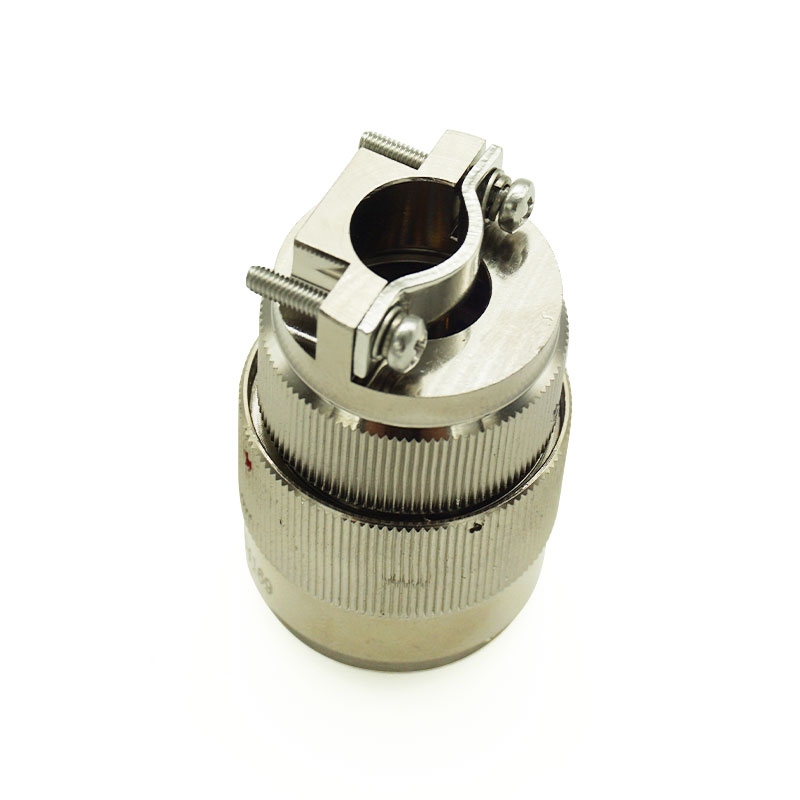

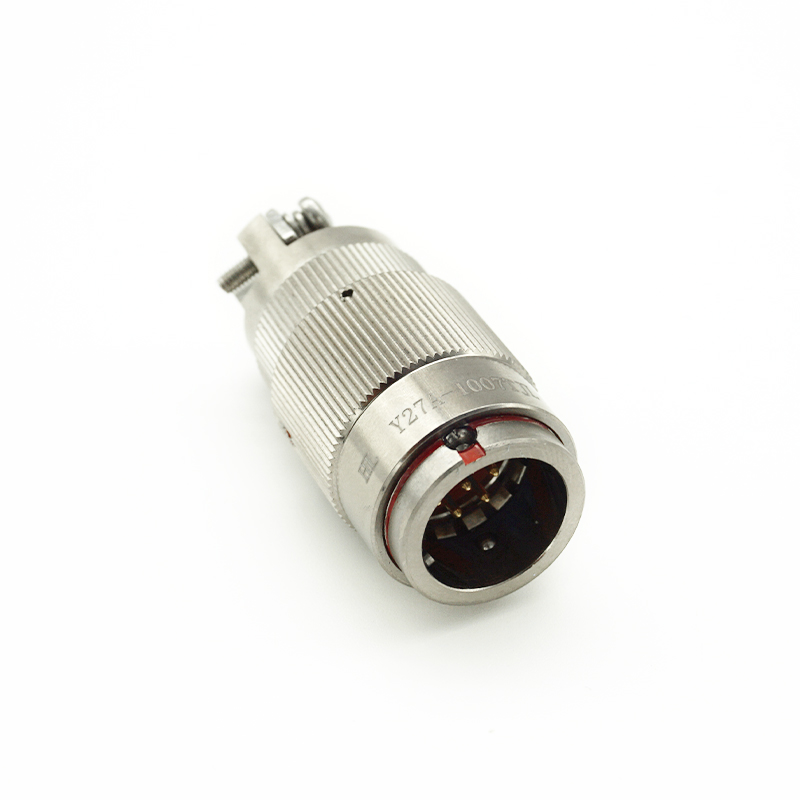

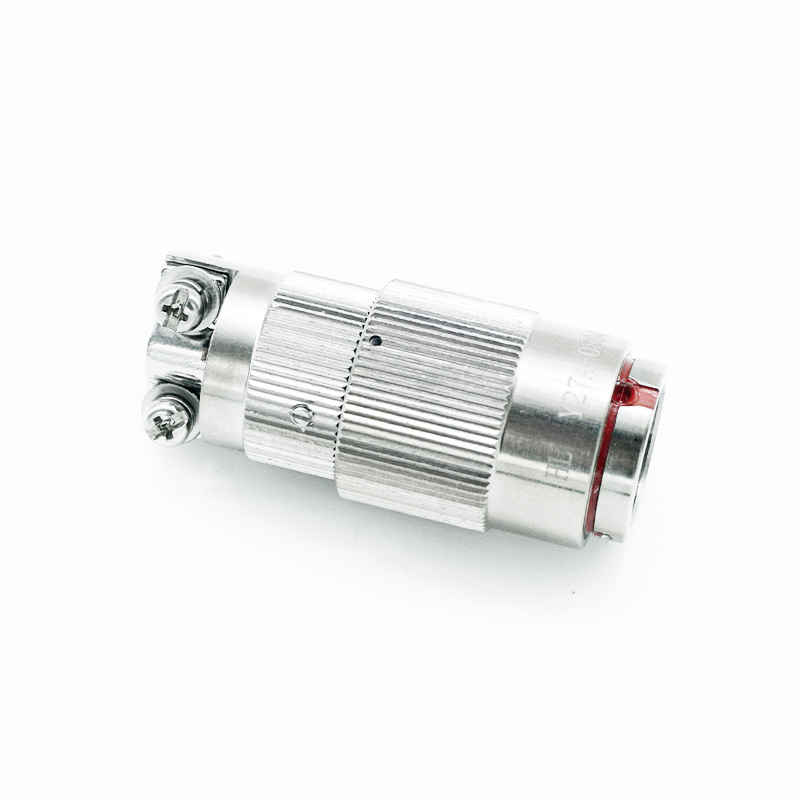

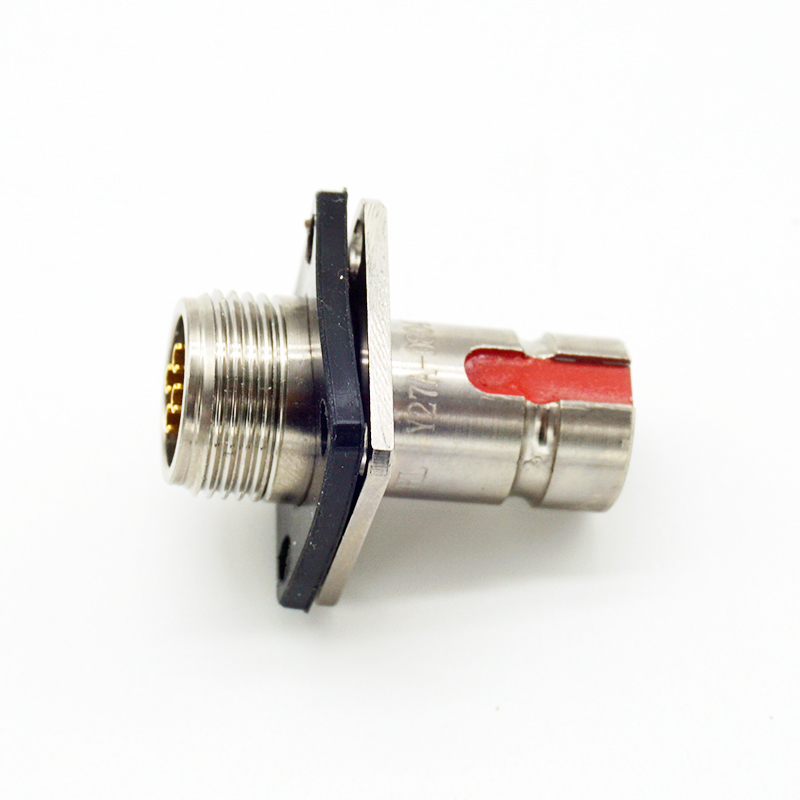

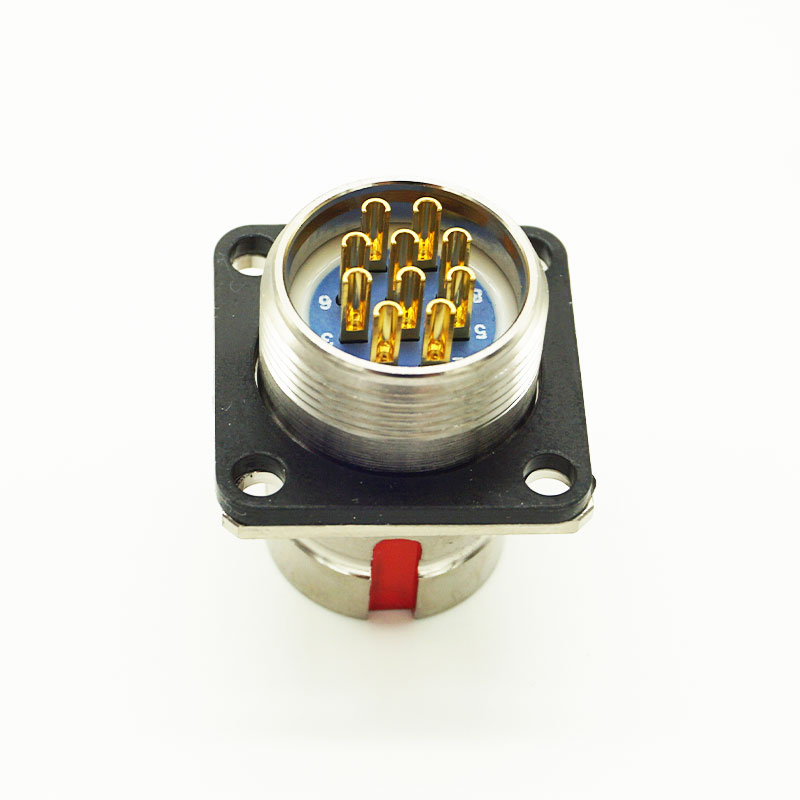

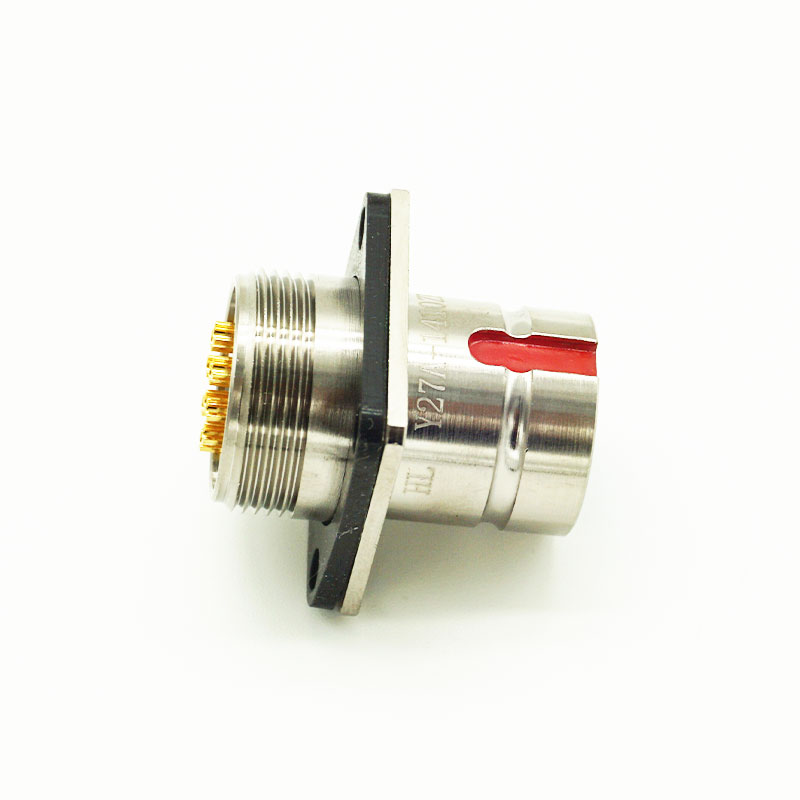

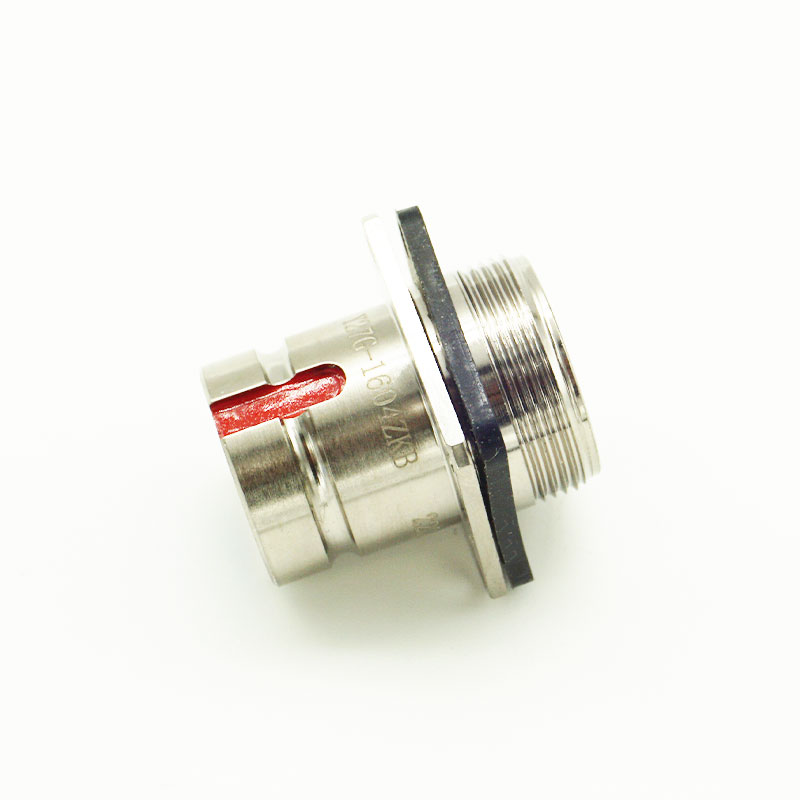

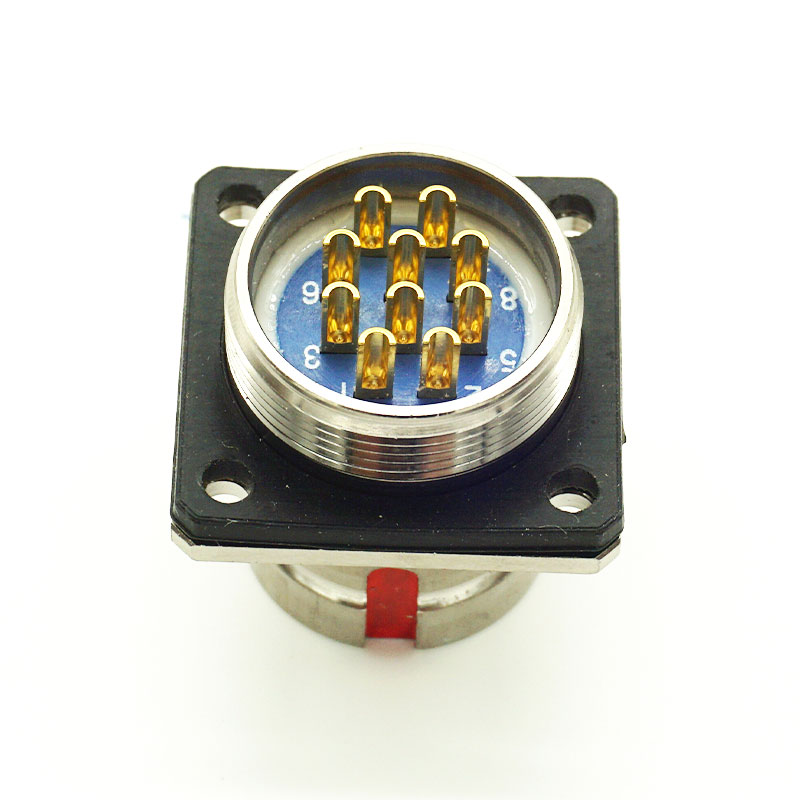

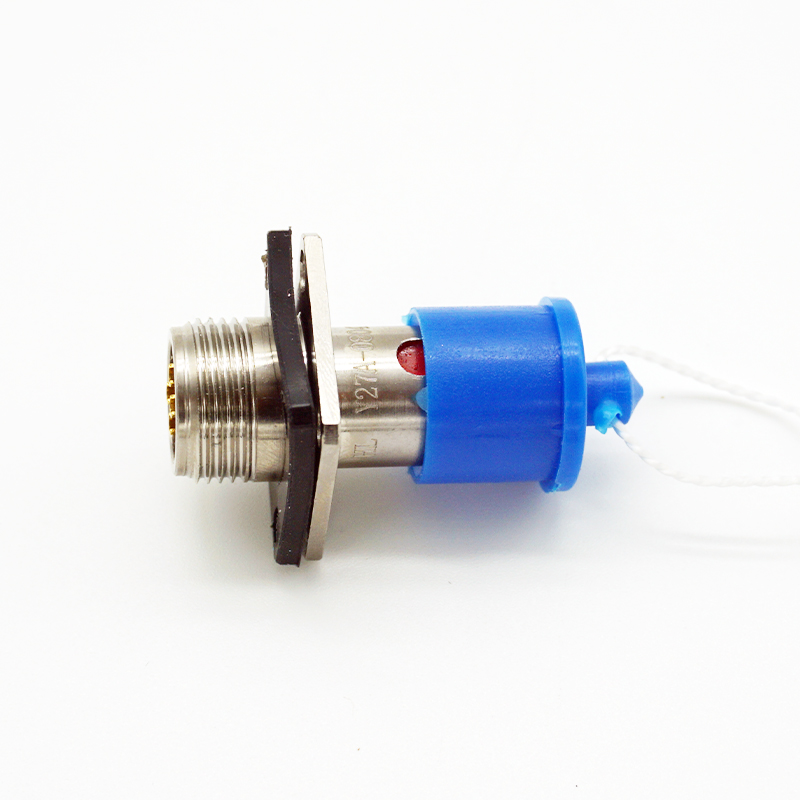

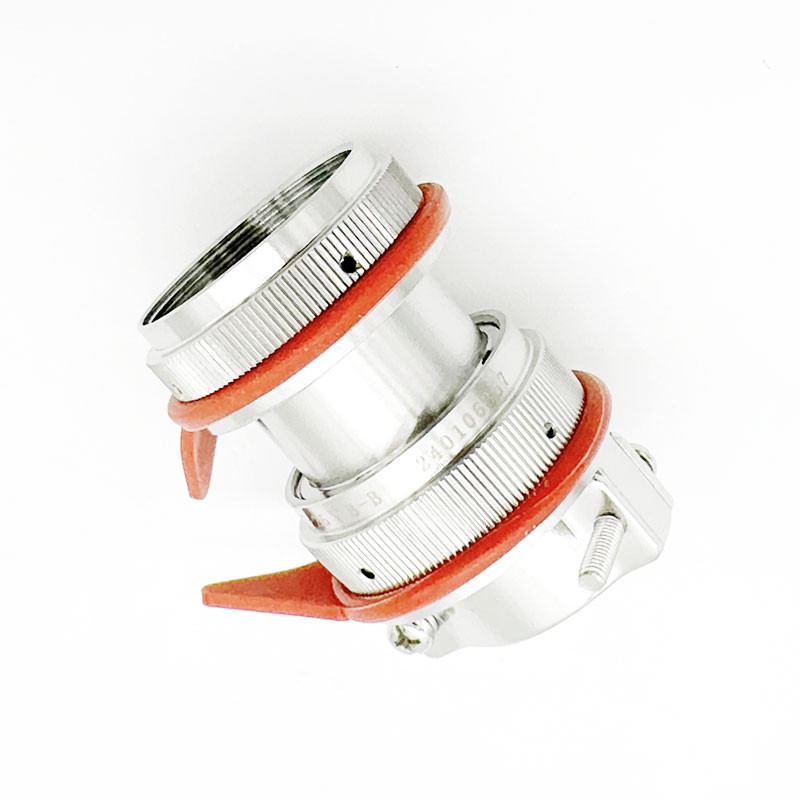

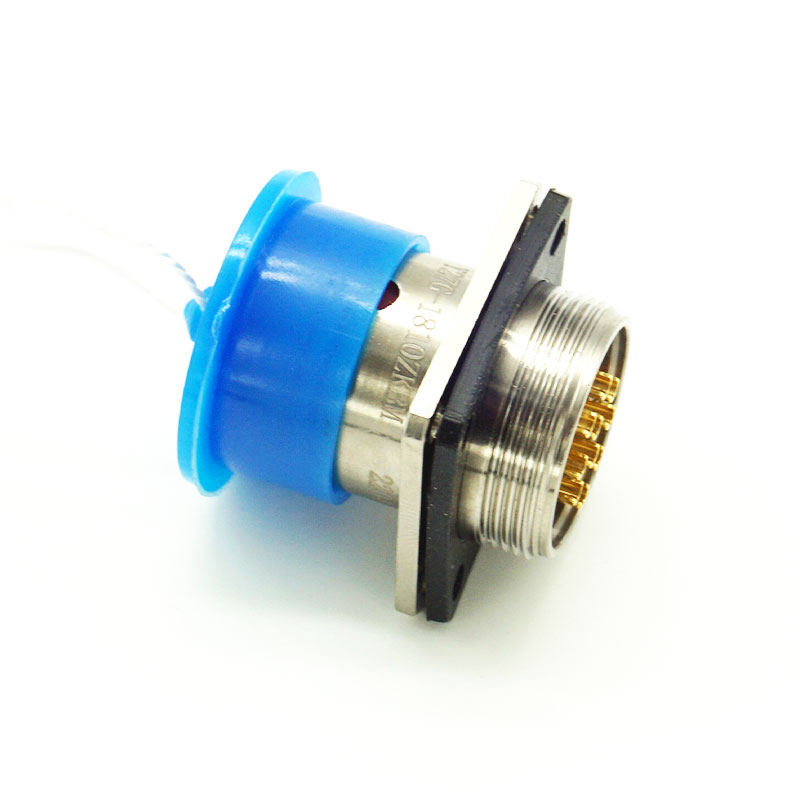

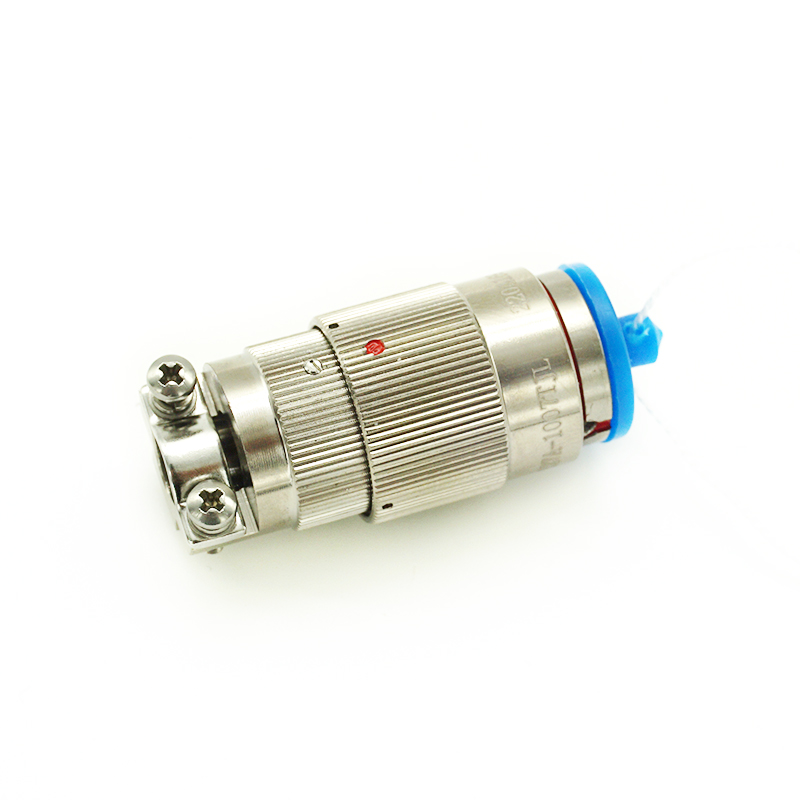

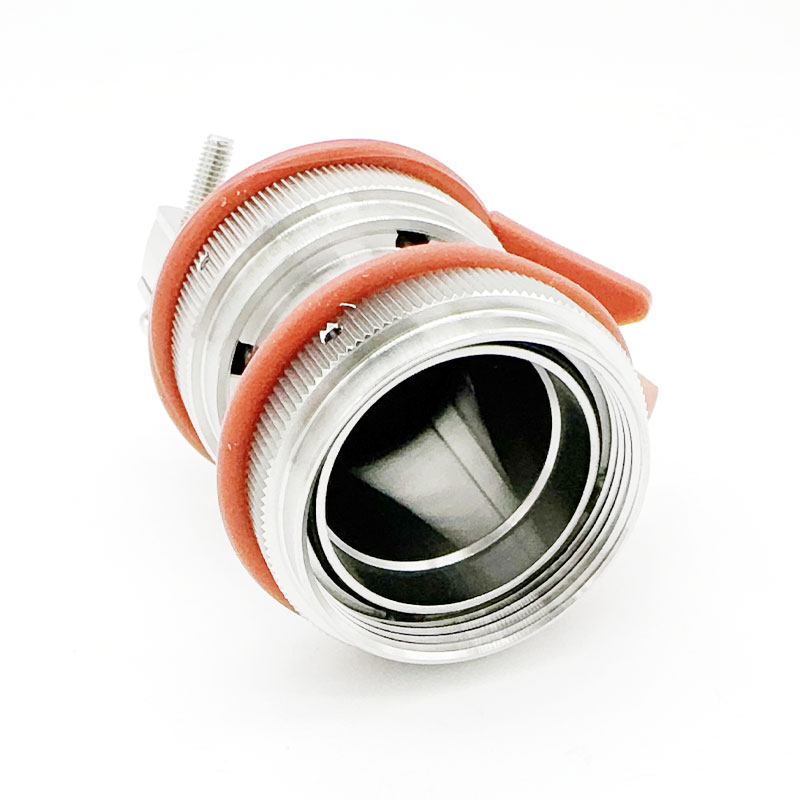

Custom Y27 Series Circular Military Specification Connectors

Home / Products / Circular Electrical Connector / Y27 series
Recommended products
CALL OUR OFFICE

‪+86 176 0151 5794‬

E-MAIL

[email protected]

Y27 Series Circular Military Specification Connectors Manufacturers

Product introduction

●Comply with GJ82905A-2004

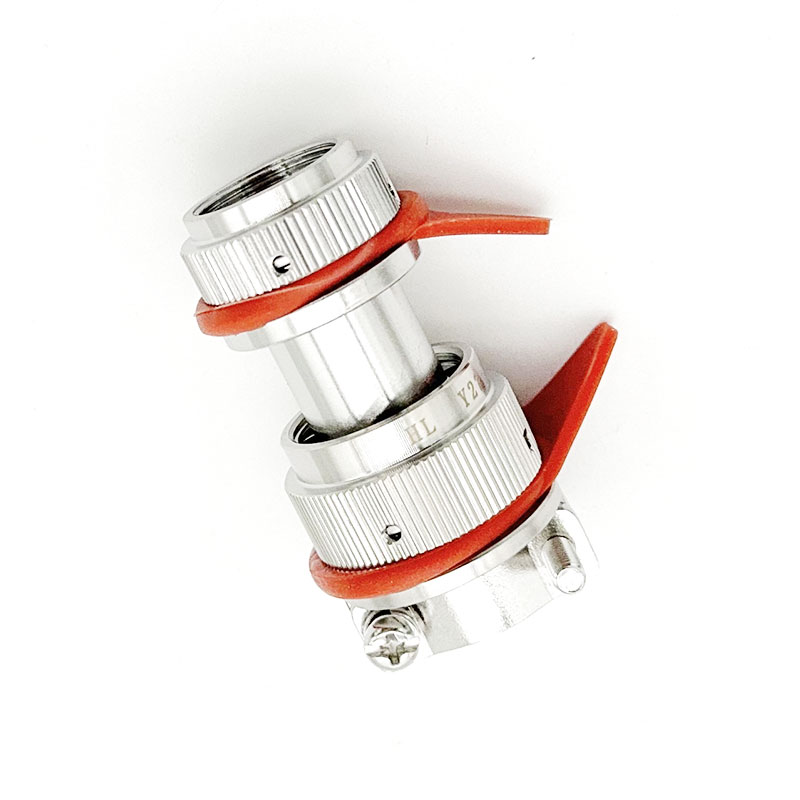

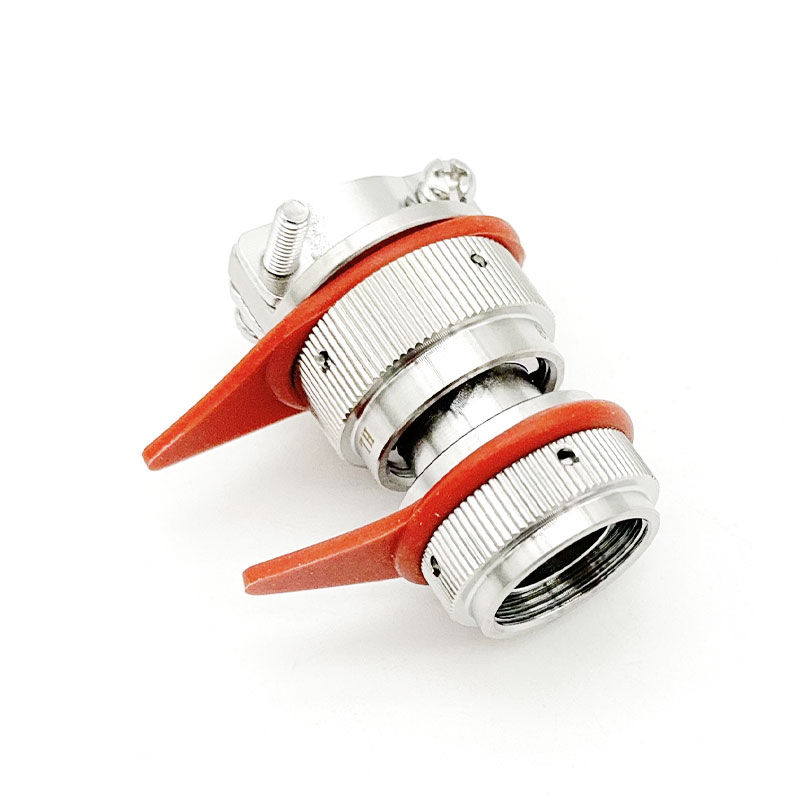

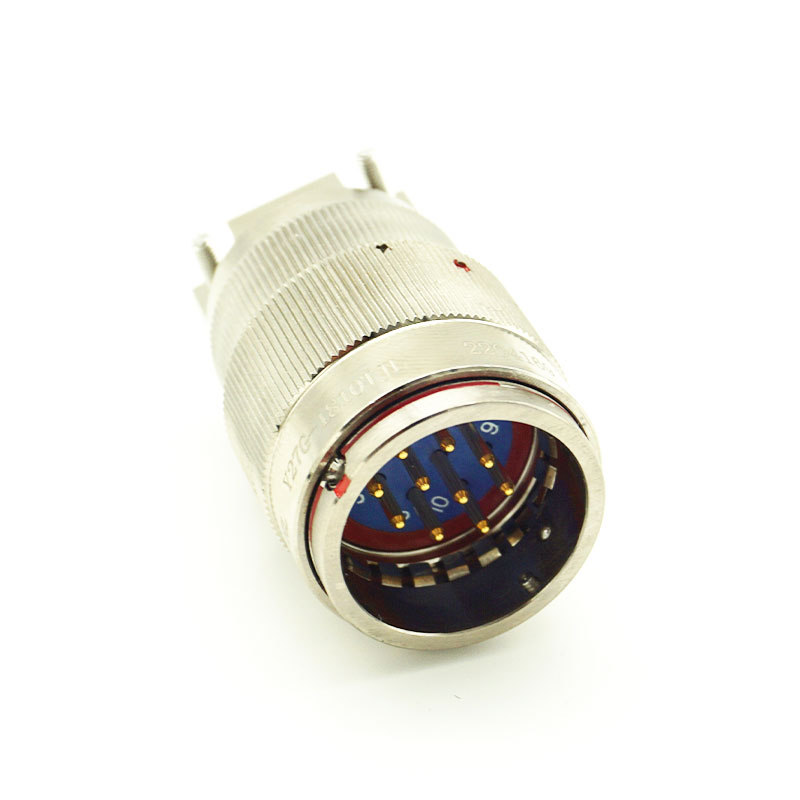

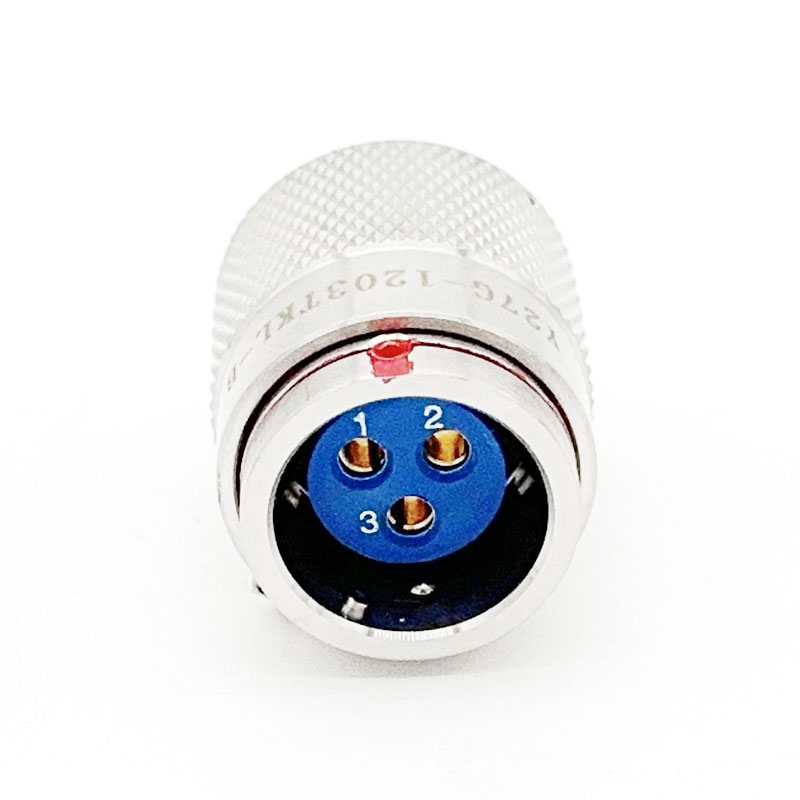

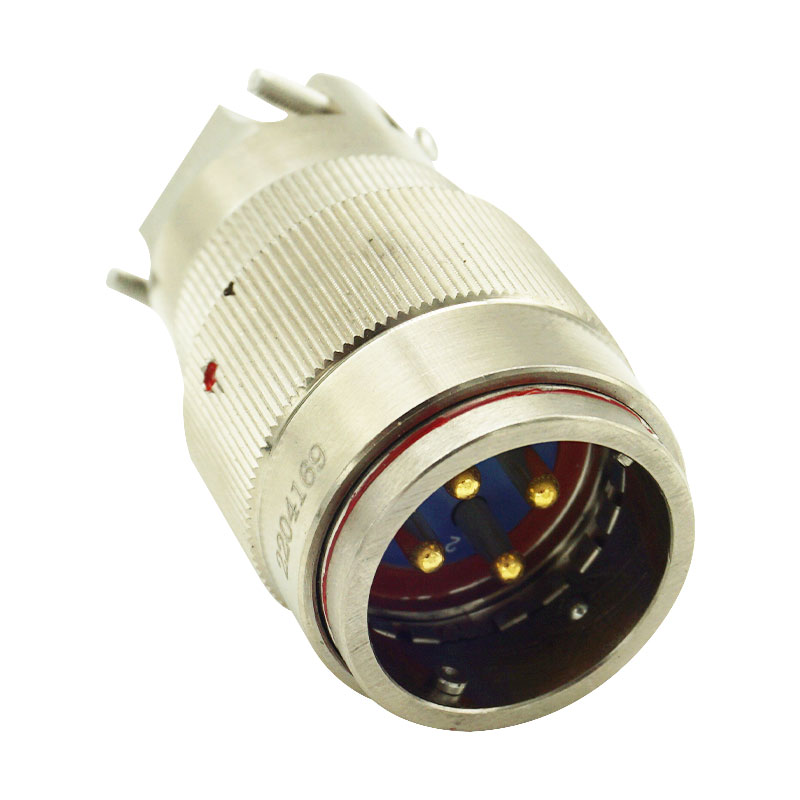

●Push/pull type circular electrical connector, reliable connection, convenient and fast connection and separation, suitable for blind insertion or other insertion situations

●Anti-vibration, anti-salt spray and anti-electromagnetic interference properties

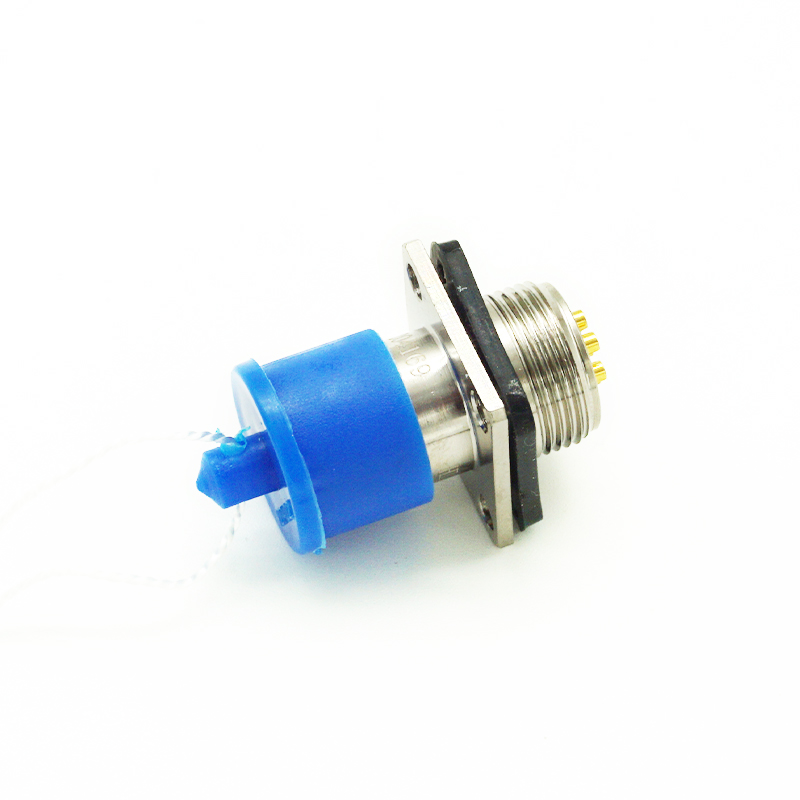

●Available in dust-proof, rain-proof and gas-sealing varieties

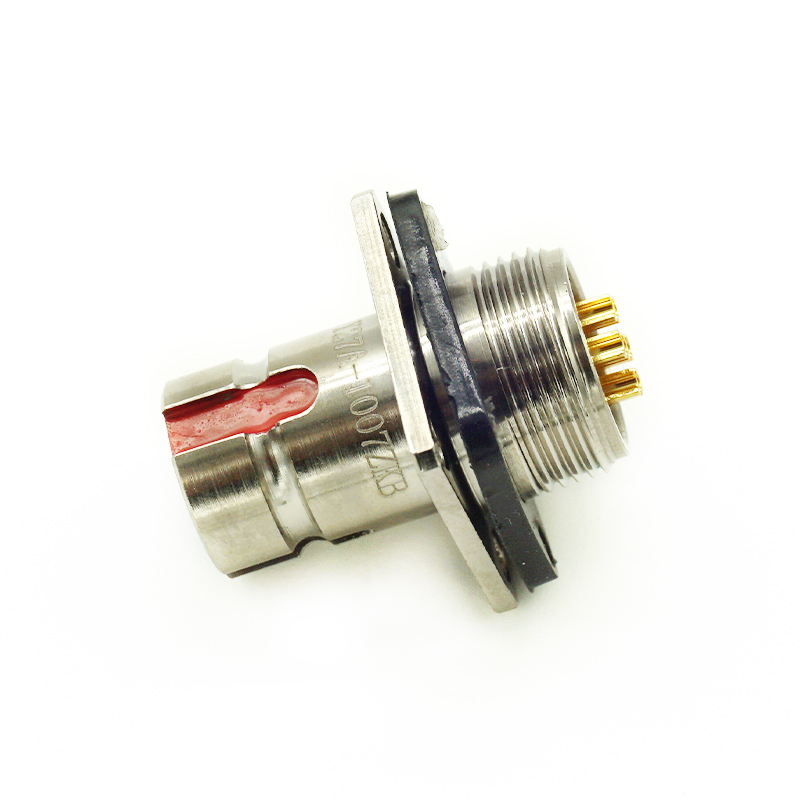

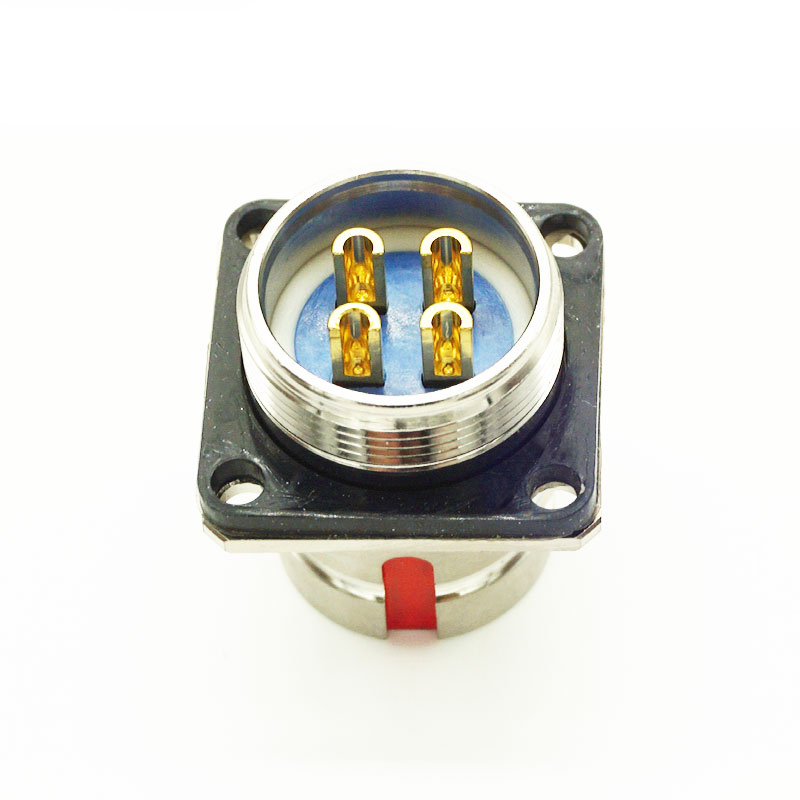

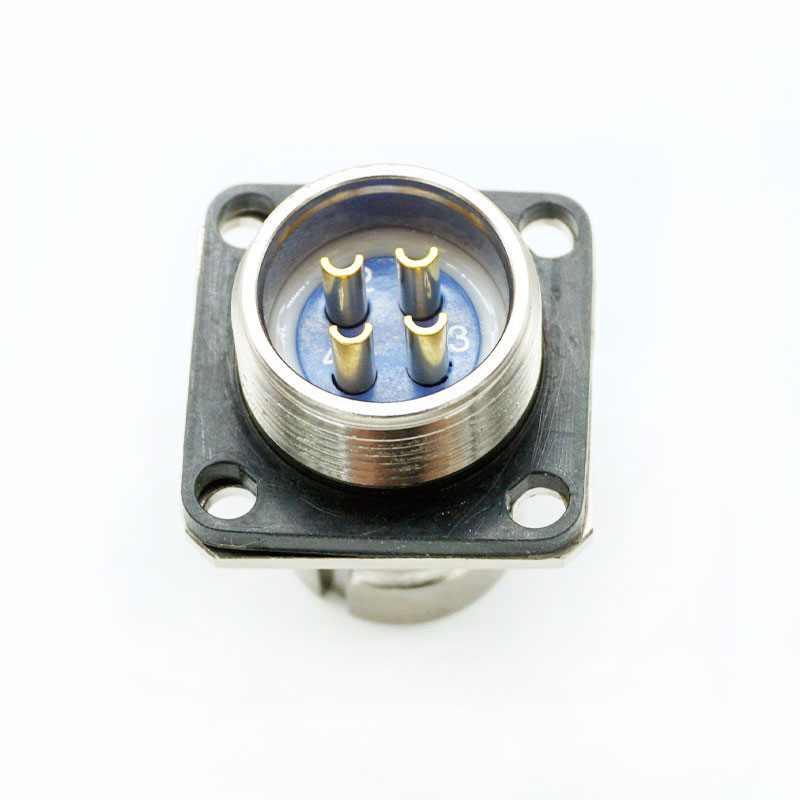

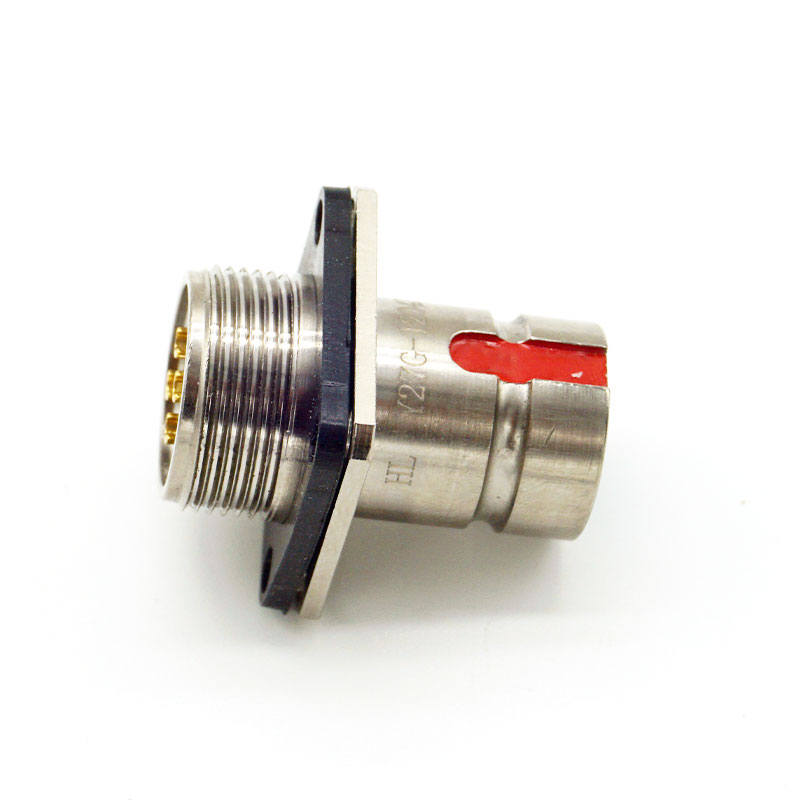

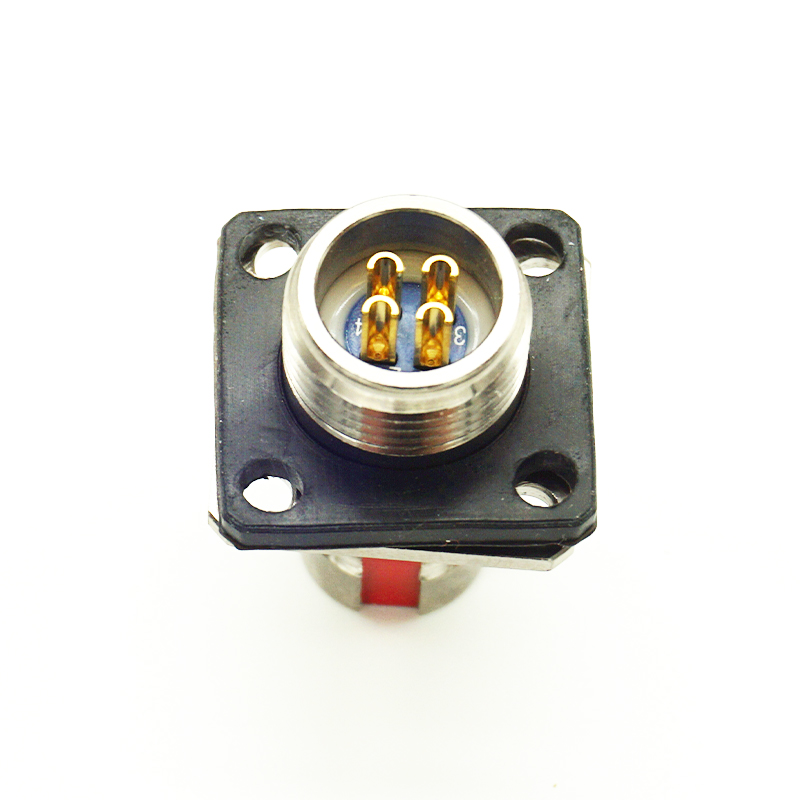

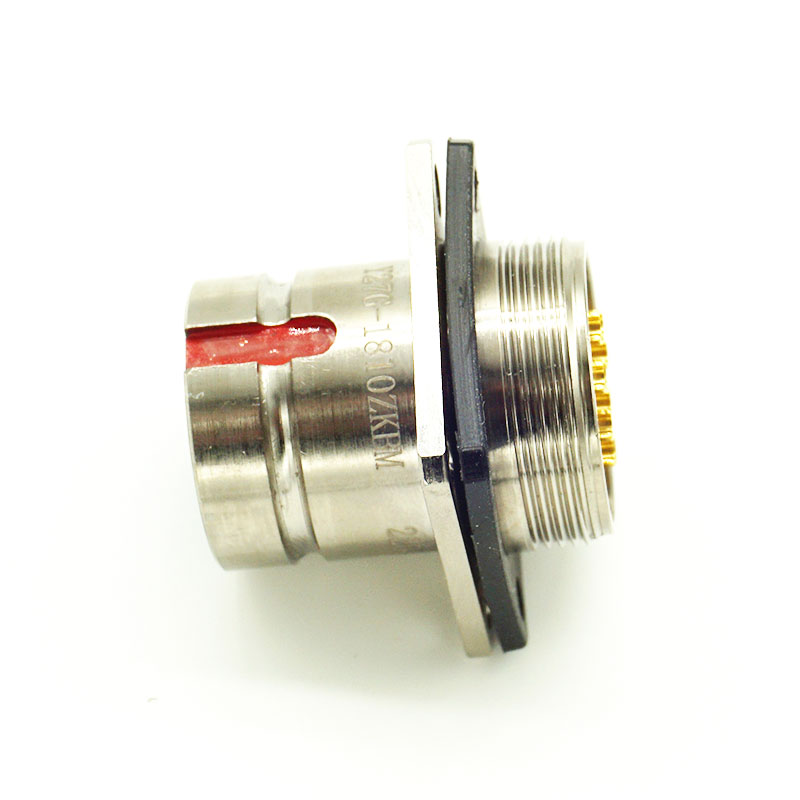

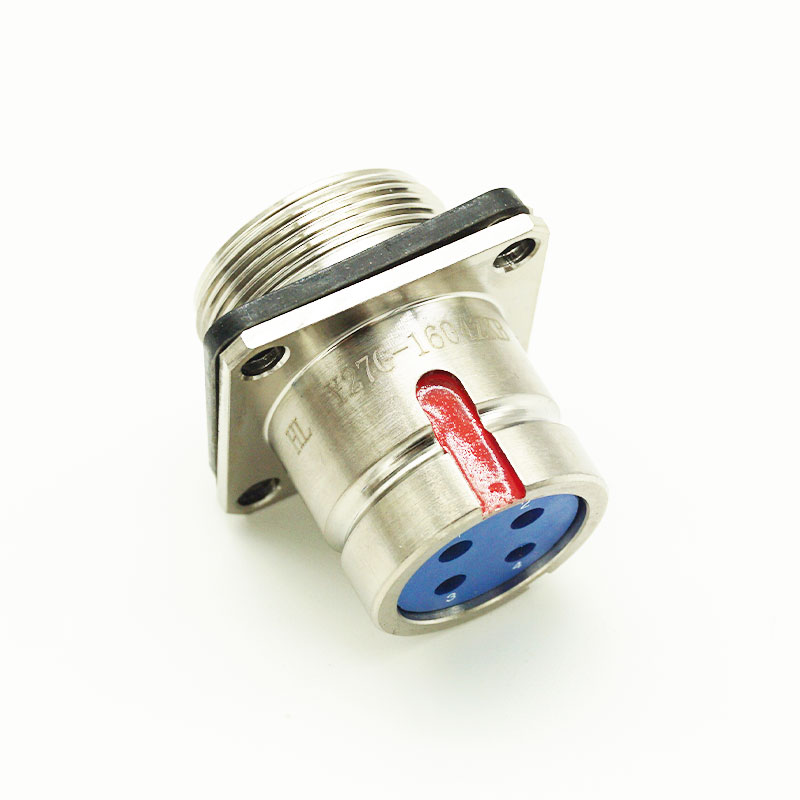

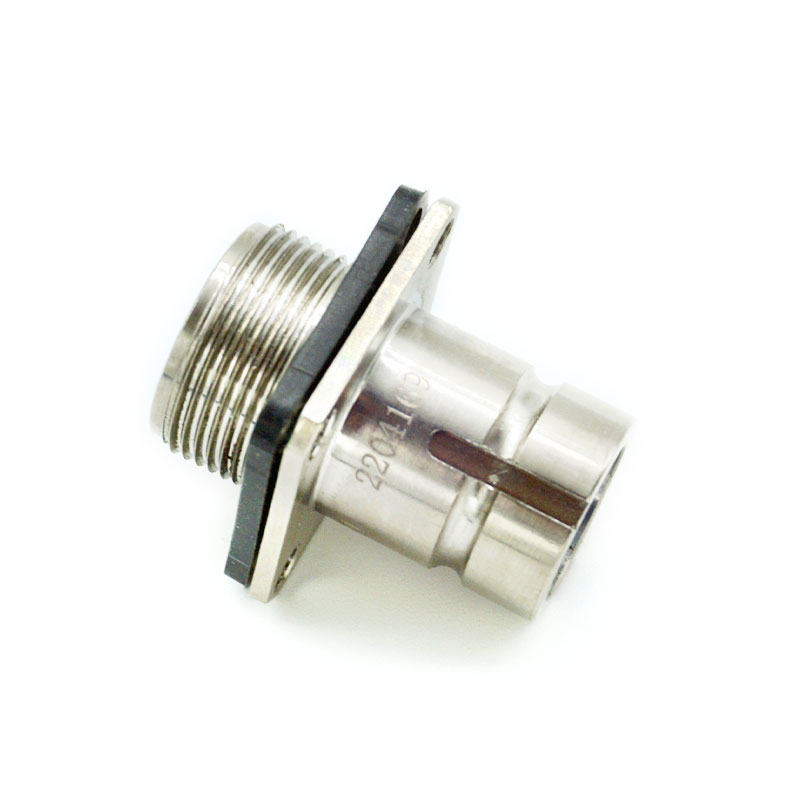

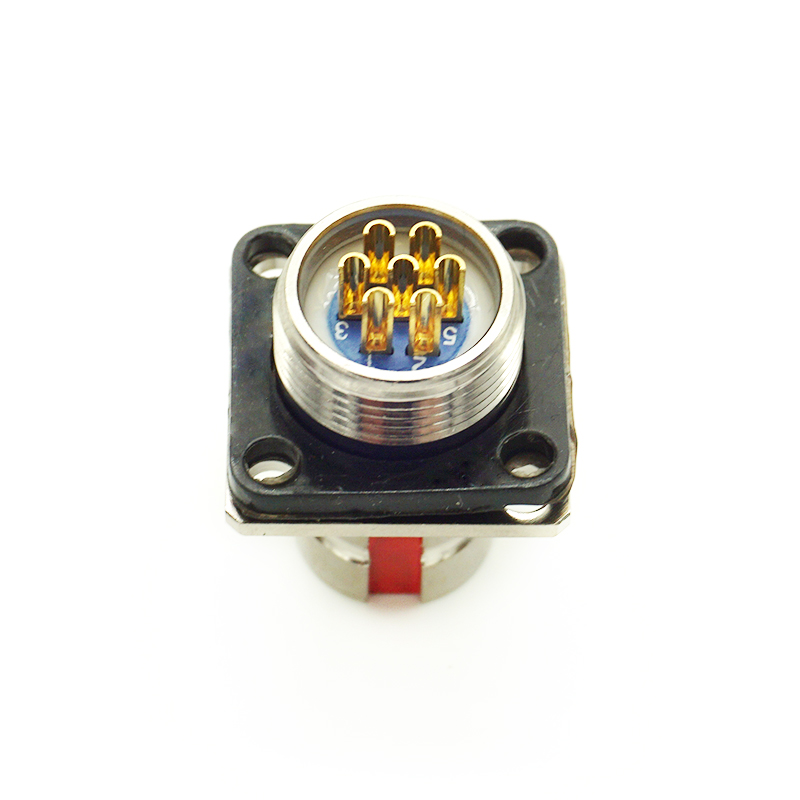

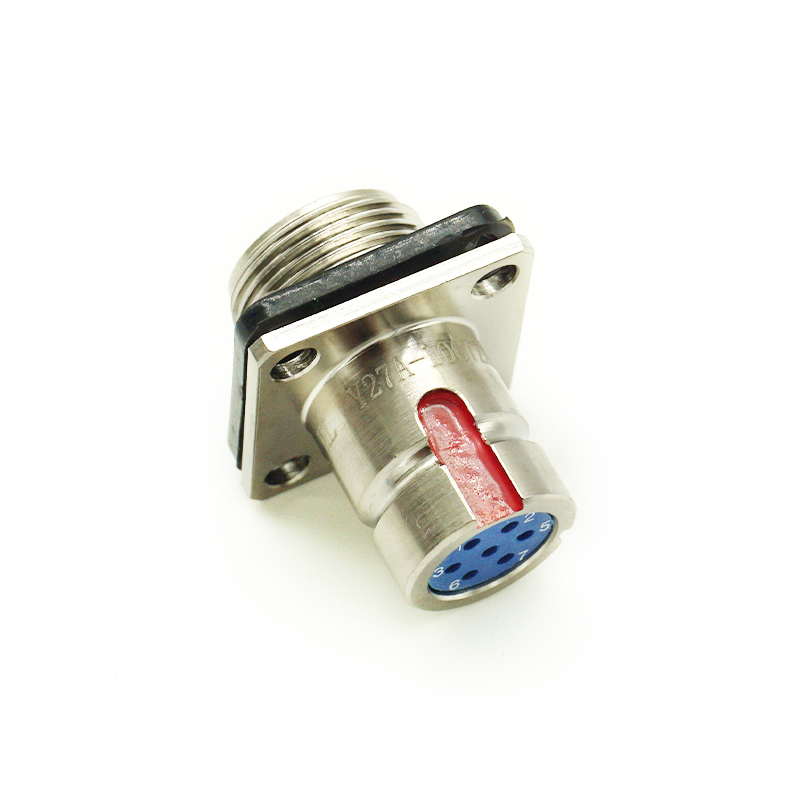

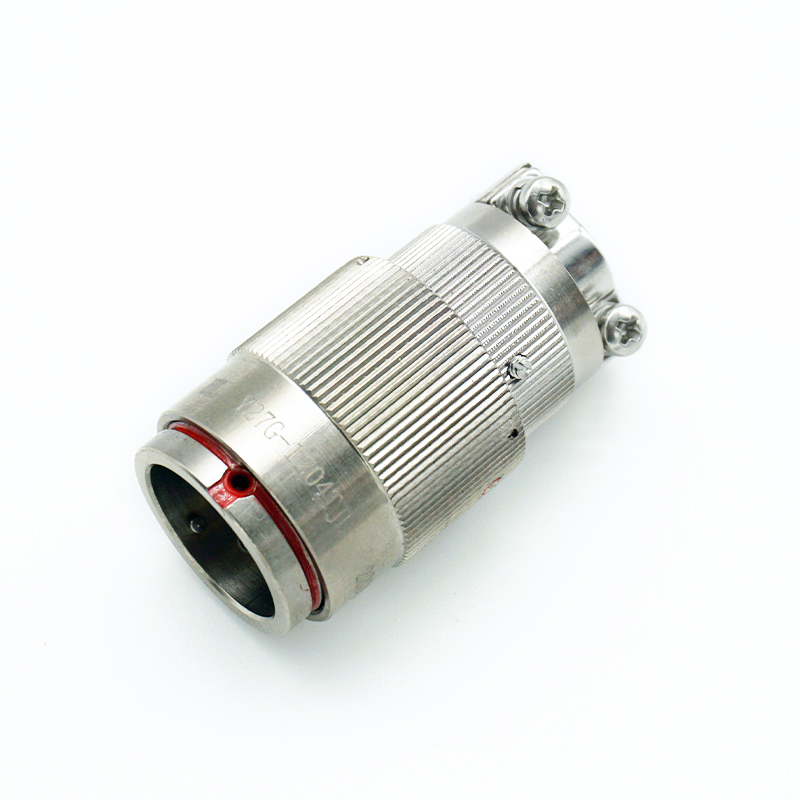

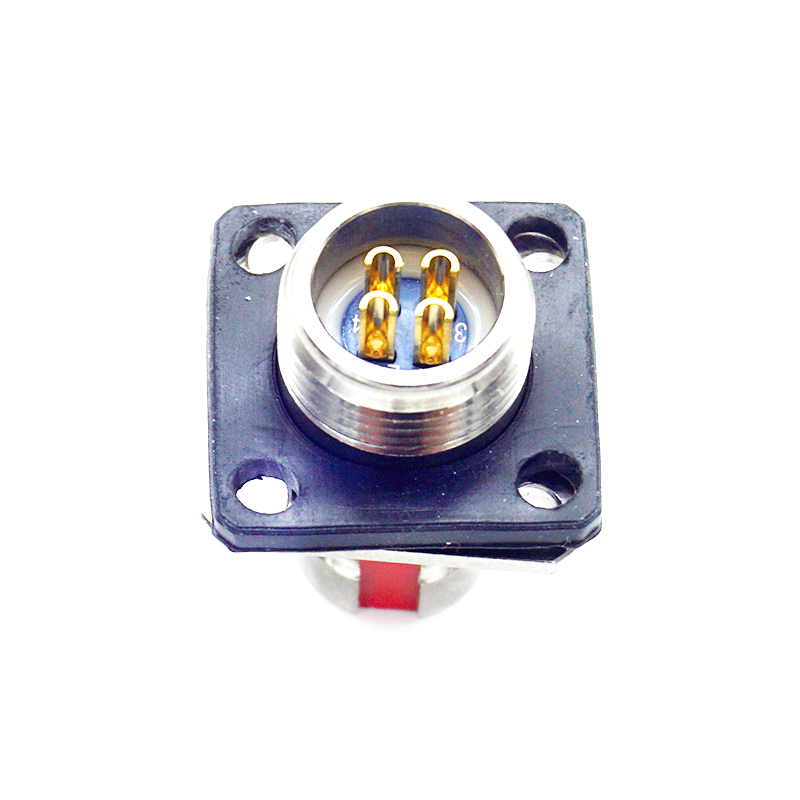

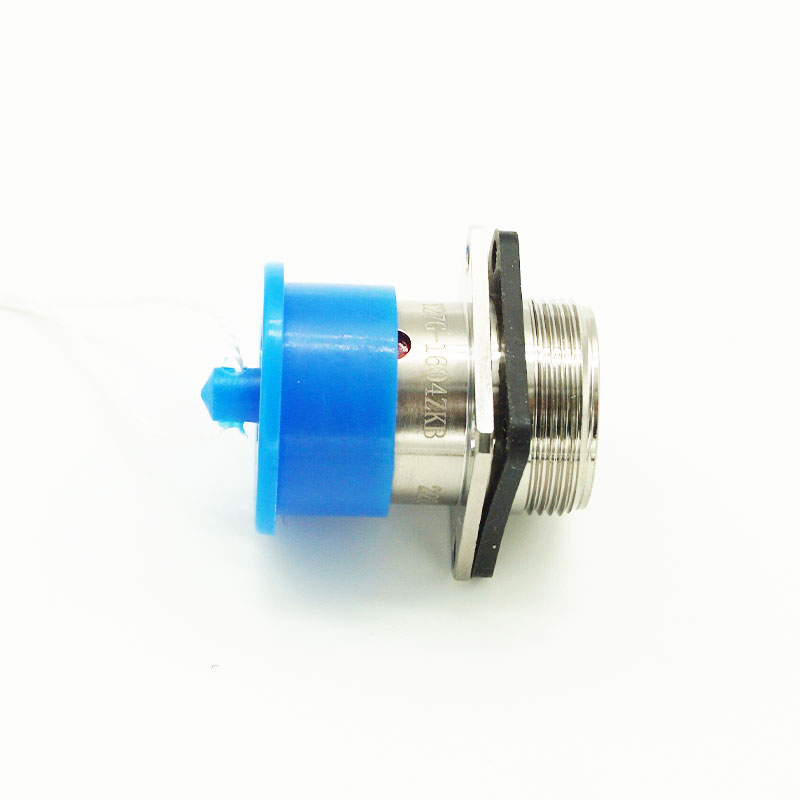

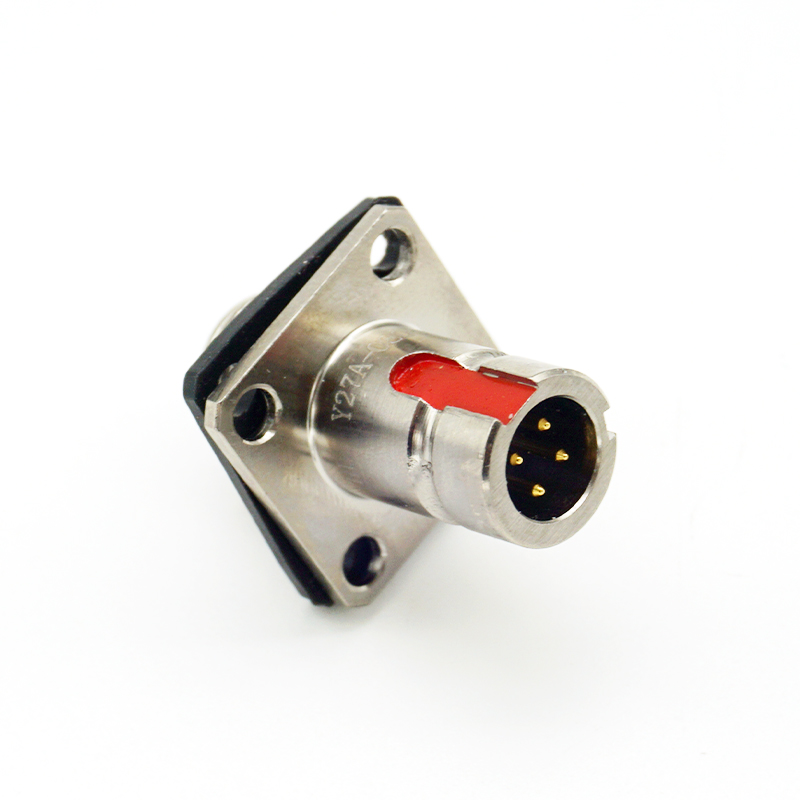

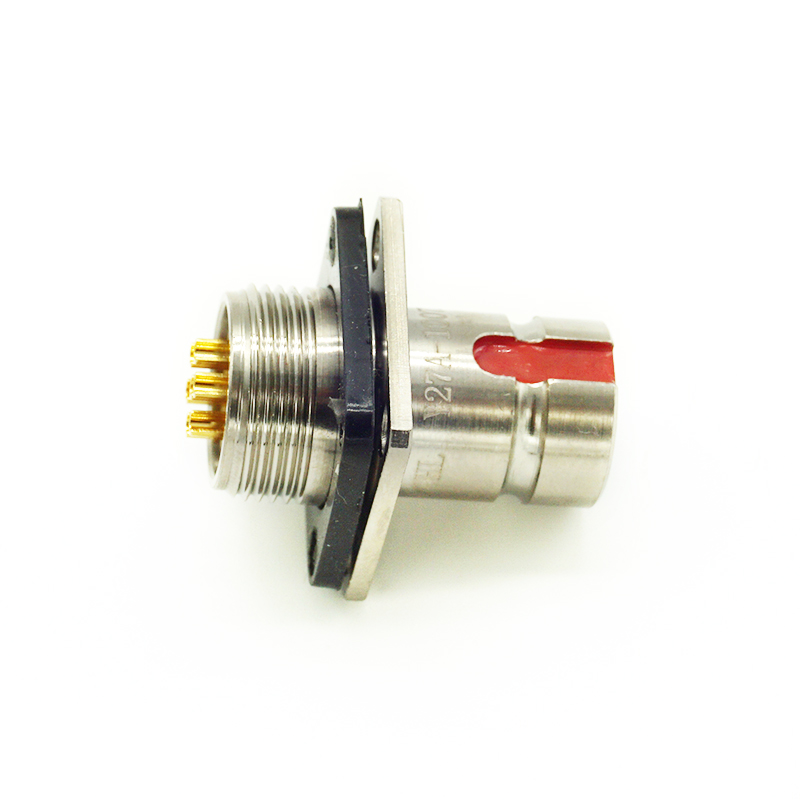

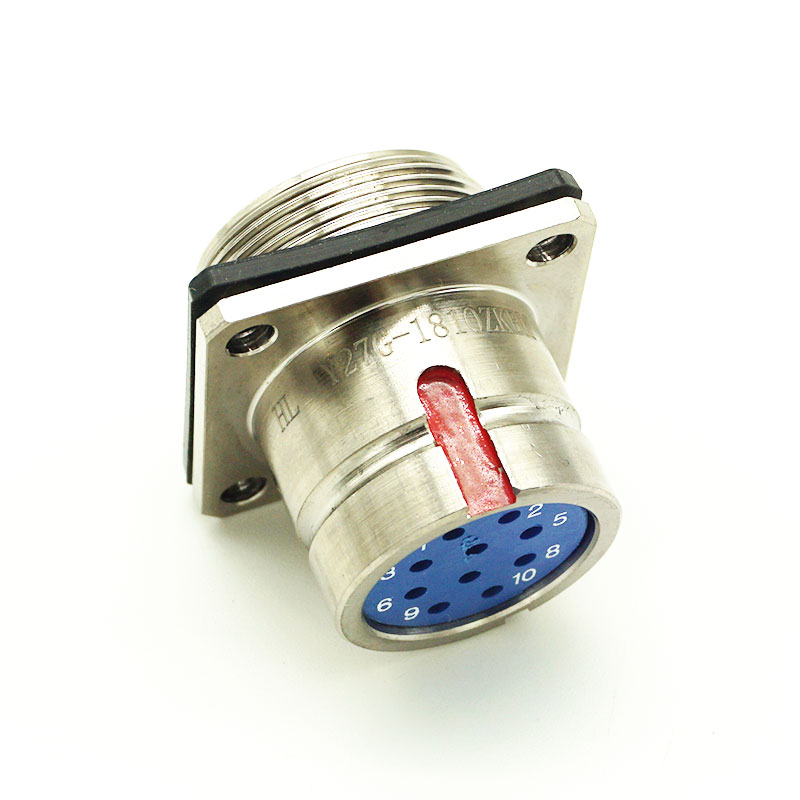

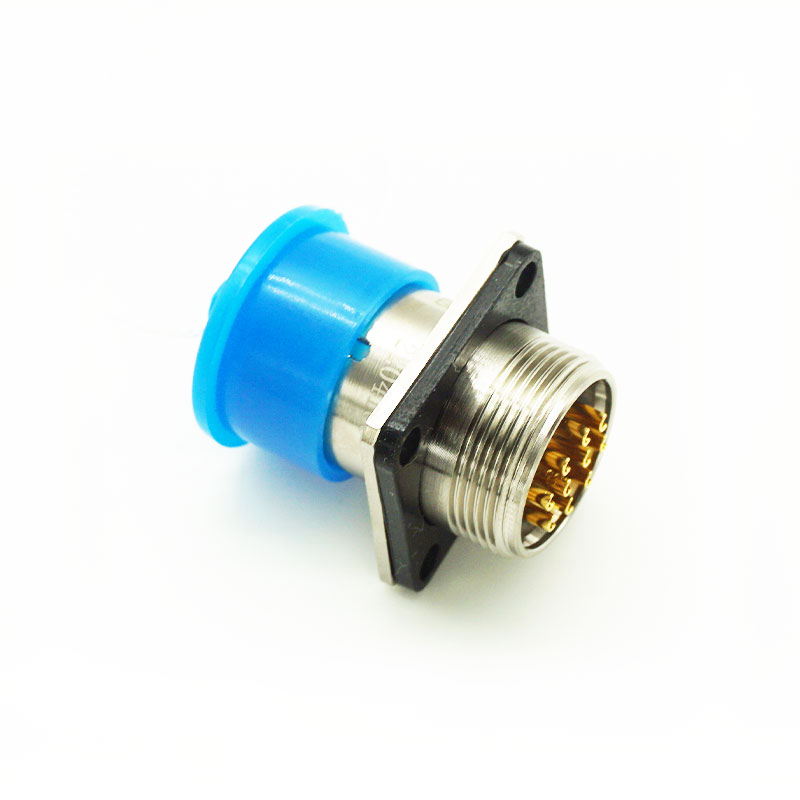

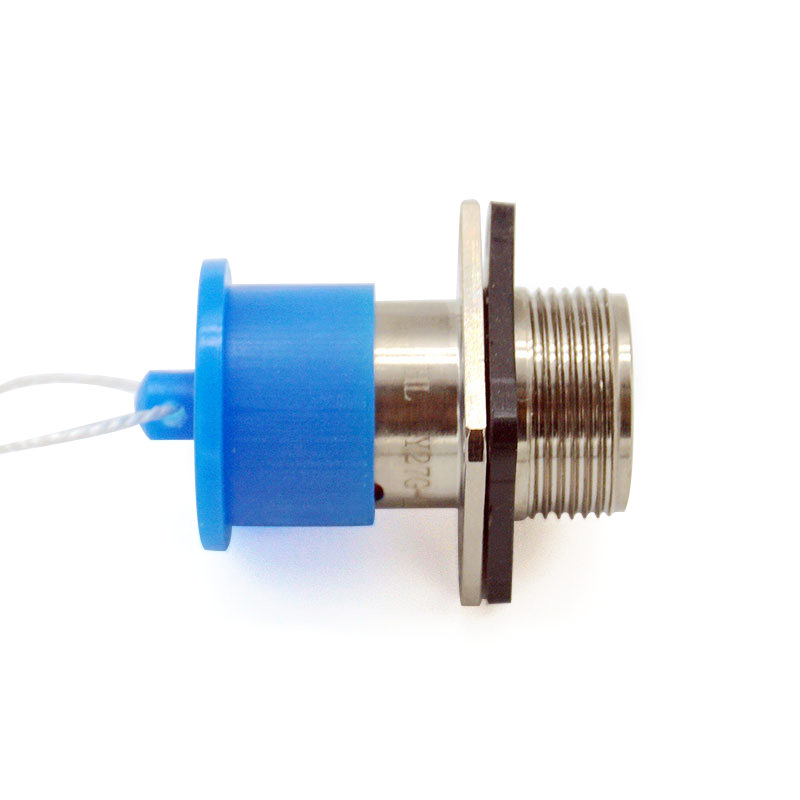

●Sockets are available in flange type and cable type

●Widely used in aerospace, aviation, shipbuilding, communications and other fields

●Execution standard: Q/321283HL03-2011

Main technical performance

[Mechanical properties]

Shell: aluminum alloy, stainless steel, navy brass



Shell: aluminum alloy, stainless steel, navy brass

Socket air tightness: rubber seal: leakage rate <1Pa ·cm³/s

Sine vibration: 10~2000Hz. Acceleration 196m/s²

Random vibration: power spectrum density 0.4G²/Hz, acceleration root mean square value 23.1G

Impact: 980m/s²

Acceleration: 980m/s

Service life: ≥500 times



[Environmental performance]

Operating temperature: -55℃~+125℃ Working air pressure: 1.33Pa-101.3kPa

Relative humidity: 92%~98% at 40±2℃

Salt spray resistance: Y27, Y27A.B.C series; 48h,

Y27F.G.H series: Aluminum alloy shell 96h₂

Stainless steel shell, navy brass shell 1000h

Electromagnetic interference shielding: When the interference frequency is 100MHz~1GHz, the minimum attenuation is 45dB

Immersion: Immersion depth 2m (Y27F.G.H series only)

[Electrical properties]

Contact rated current(A)



Contact mating diameter (mm)

0.8

1.0

1.5

2.5

3.5

5.0

7.0

9.0

10.0

12.0

Contact rated current

Y27

3

一

一

一

一

一

一

一

一

一

Y27A

一

5

一

一

一

一

一

一

一

一

Y278

一

5

10

25

50

75

100

150

200

一

Y27C

一

5

10

25

50

75

100

150

200

一

Y27F

一

7.5

一

一

一

一

一

一

一

一

Y27G

一

7.5

13

25

50

75

100

150

200

250

Y27H

3

5

一

一

一

一

一

一

一

 一



Contact resistance (mΩ)



Pin diameter (mm)

0.8

1.0

1.5

2.5

3.5

5.0

7.0

9.0

10.0

12.0

Material

Copper

Copper

Copper

Copper

Copper

Copper

Copper

Copper

Copper

Copper

Before life test

7

6

5

1.5

1

0.7

0.5

0.4

0.4

0.3

After life test

10

10

8

3

1.5

1

0.8

0.7

0.6

0.5



Withstand voltage(V)



Series

Test voltage (50Hz AC effective value)

Y27

Y27A

Y278

Y27C

Y27F

Y27G

Y27H

Standard conditions

750

1300

1500

2500

2300

2300

1300

Low pressure

100

200

200

300

200

200

200



Insulation resistance (MΩ)



Series

Y27

Y27A

Y278

Y27C

Y27F

Y27G

Y27H

Standard conditions

1000

4000

5000

5000

5000

5000

4000

High temperature

500

1000

1000

1000

1000

1000

1000

Moist

50

100

100

100

100

100

100

Caught in the rain

20

20

20

20

一

一

一

Flooding

一

一

一

一

20

20

20

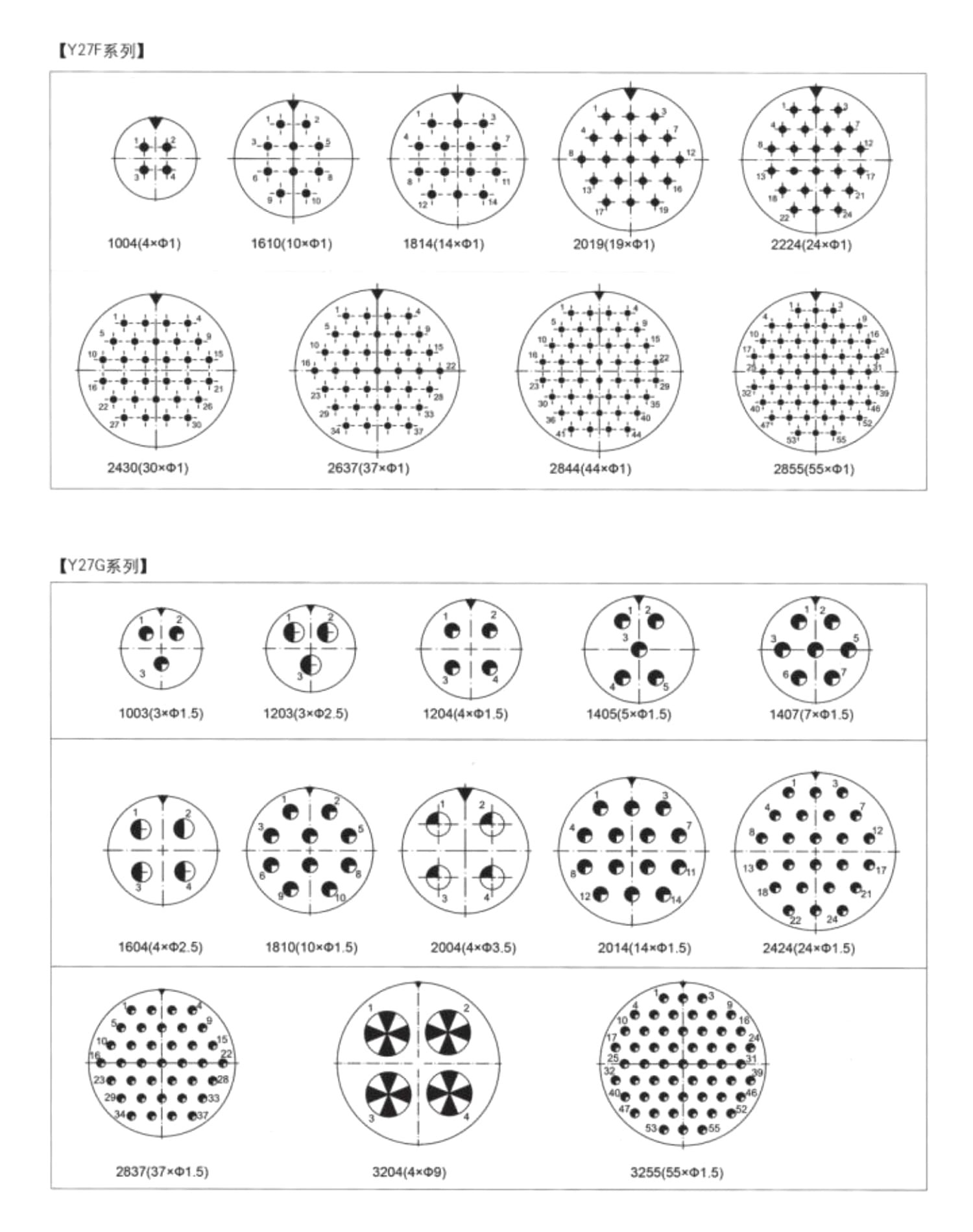

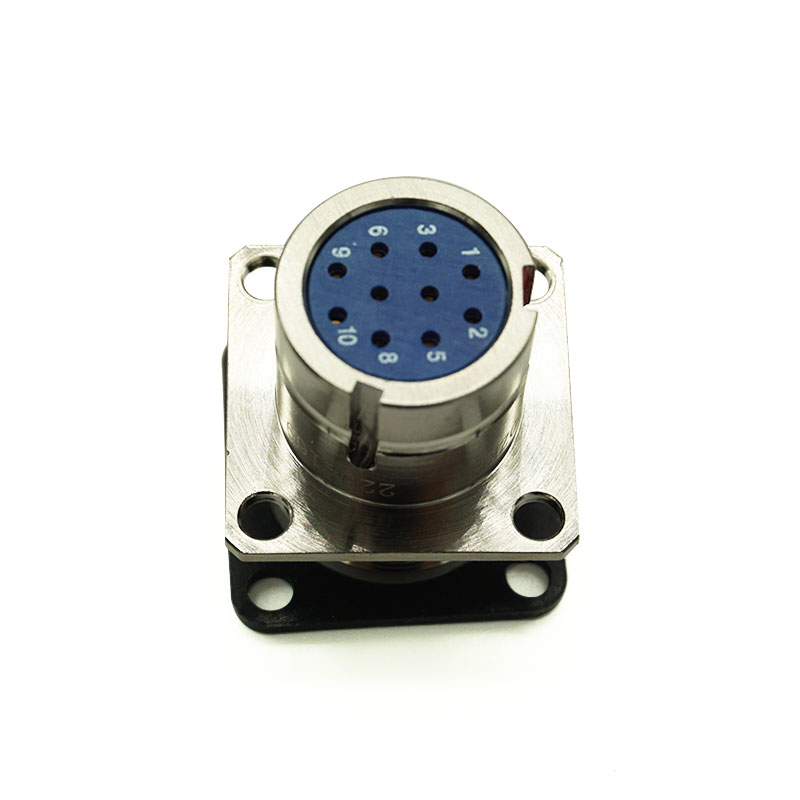

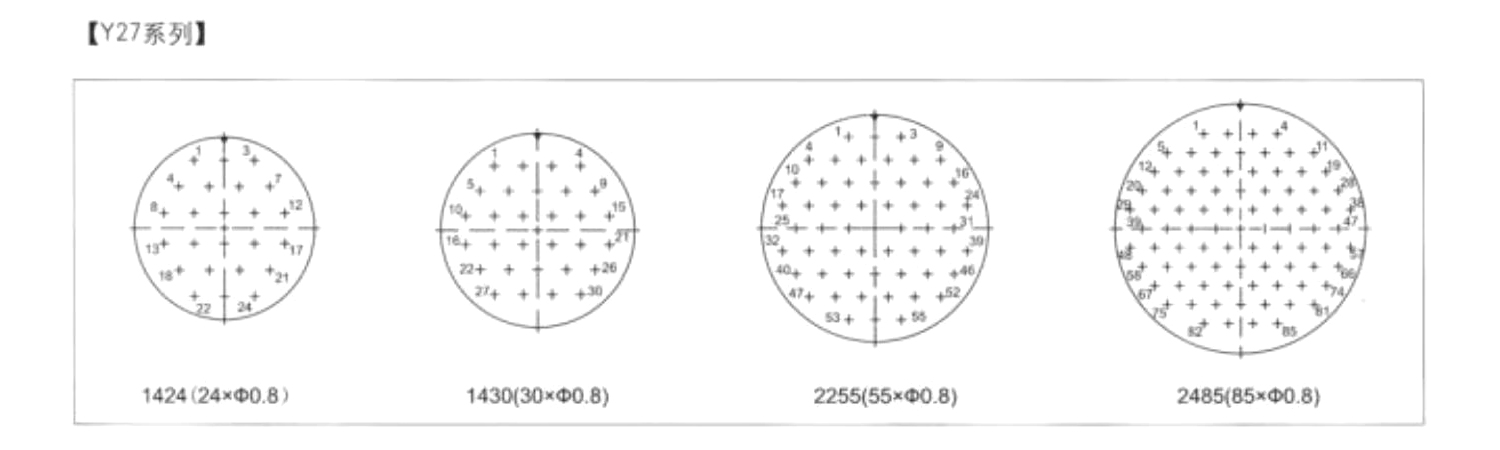

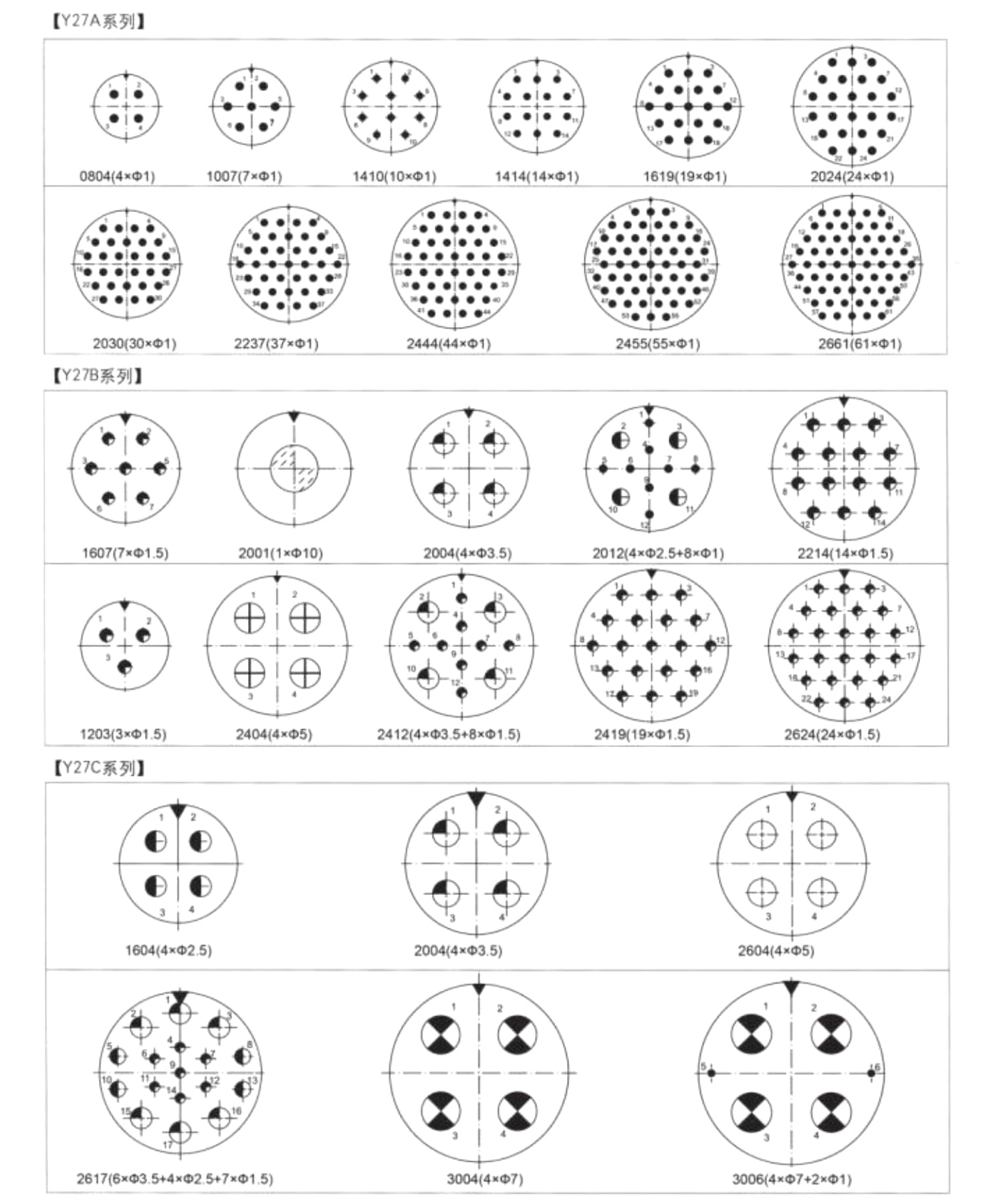

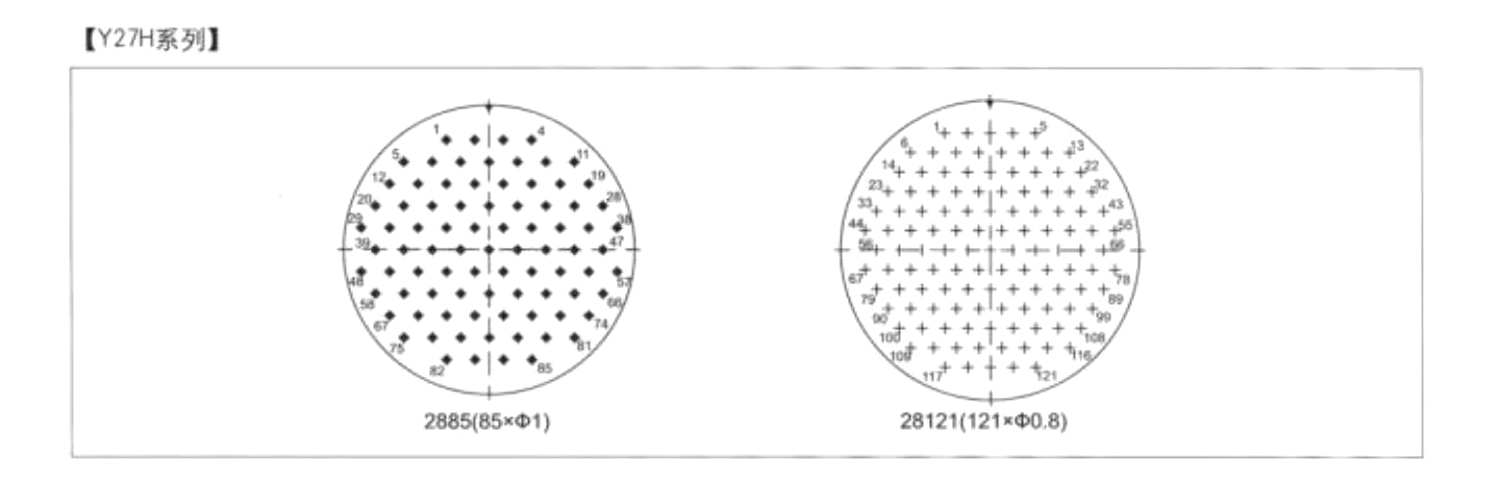

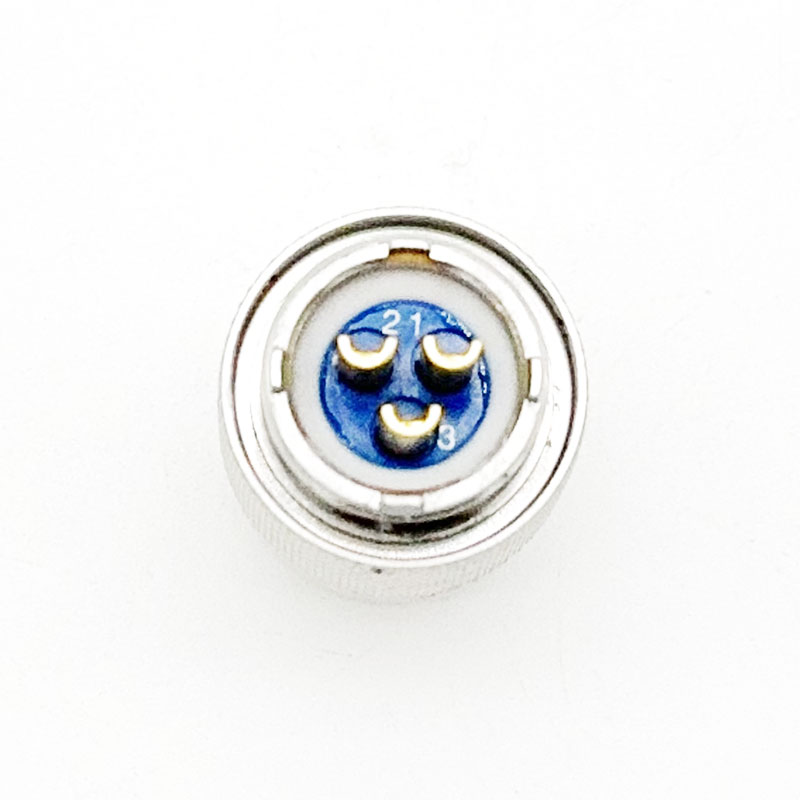

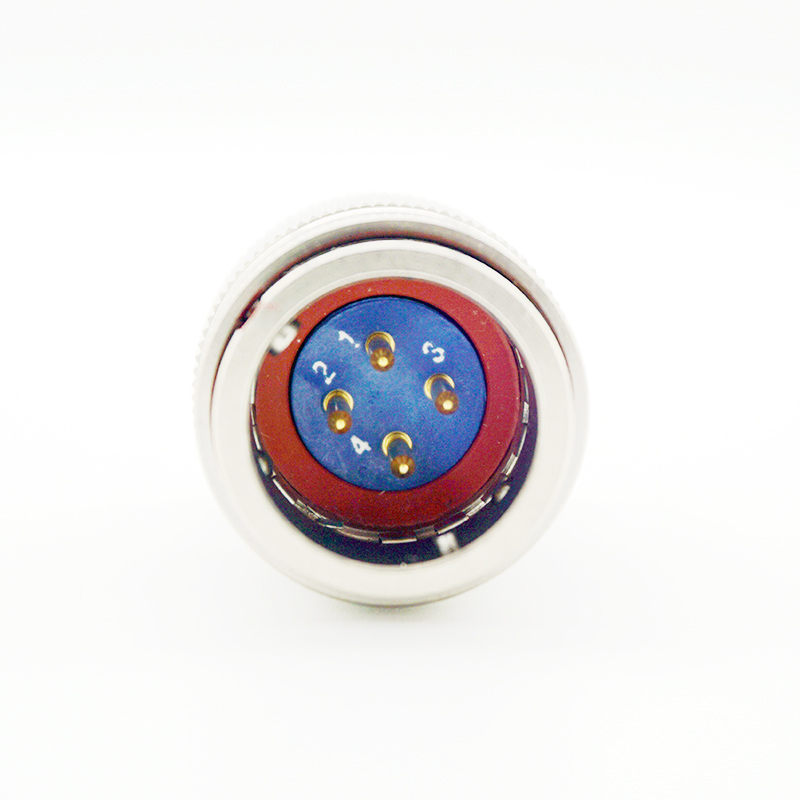

Arrangement of insulator hole positions (socket hole position numbers on the insertion interface)
