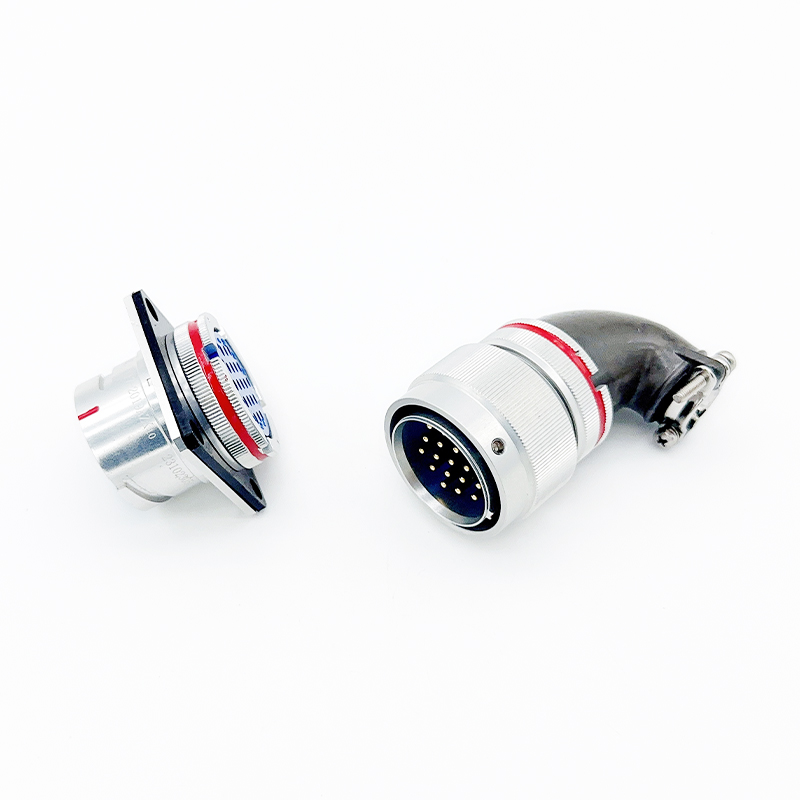

Custom Y17 series-Circular Electrical Connector

Home / Products / Circular Electrical Connector / Y17 series
Recommended products
CALL OUR OFFICE

‪+86 176 0151 5794‬

E-MAIL

[email protected]

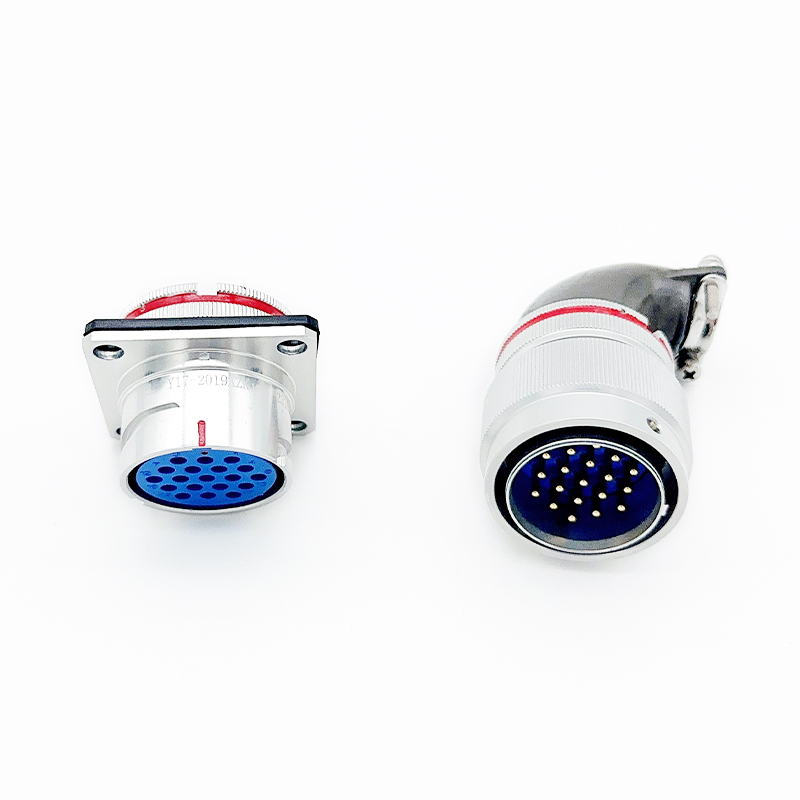

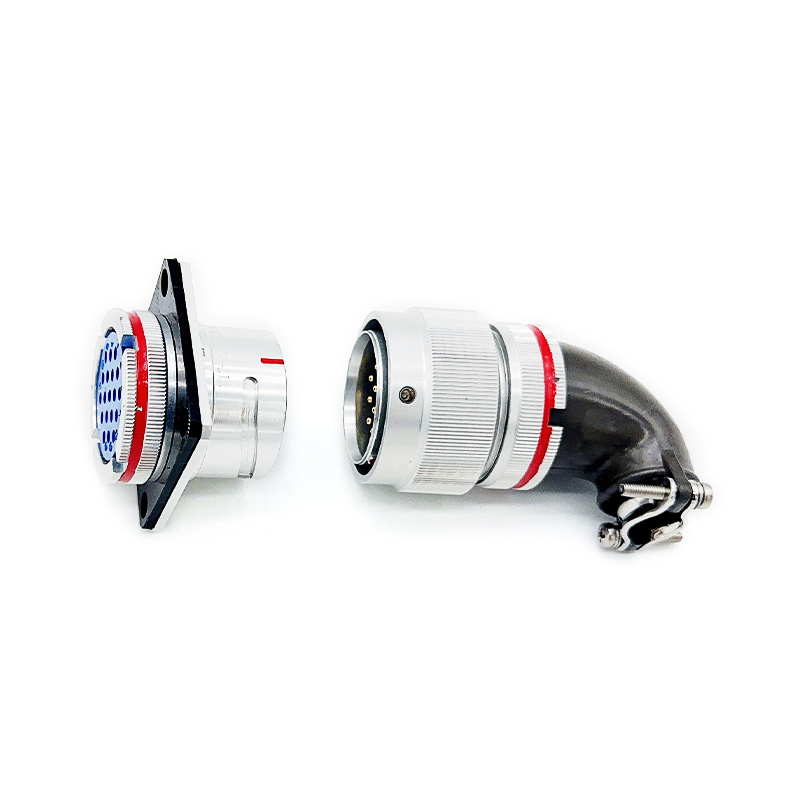

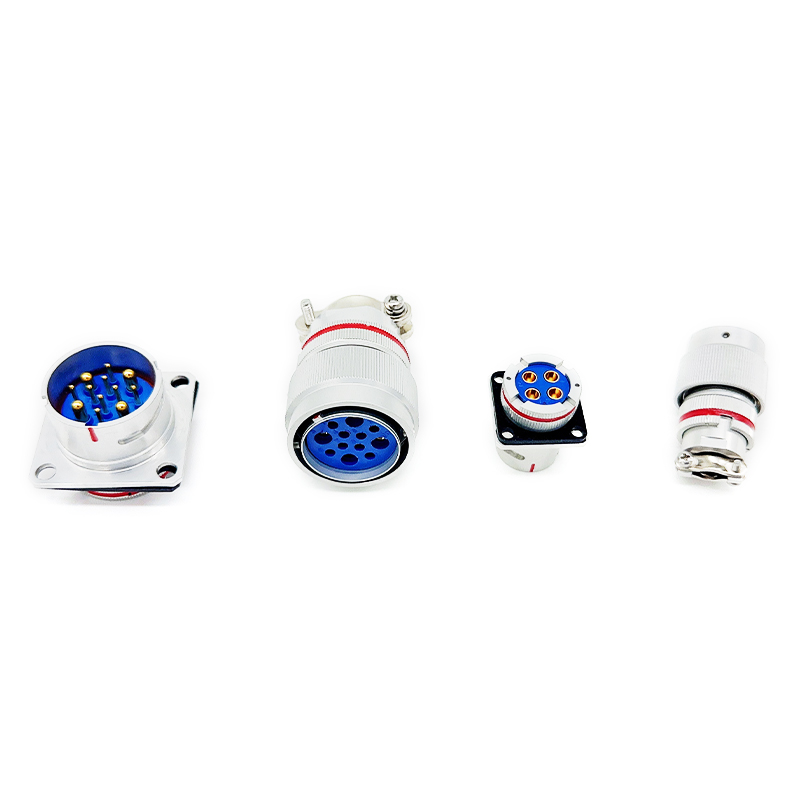

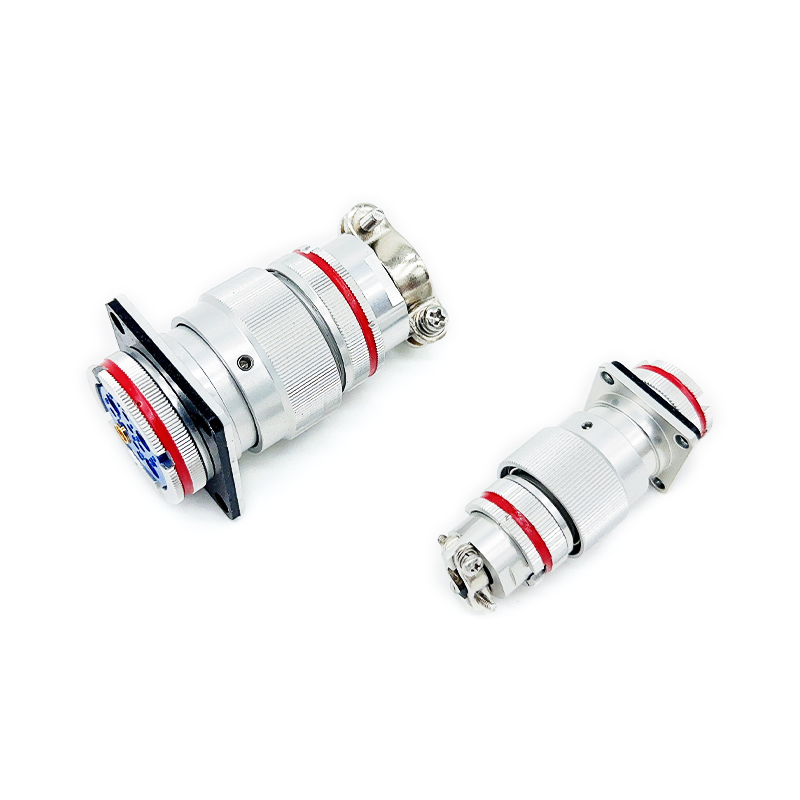

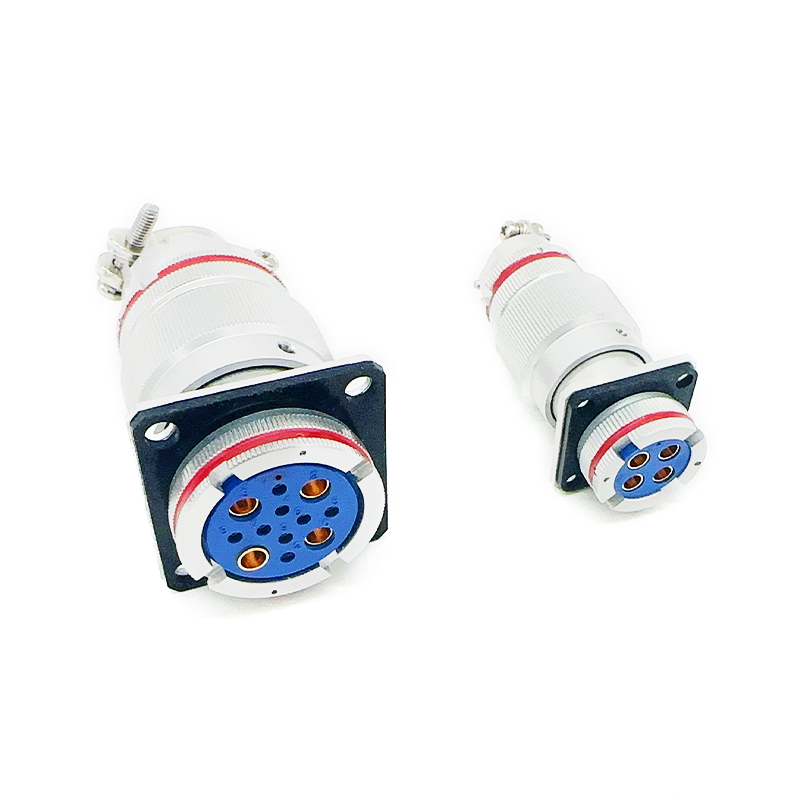

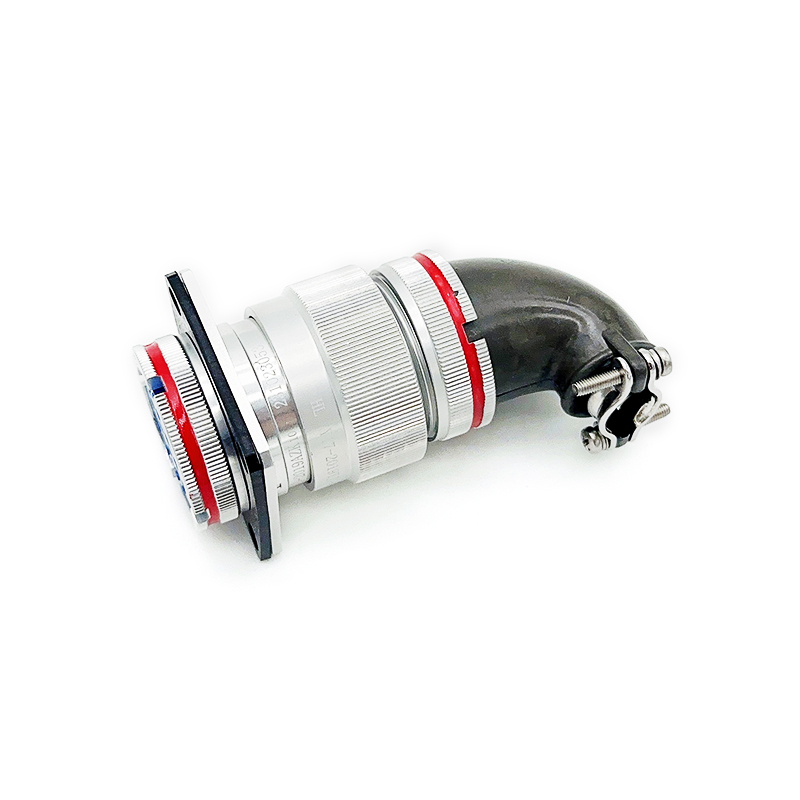

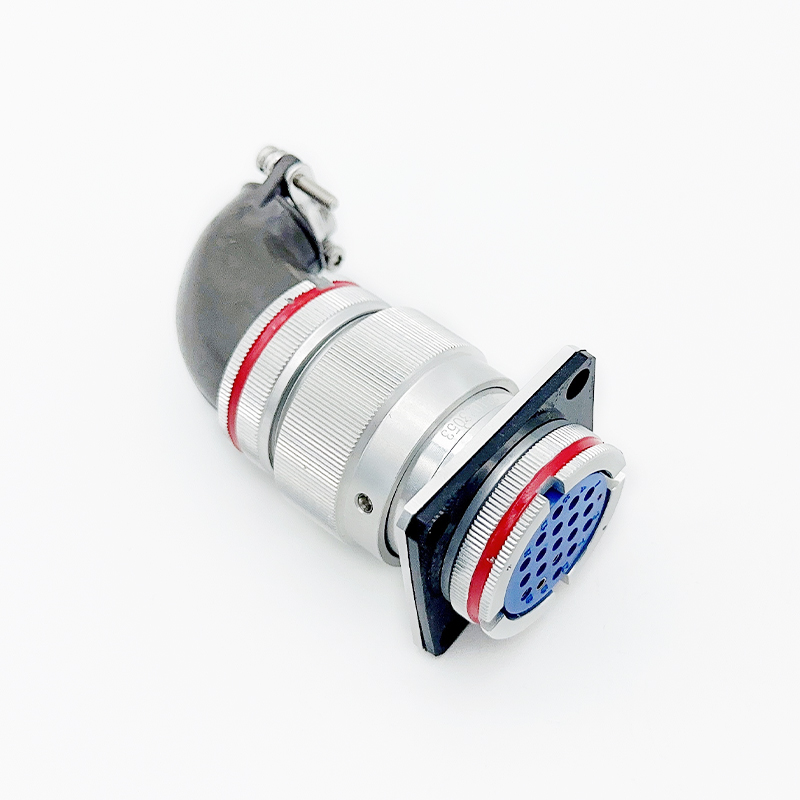

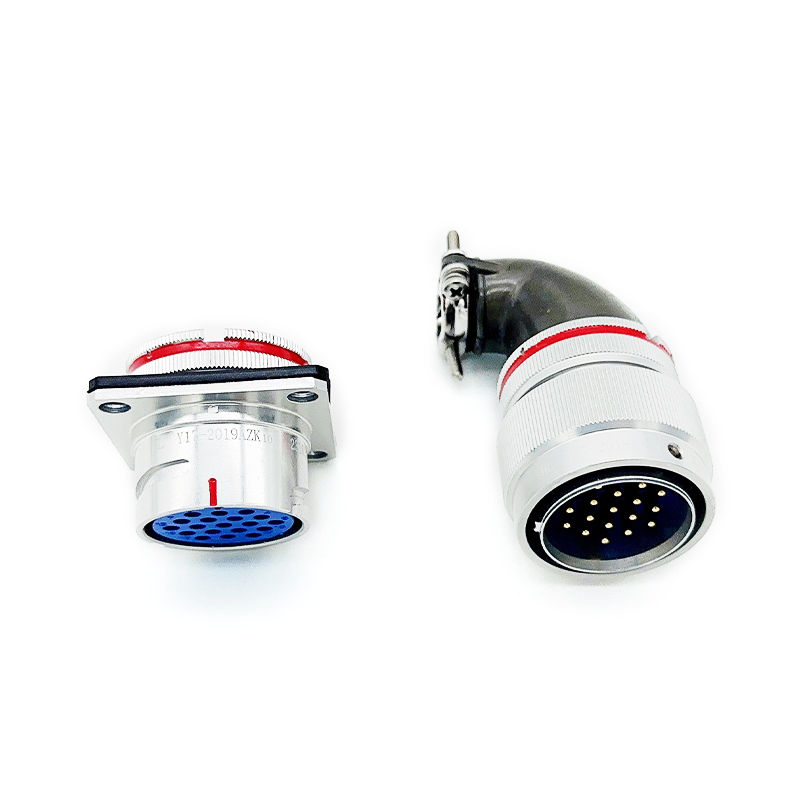

Y17 series-Circular Electrical Connector Manufacturers

Product introduction

●Widely used in circuit connections between various electrical equipment

●Bayonet connection method

●Enforce corporate standards:



Main technical performance

【Mechanical properties】

——Vibration: sine vibration 10Hz-2000Hz, acceleration 98m/s²

——Impact: acceleration 490m/²

——Collision: 392m/s²

——Mechanical life: 500 times

【Environmental performance】

——Working temperature: -55℃~+125℃

——Relative humidity: 90% ~ 95% when the temperature is 40'℃±2℃

——Working air pressure: 101.33KPa-4.4KPa

[Electrical performance]

Withstand voltage:



Condition

Withstand voltage

Sea ​​level

1000V

21336m(4.39KPa)

250V



——Insulation resistance: not less than 1000MΩ

——Contact specifications:



Contact Specifications mm

Rated working current A

Contact resistance mΩ

Welding wire cup inner diameter m

Φ1.5

10

≤3

Φ2

Φ2.5

25

≤1.5

Φ3.5

Φ3.5

30

≤1

Φ4.5

Φ5

75

≤0.7

Φ6

Φ7

100

≤0.5

Φ7.5

Φ10

200

≤0.4

Φ13.5

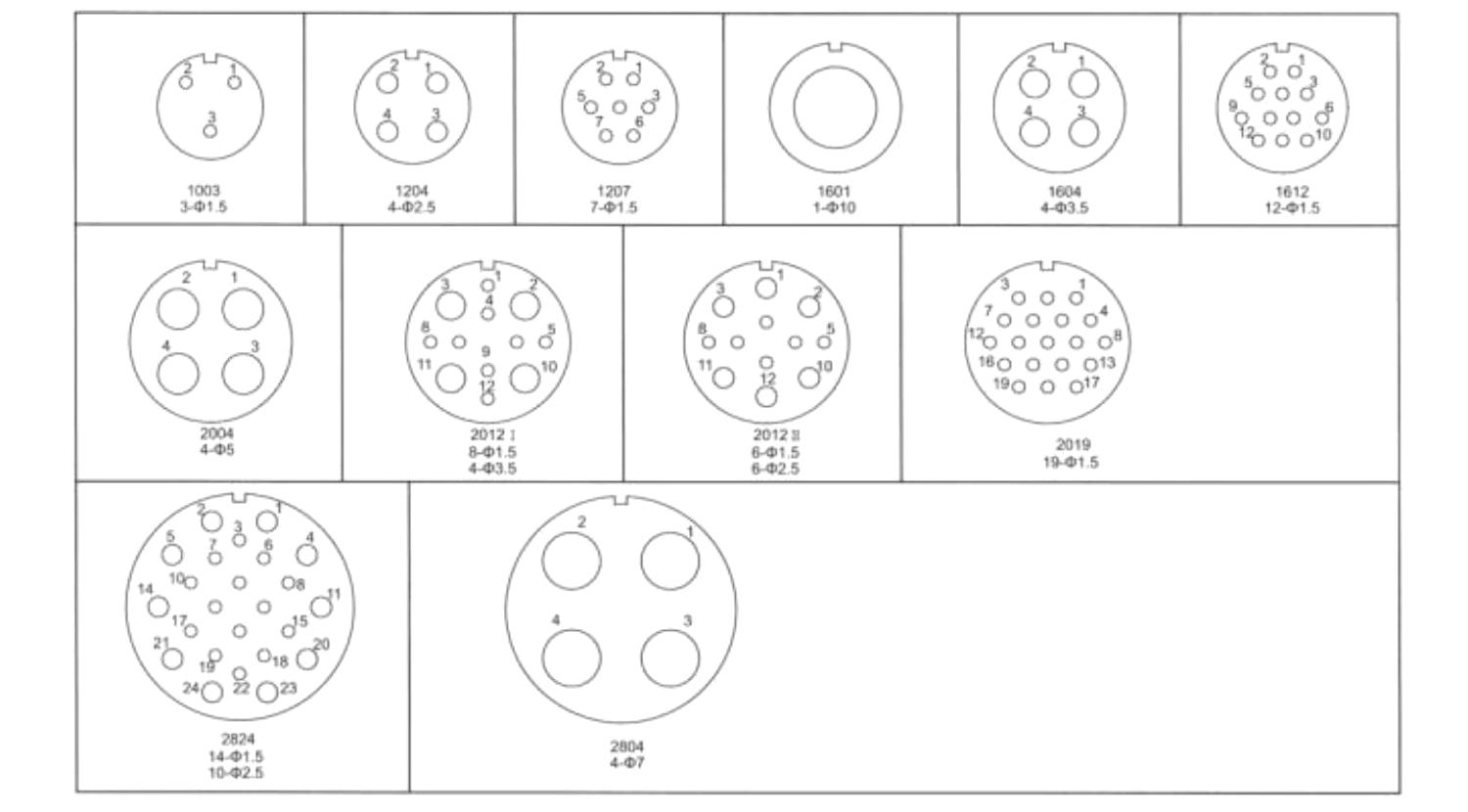

Arrangement of insulator holes (view of insulator insertion surface with holes)
