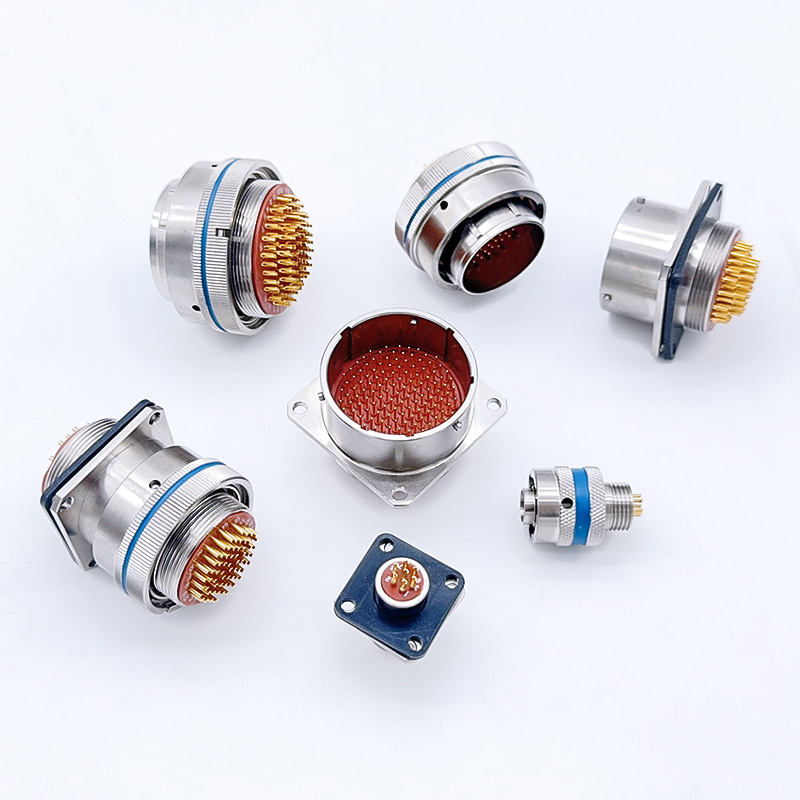

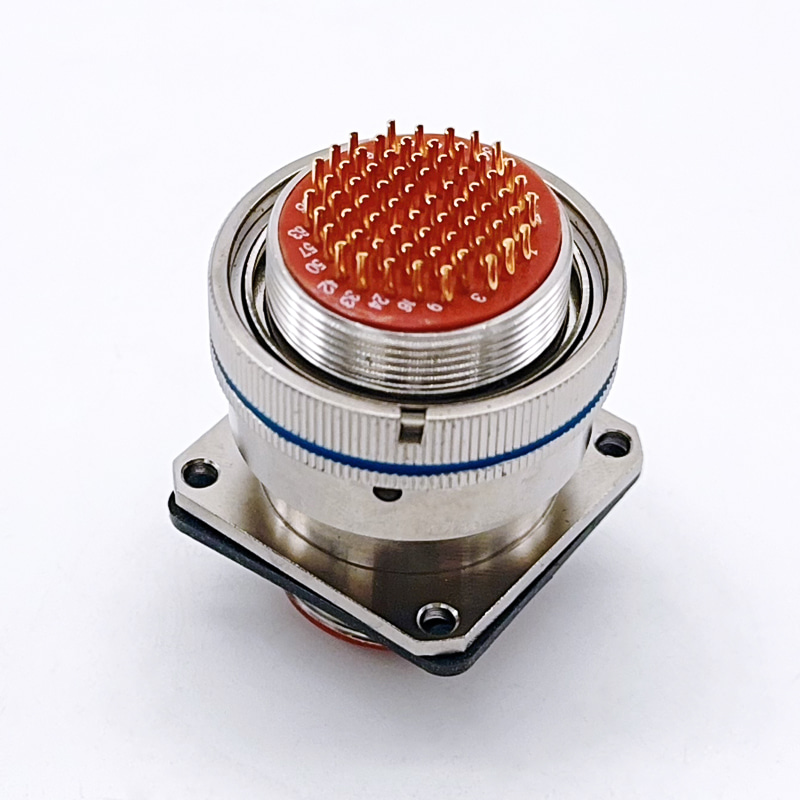

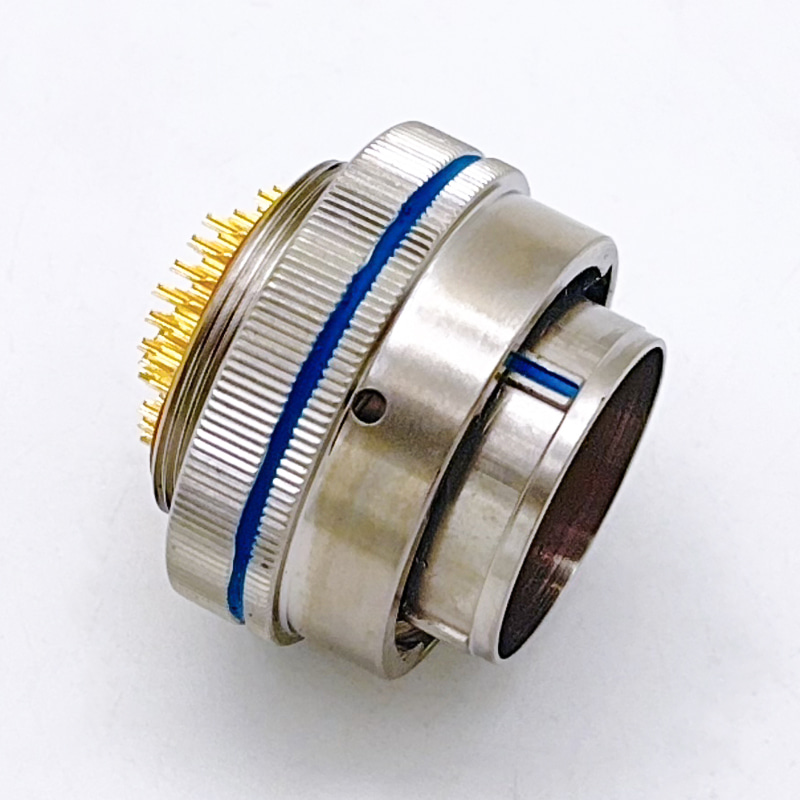

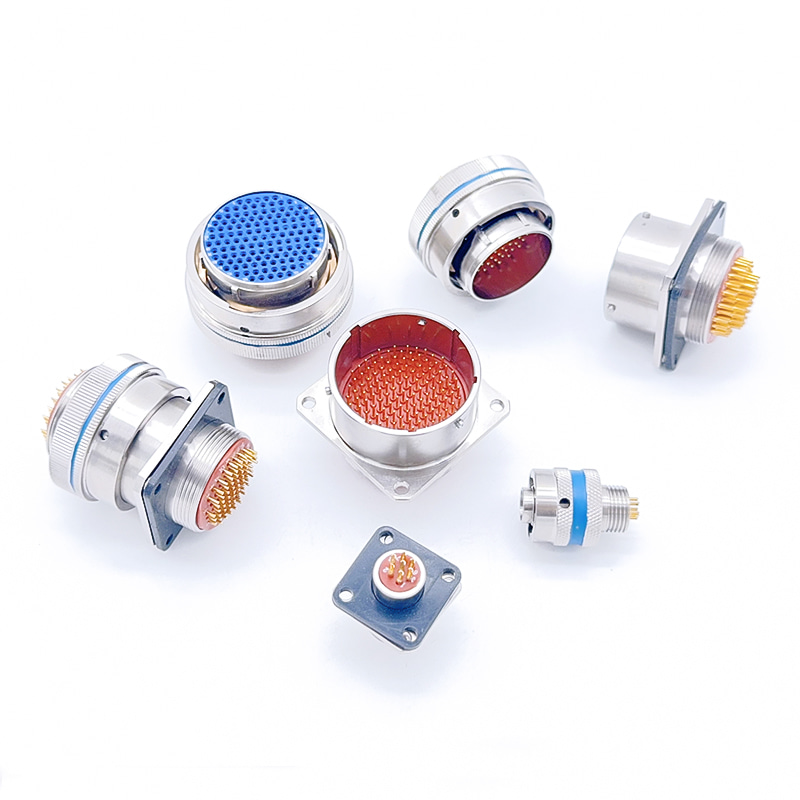

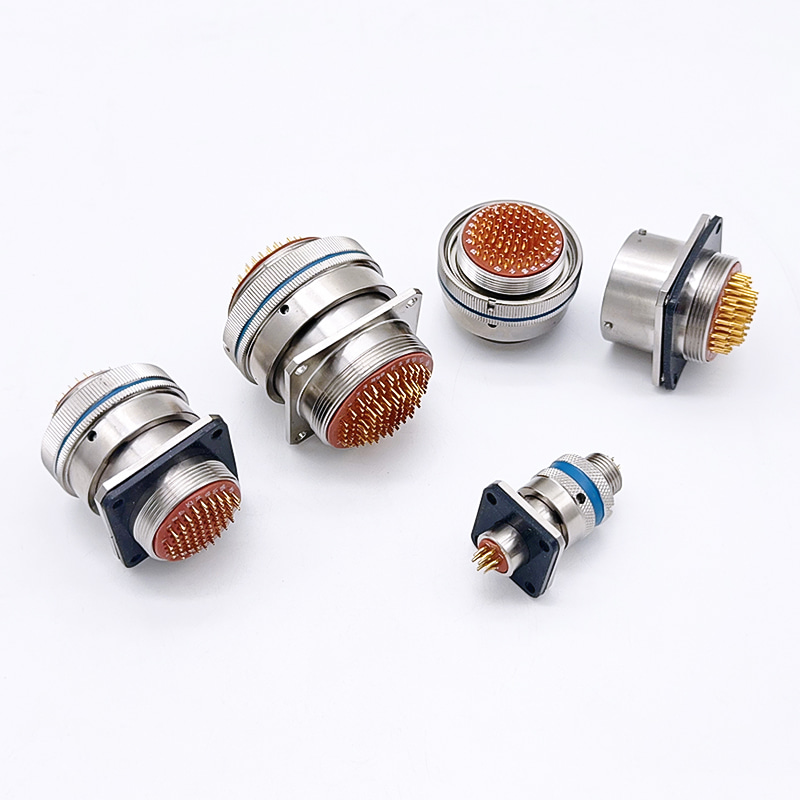

XCF series-Circular Electrical Connector Manufacturers

XCF series electrical connectors are equivalent to the MIL-C-38999-1 series standard. How can we ensure that the products meet this standard in the actual production process?
1. Raw material selection and pretreatment
High-strength aluminum alloy shell: The shell of the XCF series electrical connector is made of high-strength aluminum alloy material that meets aviation-grade standards. This material has excellent mechanical properties and corrosion resistance, and can effectively resist stress corrosion cracking in harsh environments. Before the raw materials are put into storage, Henglian Company uses a spectrometer to strictly test the composition of the aluminum alloy to ensure that the material composition meets the design requirements. The microstructure of the material is observed through a metallographic microscope to ensure that the material is defect-free and the grains are fine and uniform, providing a solid foundation for subsequent processing and performance.
Contact and socket materials: The contact is made of copper alloy with high conductivity and low resistivity, and the socket is made of spring hole material with high elasticity and wear resistance. These materials have been strictly screened and tested to ensure that their physical properties and chemical stability meet the standard requirements. In addition, all materials must undergo special treatments such as moisture-proof, salt spray-proof, and mildew-proof to improve the environmental adaptability of the product.
2. Production, processing and assembly
CNC precision processing: The CNC production workshop equipped by Henglian Company has high-precision CNC machine tools, which can realize precision processing of aluminum alloy shells and contacts, including drilling, milling, turning and other processes. The processing accuracy can reach micron level, ensuring that the dimensional accuracy and form and position tolerance of each component meet the MIL-C-38999-1 standard.
Welding and assembly process: The contact parts adopt advanced automated welding technology to ensure that the welding points are firm, the contact resistance is small and stable. The assembly of sockets and plugs adopts precise assembly technology to ensure that the bayonet connection structure is stable and reliable, and the plugging and unplugging are smooth, meeting the requirements of quick connection and separation. Henglian's assembly workshop has complete dust and anti-static measures to ensure that the entire assembly process is not affected by external pollution.
3. Quality Inspection and Certification
Comprehensive inspection system: Henglian has a complete inspection system, including but not limited to spectrometer, metallographic microscope, universal tensile testing machine, low temperature impact testing machine, salt spray tester, insulation resistance tester and voltage tester, etc. These equipment can conduct comprehensive inspections on the chemical composition, physical properties, environmental adaptability, etc. of the products. Especially for the XCF series electrical connectors, the low temperature impact test verifies its impact resistance under extreme temperatures, and the salt spray test evaluates its corrosion resistance to ensure that the product can work stably and long-term in harsh environments such as ships, aerospace, etc.
National military standard quality management system: Henglian has passed the GJB9001C-2017 national military standard quality management system certification, as well as ISO 9001, ISO/TS16949 and other international quality management system certifications, which means that the company's production process, quality control, after-sales service and other aspects have reached the highest national and international standards. These certifications are not only a recognition of the company's strength, but also a strong guarantee of product quality.
4. Environmental adaptability test
Temperature cycle and humidity test: Place the XCF series electrical connector in an environment simulating extreme temperature and humidity, and conduct temperature cycle test and humidity test to verify its working performance and reliability within the operating temperature range of -55℃ to +125℃ (or +200℃, special note required) and under high humidity conditions.
Vibration and shock test: According to the MIL-C-38999-1 standard, the product is subjected to vibration and shock test to simulate the vibration and shock environment that it may encounter during transportation, installation and use, to ensure that the mechanical life of the connector meets the requirement of ≥1000 plug-in and unplug times, and the connection is stable and reliable.
