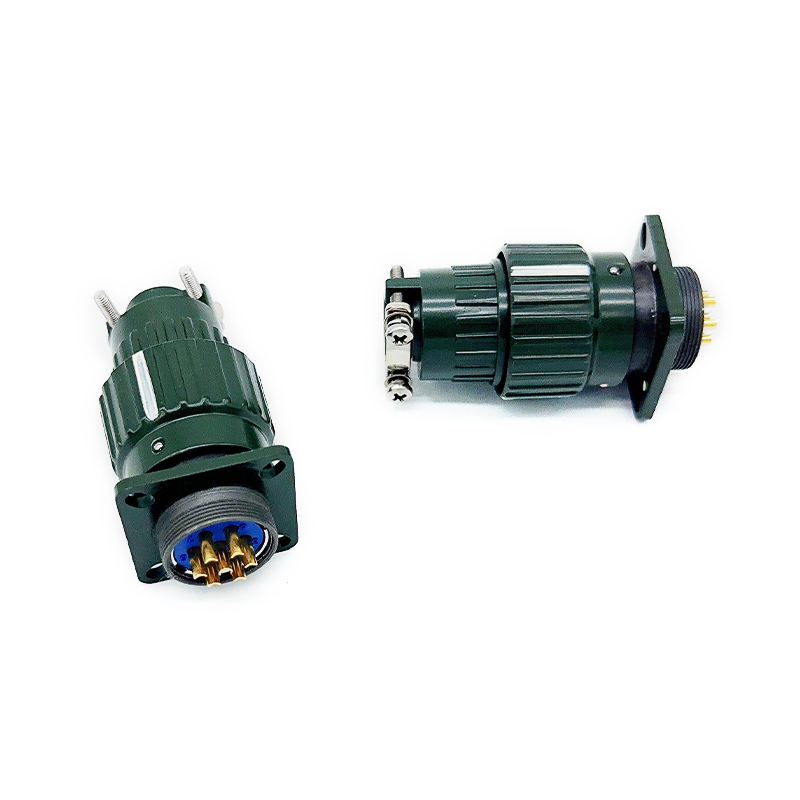

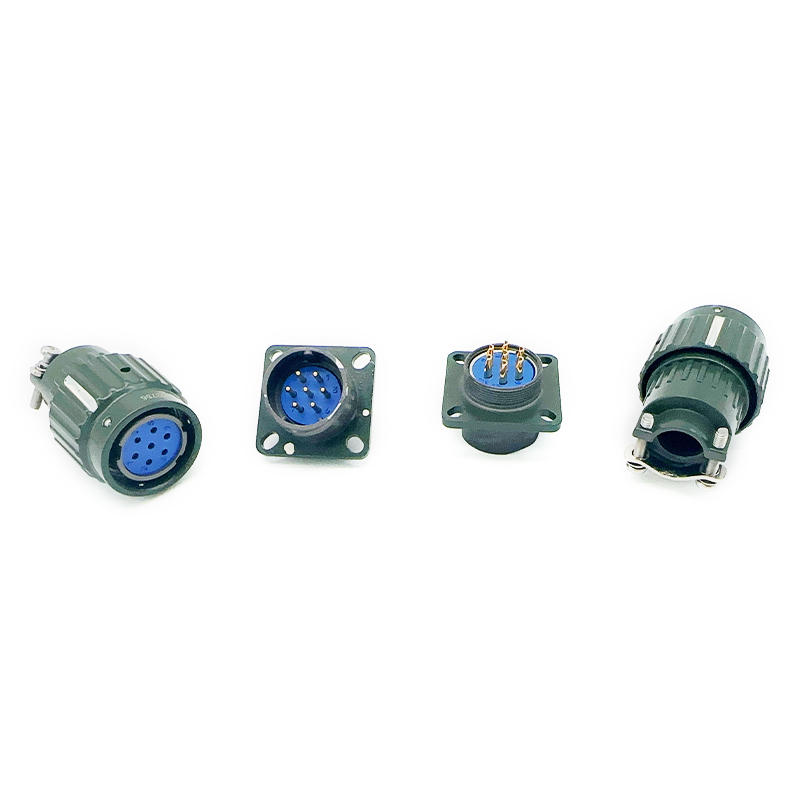

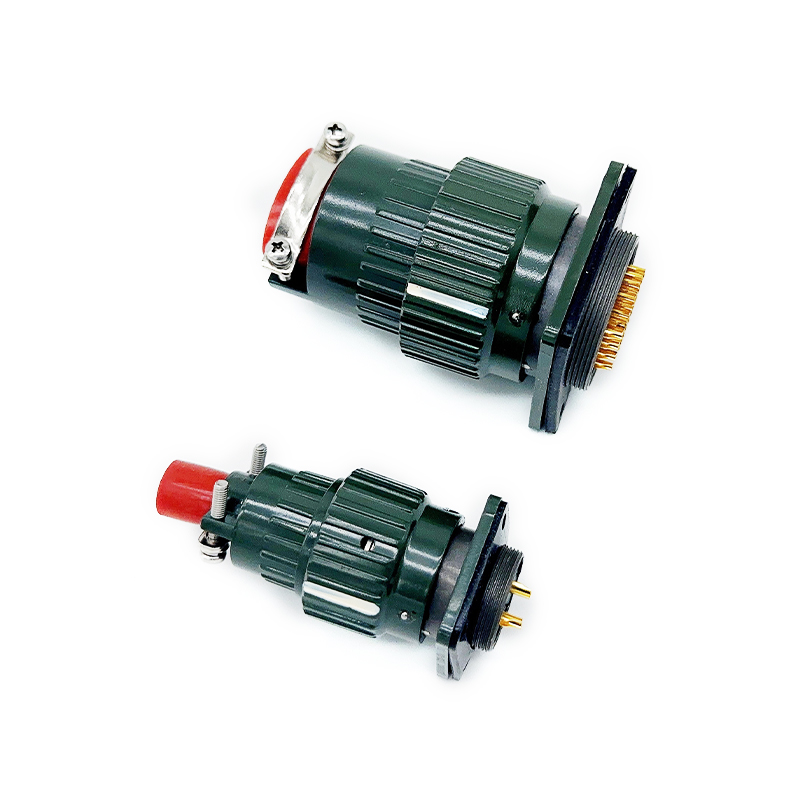

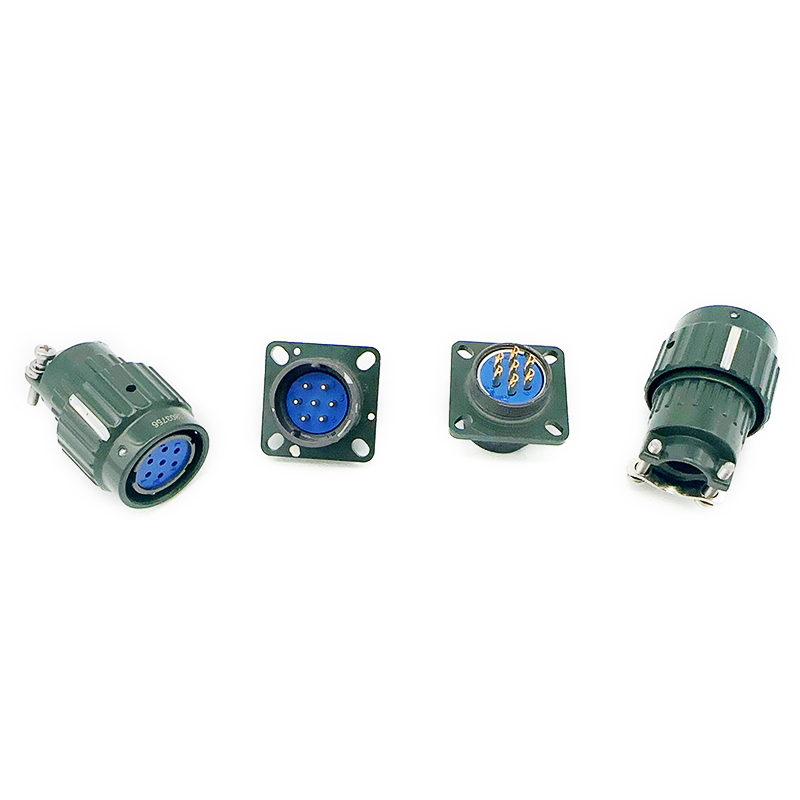

LYP series-Circular Electrical Connector Manufacturers

●This series combines the advantages and functions of Y2 series and P-type electrical connectors.

●It has Y2 bayonet connection structure and adopts the contact arrangement pattern of P-type connector.

●It has the characteristics of small size, light weight, wide contact type spectrum and quick separation.

●The LYP series shell is processed by high -strength aluminum alloy materials.

●The LYP series can be exchanged with the YP series. It is an ideal replacement product for the old -fashioned "P" type connector.

●Widely applicable to the line connection between electrical equipment and various instruments and instruments.

Main technical characteristics

Environmental performance

-Working temperature:: welding type -55℃~125℃, crimping type -55℃~200℃

-Relative humidity: 95% at 40℃

-Working altitude: 20,000m above sea level

-Vibration: frequency 10Hz～2000Hz  Acceleration 147m/s² (YP series) 196m/s² (LYP series)

-Impact: acceleration 490m/s²

-Air tightness: air pressure resistance ≥0.2MPa (only sealed sockets)

Electrical properties

-Contact resistance and rated current



Contact specifications (mm)

Contact resistance (mΩ)

Rated current (A)

Φ0.8

≤8

3

Φ1.0

5

5

Φ1.5

≤3

10

Φ2.5

≤1

25

Φ3.5(YP series only)

≤1

50

Φ5.5(YP series only)

≤1

100



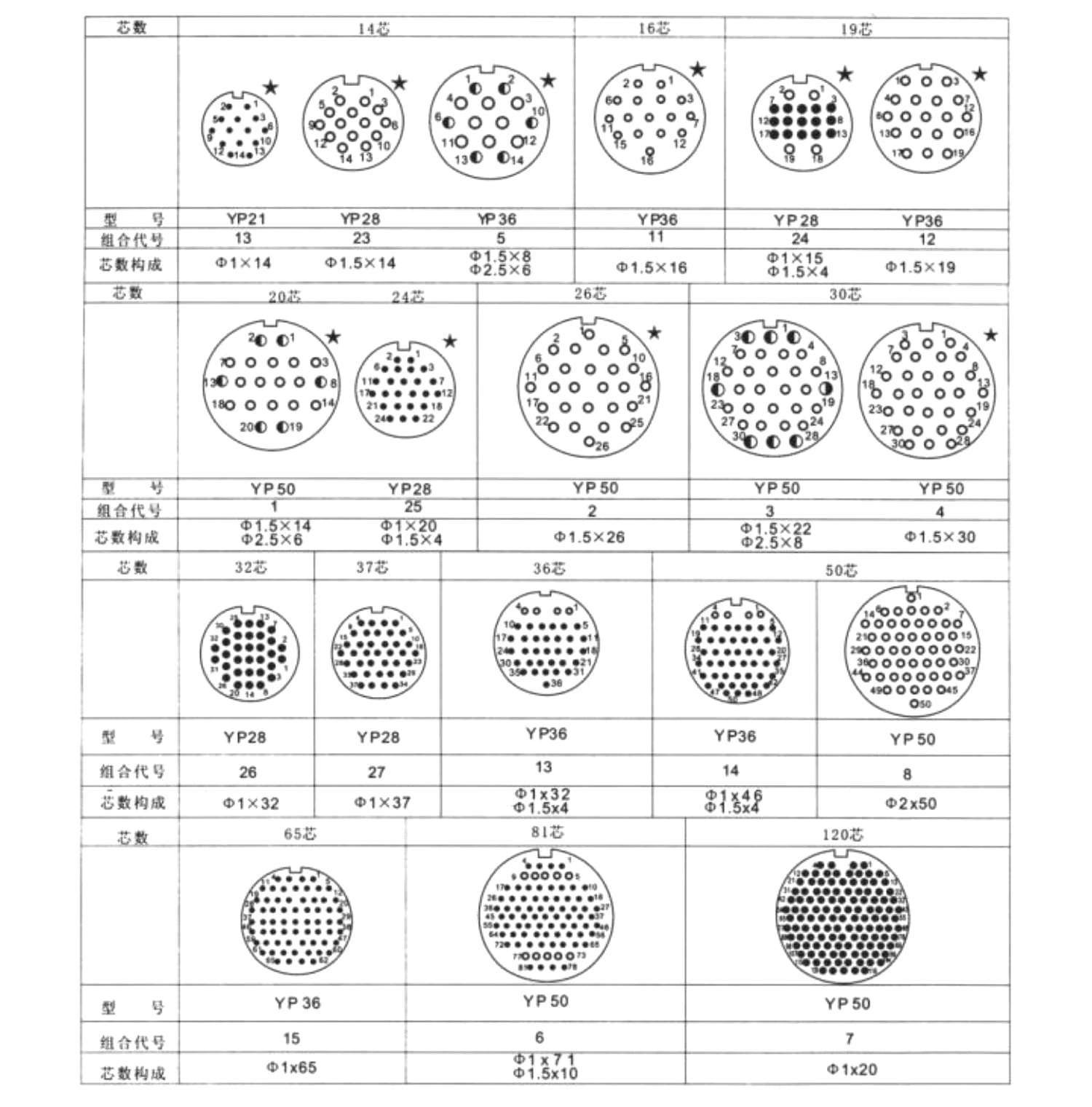

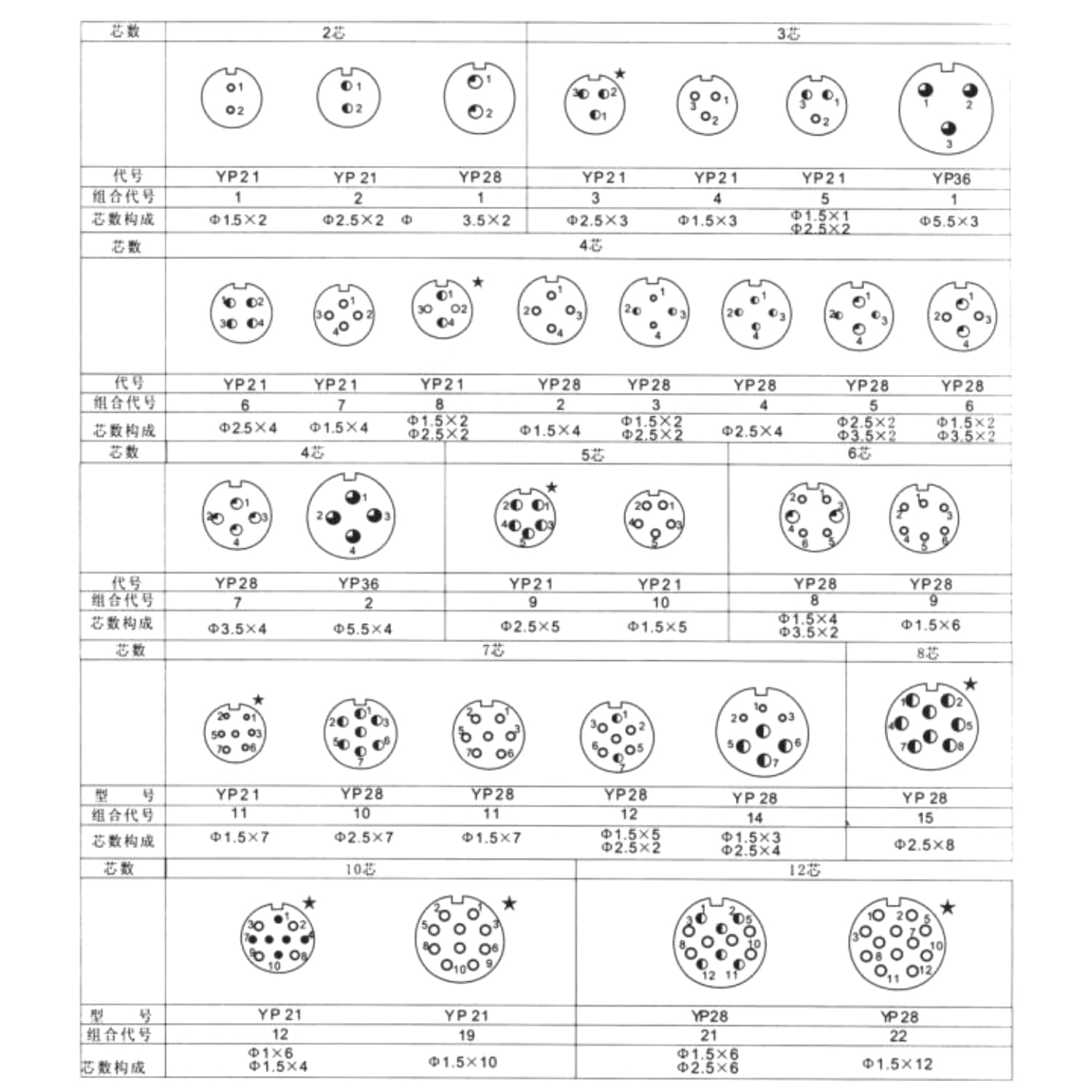

-Contacts and withstand voltage (LYP series only)



Number of contacts

Withstand voltage (V)

3、4、5、7、10、14、19

1500

24、32、36、37、50、65、81、120

1000



-Rated voltage, withstand voltage and insulation resistance



Working environment

Rated voltage(V)

Withstand voltage (V)

Insulation resistance (MΩ)

Normal temperature and pressure

500

1500

≥3000

Damp and hot

500

750(YP series ) 1125(LYP series )

20

High temperature

500



≥500

Low pressure conditions  4.39KPa

250

750(YP series) 350(LYP series )





Note: When the number of contacts is 32, 37, 65, 81, or 120, the withstand voltage is 1000V under normal temperature and pressure conditions.

- Press-fit pinhole axial load (refer to national military standard GJB101A)



Contact diameter(mm)

Minimum axial load(N)

1.0

50

1.5

60

2.5

70



-Contact crimp barrel inner diameter and adapting wire cross-section



Contact diameter (mm)

Type

Crimp barrel inner diameter (Φ)

Adapted conductor cross section(mm²)

1.00

A

0.8

0.2-0.4

B

1.2

0.5～0.8

C

1.6

1~1.5

1.5

A

0.8

0.2～0.4

B

1.2

0.5～0.8

C

1.6

1～1.5

D

2.0

>1.5

2.5

A

0.8

0.2～0.4

B

1.2

0.5～0.8

C

1.6

>1~1.5

D

2.0

>1.5



Mechanical properties

-Casing: aluminum alloy die-casting (YP series) high-strength aluminum alloy material (LYP series)

-Plating: Sand nickel plating, spray painting (YP series), anodizing coloring, nickel plating (LYP series)

-Insulator: heat-resistant thermoplastic or thermoset material

-Contacts: Copper alloy material with gold and silver coating

-Mechanical life: 500 times
