J599E8 series-Fiber Optic Electrical Connectors Manufacturers

Product introduction

◆The interface size complies with GJB599B (MIL-DTL-38999) III series, and the performance complies with ARINC801 standards

◆Applicable to aviation, electronics, ships and other systems for multi-channel optical communication

◆Using beam expansion lens packaging, the optical fiber docking mode is non-contact

◆The ceramic sleeve is a closed O-type, which greatly improves the plug-in and unplug life of the product.

◆Due to the adoption of beam expansion technology, optical fiber contacts are highly resistant to dust and dirt.

◆Contact installation and removal tool M81969/14-03, easy to operate



Main technical indicators

● Mechanical properties

Mechanical life: 2000 insertion and removal cycles

Impact: Peak acceleration 2940m/s², duration 3ms, speed change rate 5.61m/s

Vibration: 10Hz～2000Hz, power spectral density 1.0G2/Hz, acceleration root mean square value 23.1G

Tensile strength: ≥68N (2mm contact jumper)

●Air-tightness (suitable for air-tight adapter sockets):

Gas leakage rate ≤1× 10−9 Pa.m³/s, internal and external pressure difference is 1 atmosphere

●Optical performance

Insertion loss: ≤0.6dB@850nm; ≤1.2dB@1310nm

Return loss: ≥20dB@850nm; ≥45dB@1310nm

●Environmental performance

Temperature range: -55℃ ~ +125℃ (according to optical cable temperature)

Salt spray: Category K: 500h

Category F: 48h

Category W: 500h

MW category: 192h (acidic atmosphere)

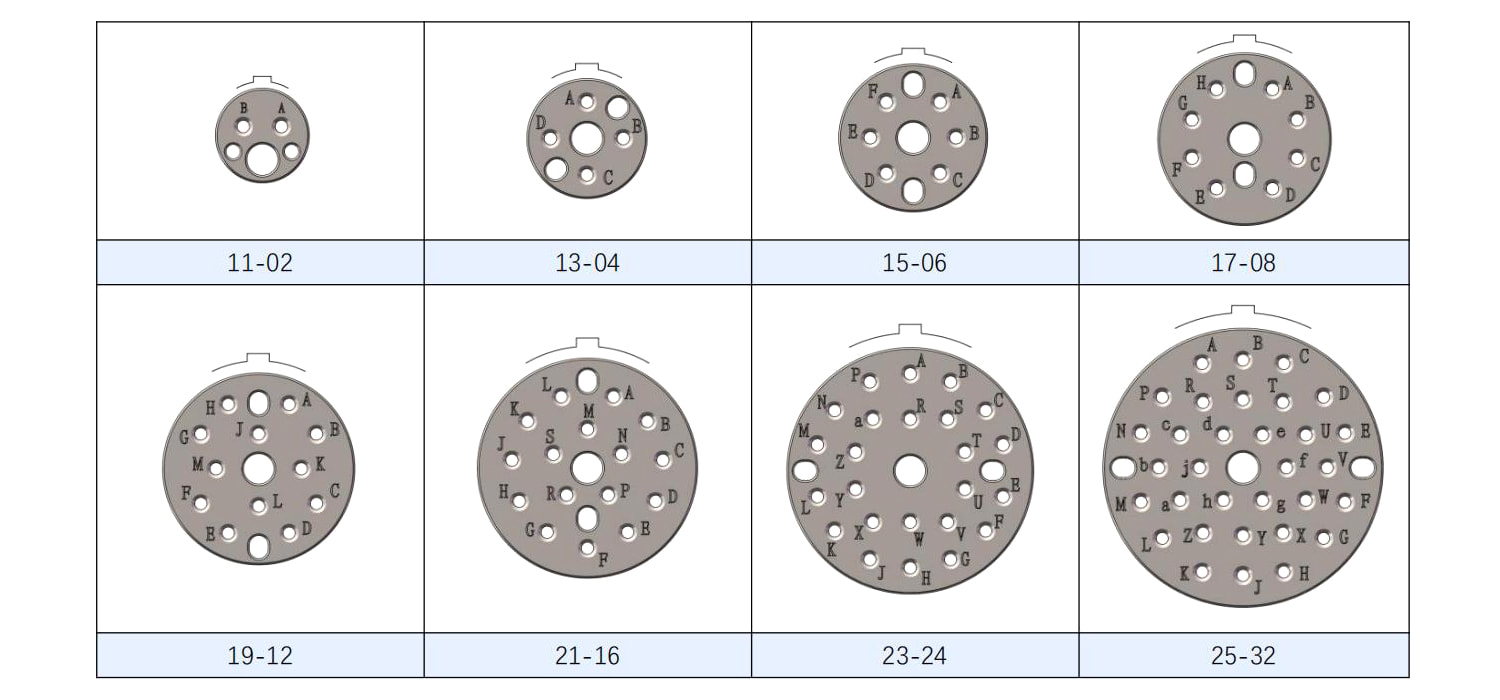

Contact arrangement (taking plug mating surface as an example)



ABOUT US

Power-efficient electrical connectors.

Taizhou Henglian Electric Co., Ltd. was founded in April 2011, is located in the "Ginkgo town" reputation of the riverside city - Taixing City, is specialized in electrical connector development, production, sales of high-tech enterprises.

We are China Custom J599E8 series-Fiber Optic Electrical Connectors Manufacturers and OEM/ODM J599E8 series-Fiber Optic Electrical Connectors Suppliers.

There are more than 150 employees, including more than 30 people with various professional and technical titles, fixed assets of 30 million yuan, with a variety of mechanical processing equipment and testing equipment.

In recent years, the company has been rated as "Top Ten enterprises in Zhangqiao Town", "Top Ten enterprises in Zhangqiao Town", and won the "Taixing Outstanding Contribution Award" and other titles.

At present, the company's leading products are conforming to the military standard Y11, Y17, Y27, Y50, YGD, YLH, YM, YW, J599I, J599II, J599III, XC series circular electrical connectors, and J7, J14, J20J, J29A, J30J, J63A series rectangular electrical connectors. It is in line with the national standard Y2, Y4, YP, LYP, YD, and other series of circular electric connectors. The products cover the general staff, final assembly, sea installation, Second Artillery, weapons, aerospace and other military varieties nuclear energy, railway, national power grid, oil earth geophysical exploration, and other fields. The company has a technical center, and quality inspection center, with sophisticated production equipment, modern inspection facilities, and inspection and testing means. The products have the characteristics of three-defense function, high density, high reliability, electronic compatibility, etc., and can develop and produce various kinds of special electrical connectors for various users to meet customer needs.

The company is a qualified supplier of military electronic components, Marine equipment and aerospace of the Communications Department of the General Staff and the Ministry of Information Industry, and has passed the GJB9001C-2017 weapons and equipment quality management system certification and the second-level secret certification of weapons and equipment production and research units.

The company always adhere to the "integrity-based, unity and hard work, realistic innovation, the pursuit of excellence" spirit of enterprise, adhere to the concept of "brand create value", dedicated to customer service, so that Henglian quickly become the leader in the peer.

Taizhou Henglian Electric Co., Ltd. sincerely welcome domestic and foreign customers to visit and negotiate business!

Contact Us
  • Factory
    Factory
  • Production line
    Production line
  • Assemble
    Assemble
  • Wiring Harness Workshop
    Wiring Harness Workshop
  • Product design
    Product design
  • Inspection equipment
    Inspection equipment
  • Inspection equipment
    Inspection equipment
  • Assemble
    Assemble
  • Factory Area
    Factory Area
  • Honor Wall
    Honor Wall
  • Product Display Cabinet
    Product Display Cabinet
  • Training
    Training
  • Training
    Training
  • Outstanding Contribution Award
    Outstanding Contribution Award
  • 10th Anniversary Sanya Trip
    10th Anniversary Sanya Trip
  • Exhibition
    Exhibition
  • Exhibition
    Exhibition
  • Exhibition
    Exhibition
Certificate Of Honor
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
Insight
Industry Knowledge

What are the protection levels and anti-interference performance of the J599E8 series fiber optic connectors?

Taizhou Henglian Electric Co., Ltd. has made the J599E8 series fiber optic electrical connectors outstanding in protection level and anti-interference performance through precise design and advanced manufacturing processes, and is suitable for various extreme environments and high-demand applications. Whether it is waterproof, dustproof, corrosion-resistant, or anti-electromagnetic interference, the J599E8 series can ensure the stability and reliability of the signal and provide users with efficient and long-life connection solutions.

The J599E8 series fiber optic connectors are designed and manufactured with the harshness of their application environment in mind, so they have a high level of protection performance. According to industry standards, these connectors usually have the following protection features:

Waterproof and dustproof: This series of connectors usually meets IP65, IP67 or higher protection levels, which means that they have high waterproof and dustproof capabilities and can maintain stable performance in harsh environments such as moisture and dust. It is particularly suitable for use in applications that require extremely high protection, such as marine, oil exploration, and aerospace.

Anti-corrosion: The J599E8 series fiber optic connectors use corrosion-resistant materials and surface treatment technology, which can effectively prevent corrosion caused by chemicals or moisture in the environment, extending the service life of the product.

High and low temperature resistance: The design of this connector also ensures its stability in high or low temperature environments, and it can continue to work at extreme temperatures without affecting the quality of signal transmission.

Anti-interference performance
The J599E8 series fiber optic connectors have excellent anti-interference performance, especially in anti-electromagnetic interference (EMI), which is specifically manifested in the following aspects:

Electromagnetic compatibility (EMC): As a company specializing in the production of high-reliability electrical connectors, Taizhou Henglian Electric Co., Ltd. uses electronic compatibility technology in the design of the J599E8 series fiber optic connectors to reduce the impact of electromagnetic interference on fiber optic signal transmission. The metal shell and grounding design of the connector help shield external electromagnetic waves and ensure the stability of fiber optic signal transmission.

High-density connection design: The J599E8 series connectors use a high-density connection structure, which helps reduce interference caused by poor contact or unstable signal transmission. At the same time, the connector is designed to ensure the accuracy and stability of each connection point, thereby effectively reducing signal loss and the impact of external noise.

Shielding effect: The J599E8 series uses specially designed shielding measures to effectively resist electromagnetic interference from other devices or systems. This allows the connector to maintain signal purity and efficiency in high-interference environments.
