Custom J14 series-Rectangular Electrical Connector

Home / Products / Rectangular Electrical Connector / J14 series
Recommended products
CALL OUR OFFICE

‪+86 176 0151 5794‬

E-MAIL

[email protected]

J14 series-Rectangular Electrical Connector Manufacturers

Product introduction

●Belongs to low-frequency electrical connectors

●Double insurance locking mechanism is a fast and reliable connection locking form among rectangular electrical connectors.

●Round corners anti-reverse insertion design, small size and light weight

●When the termination type is solder cup type, the diameter of the soldering wire hole is 60.6mm, and the recommended wire core cross-sectional area for soldering is 0.15mm², but should not exceed 0.2mm²; when the termination type is soldering pin type, the diameter of the soldering pin is 60.6 -60.7mm

●This series of products has complete specifications, including pin type and hole type plugs, pin type panel type, hole type panel type socket, pin type cable type,
Socket type cable socket; when the terminal part is solder pin type, it is divided into direct plug-in PCB form and 90° bent PCB plug-in type

Use :

Suitable for electrical signal connections between various electronic instruments, meters and cables

Usage environment:

Working temperature: -55℃~+125℃

Relative humidity: 90%~95% at 40±2℃

Atmospheric pressure: 101.3kPa~1.33Pa

Sine vibration: 10~2000Hz, acceleration 196m/s² Impact: 980m/s² Acceleration: 780m/s²

Implementation standards: Comply with national military standard GJB142A-94

Main technical performance

Rated current: 3A

Contact resistance: before life test: ≤6mΩ

After life test: ≤10mΩ

Insulation resistance: Under standard conditions: ≥2000MΩ

Under high temperature conditions: ≥ 1000MΩ

Under humid conditions: ≥20MΩ

Withstand voltage

Under standard conditions: 800V

Under low pressure conditions: 250V

Mechanical life: 500 times

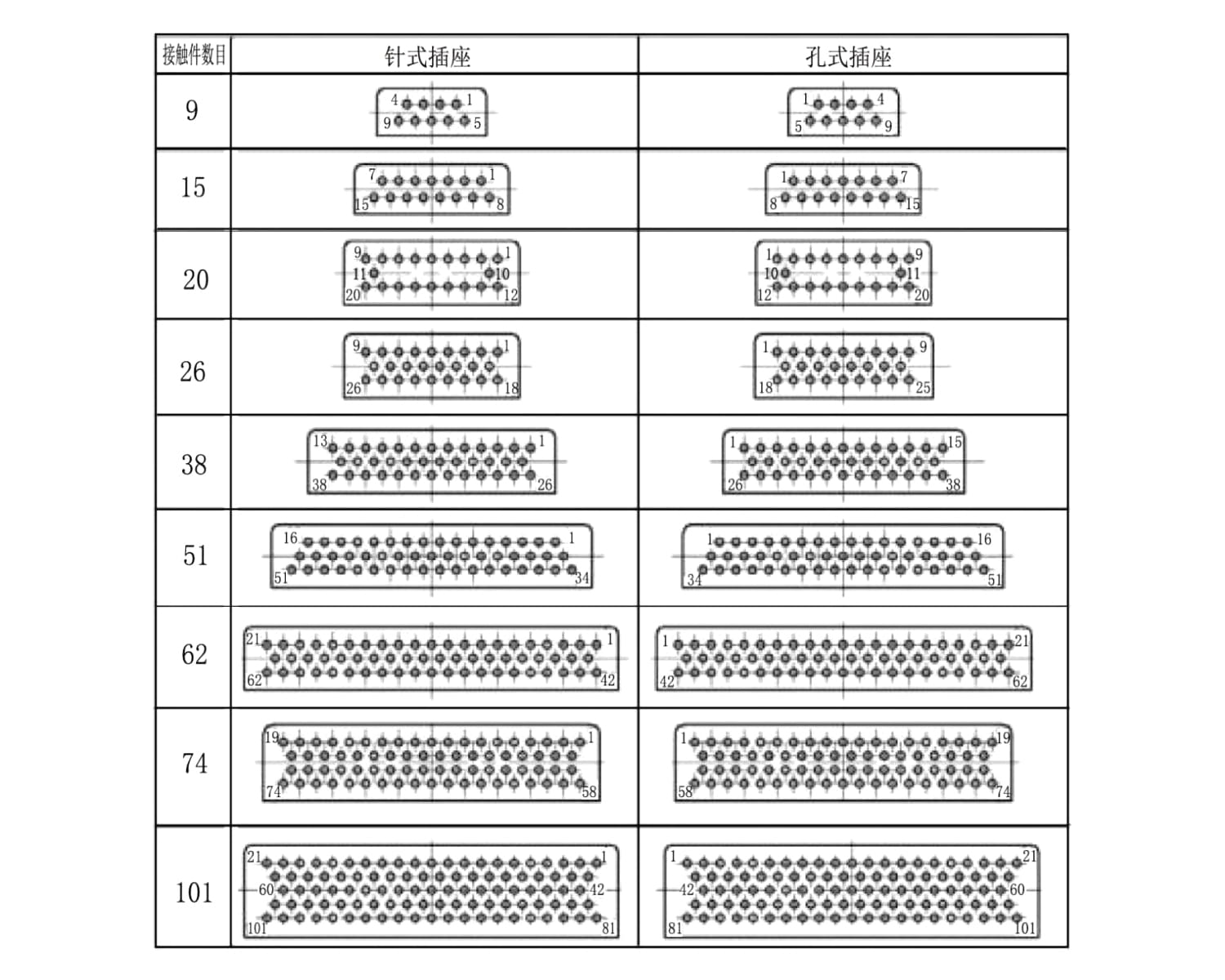

Spectrum arrangement (view of socket insertion interface)

Note: The rated current is 3A
