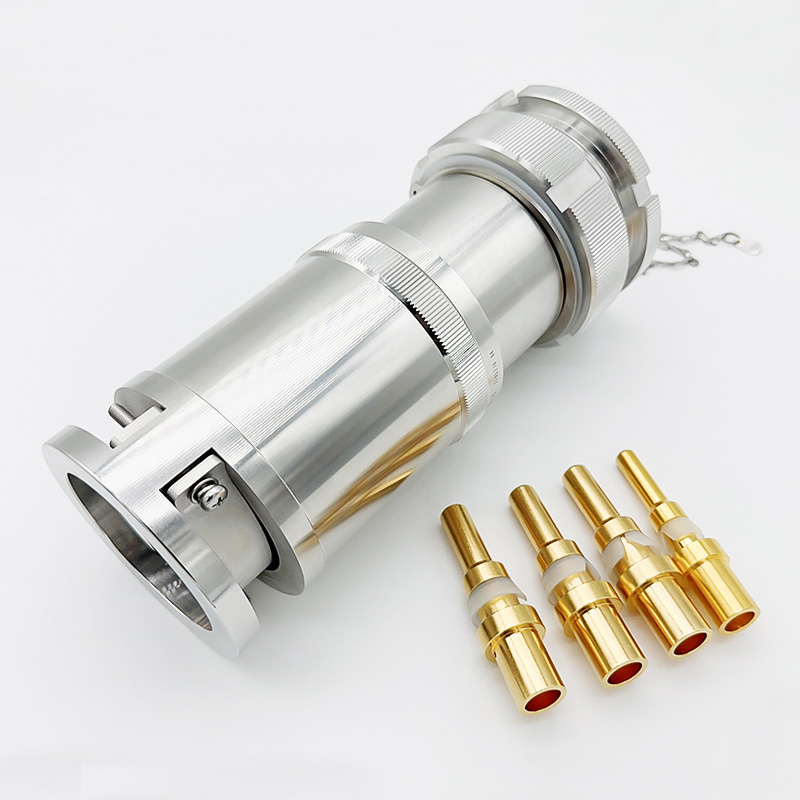

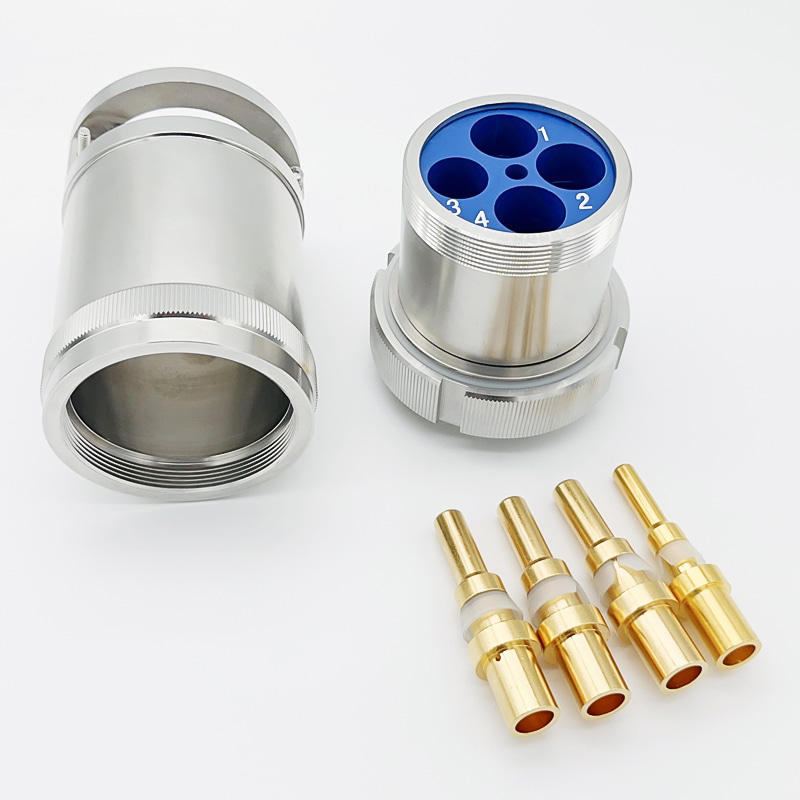

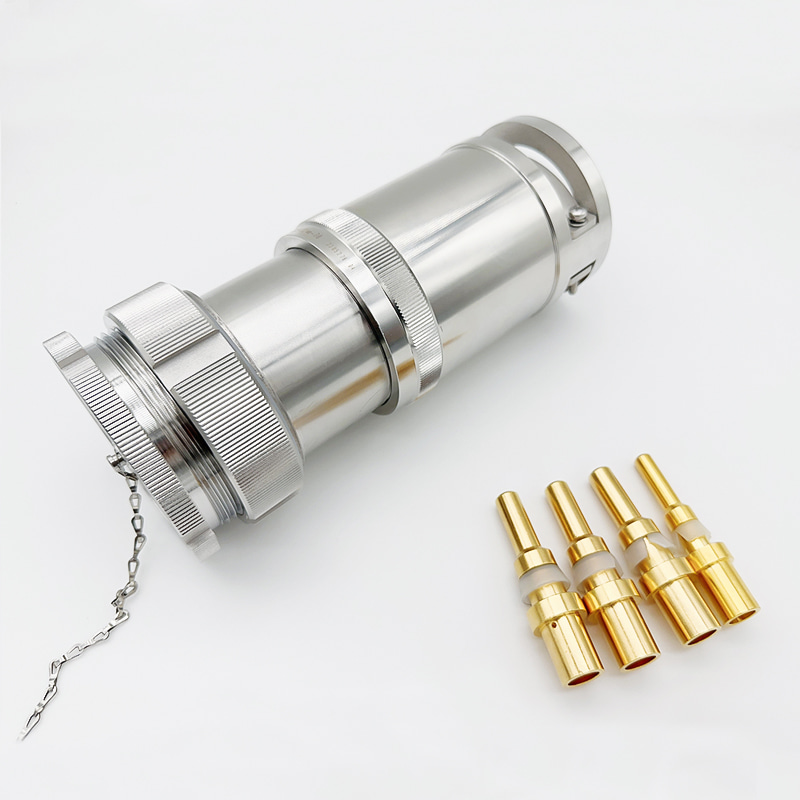

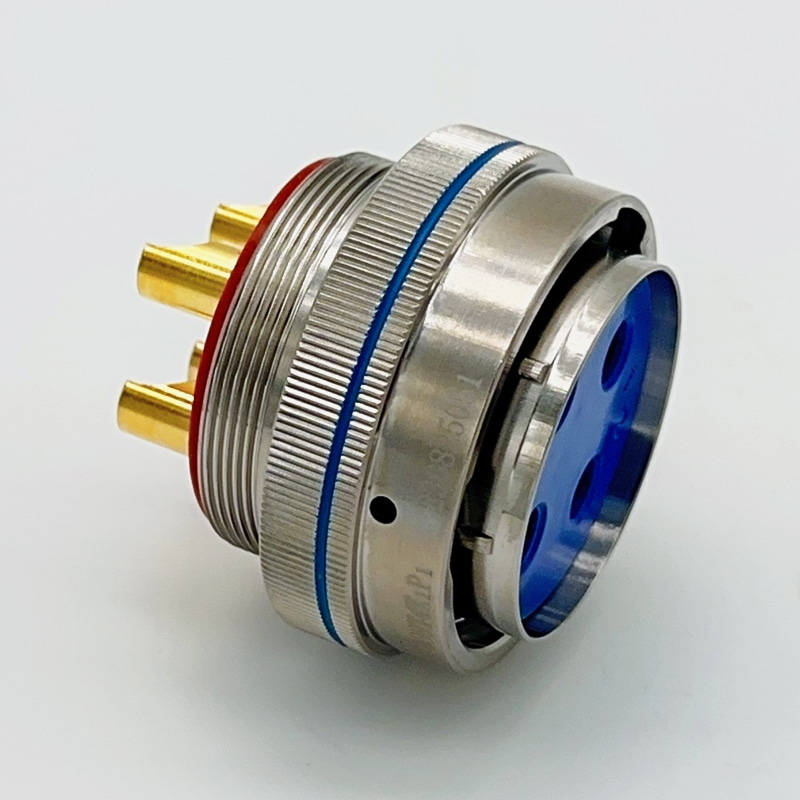

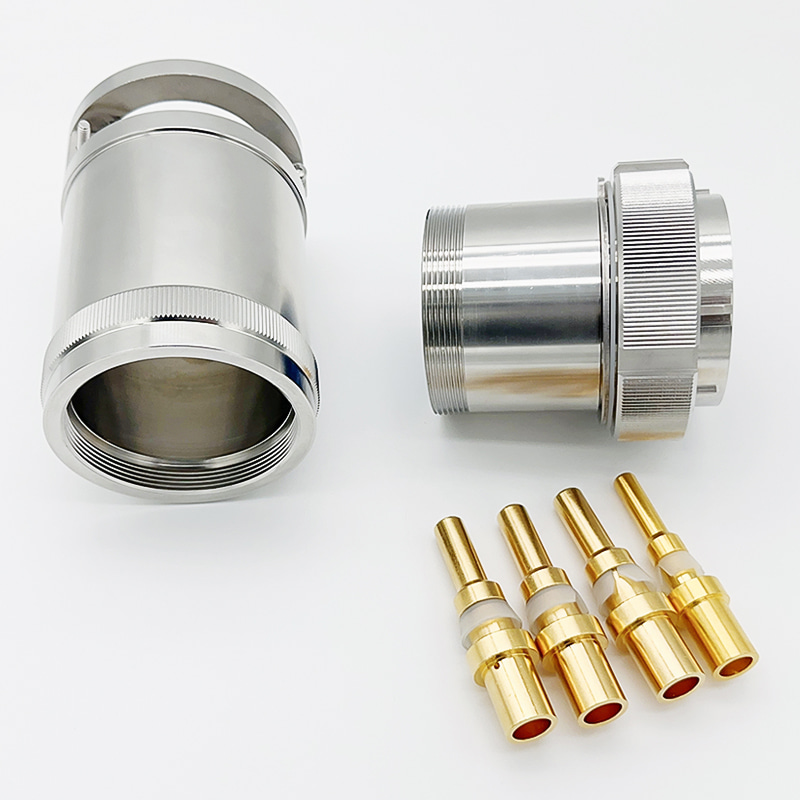

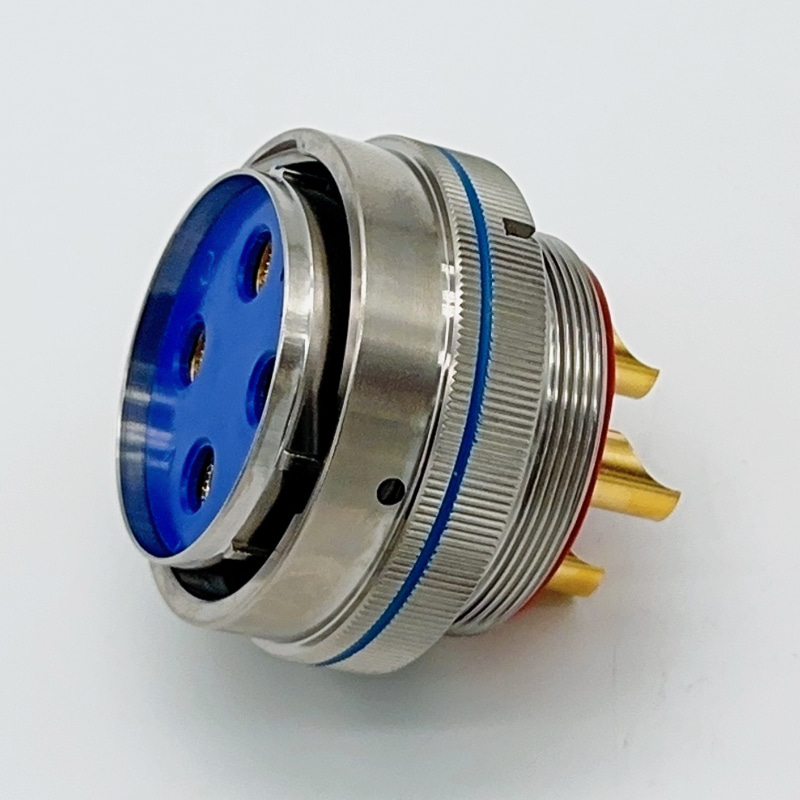

XCD series-Circular Power Connector Manufacturers

Product introduction

●Exclusively for power supply

●Rated operating current 5A~300A

●Adopt hyperboloid wire spring jack

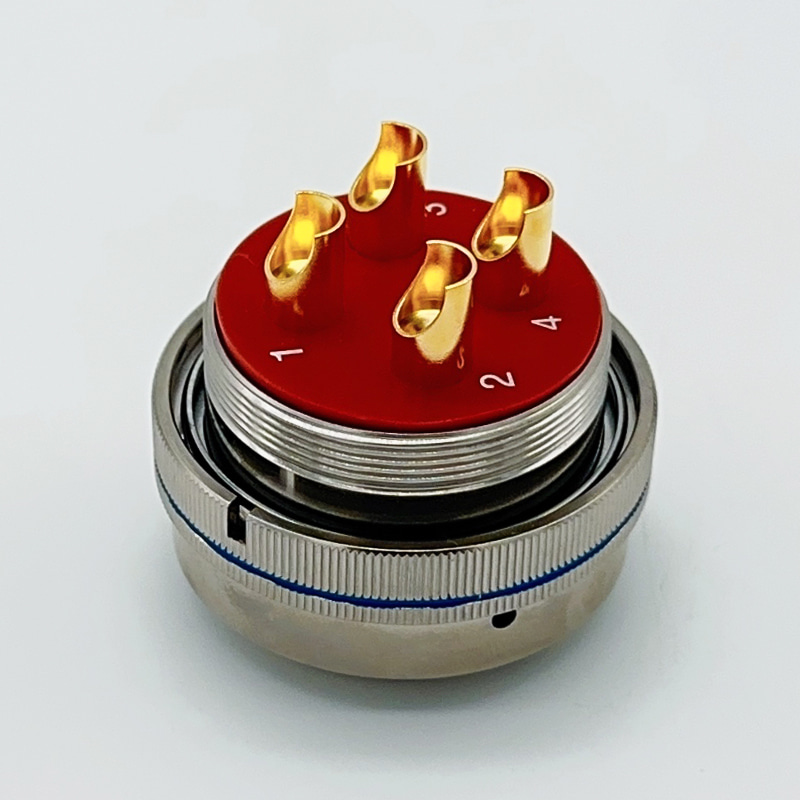

●Various tail termination forms

●Five types of identification keys

●Plugs and sockets can be equipped with either pins or holes

●Execution of enterprise standards: Q/321202HL003-2009

Main technical indicators

[Mechanical properties]

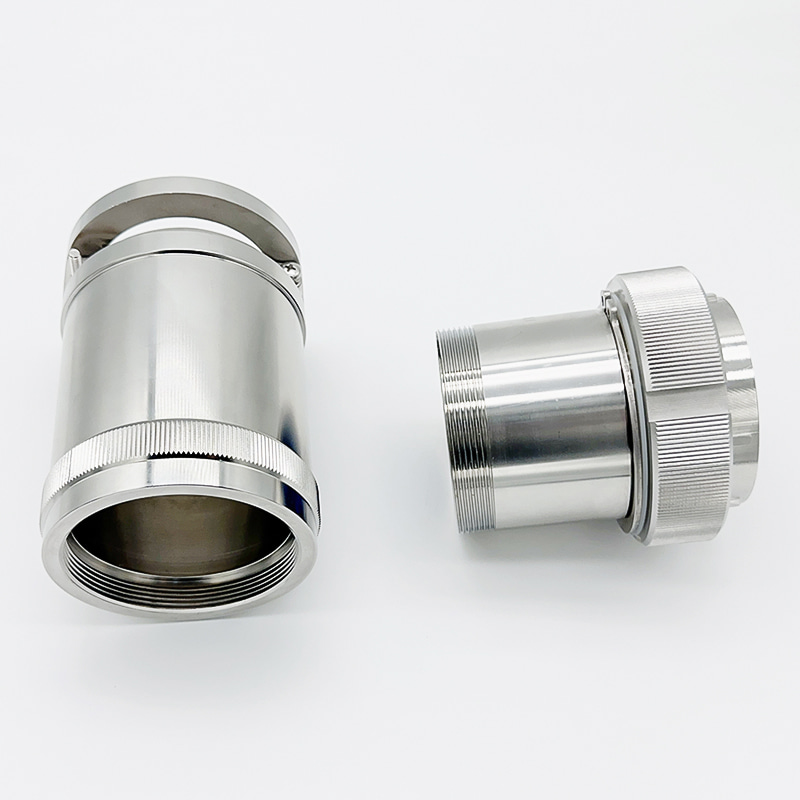

Casing: high-strength aluminum alloy, stainless steel

Insulator: thermoset material

Contacts: Copper alloy gold-plated

Vibration: Frequency 10~2000Hz Acceleration: 196m/s²

Impact: acceleration 980m/s

Constant acceleration: 980m/s²

Mechanical life: ≥1000 times



[Environmental performance]

Using temperature: -55~+200℃

Relative humidity: 95% at 40℃

Salt spray resistance: chemical nickel plating, zinc plating 96h

Stainless steel passivation 1000h

Working height: 30000m

Electrical connectors also have good anti-moisture, anti-mold, anti-rain, anti-sand and dust properties.



[Electrical performance]

Contact resistance and rated current of contacts:



Specifications mm

Contact resistance mΩ

Rated current A

Φ1.0

≤10

5

Φ1.5

≤5

10

Φ2.5

≤2

25

Φ3.5

≤1

40

Φ4.5

≤0.82

60

Φ5.5

≤0.6

100

Φ7.5

≤0.4

150

Φ9.0

≤0.34

200

Φ10

≤0.4

200

Φ12

≤0.3

250

Φ14

≤0.24

300



Rated voltage, withstand voltage and insulation resistance:



working environment

Rated voltage V

Withstand voltage V

Insulation resistance MΩ

Normal temperature state

500

1500

≥5000

Hot and humid state

500

750

≥100



Electrical continuity between shells: aluminum alloy shell ≤5mΩ

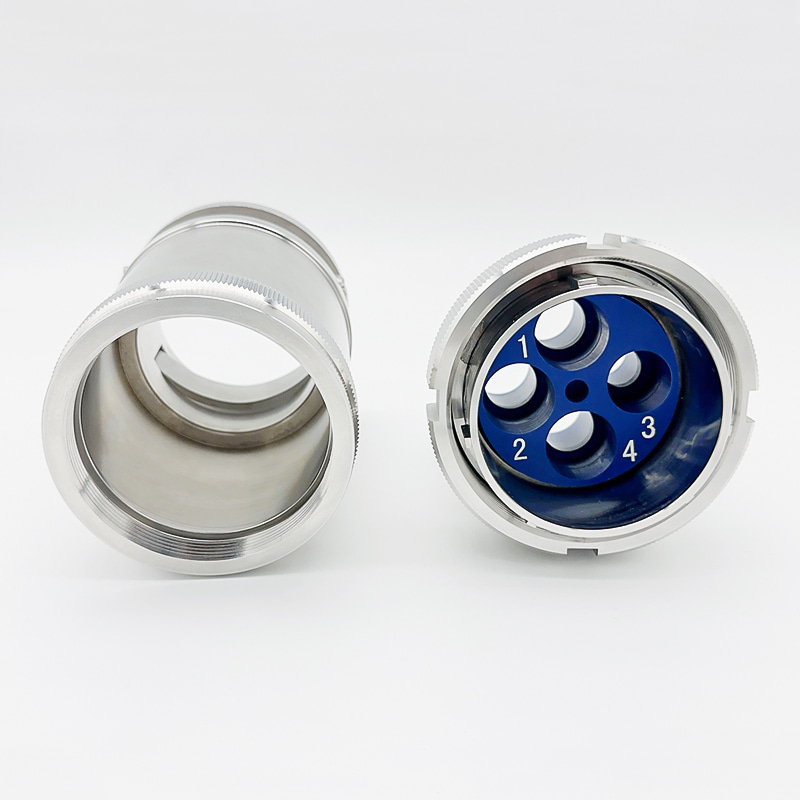

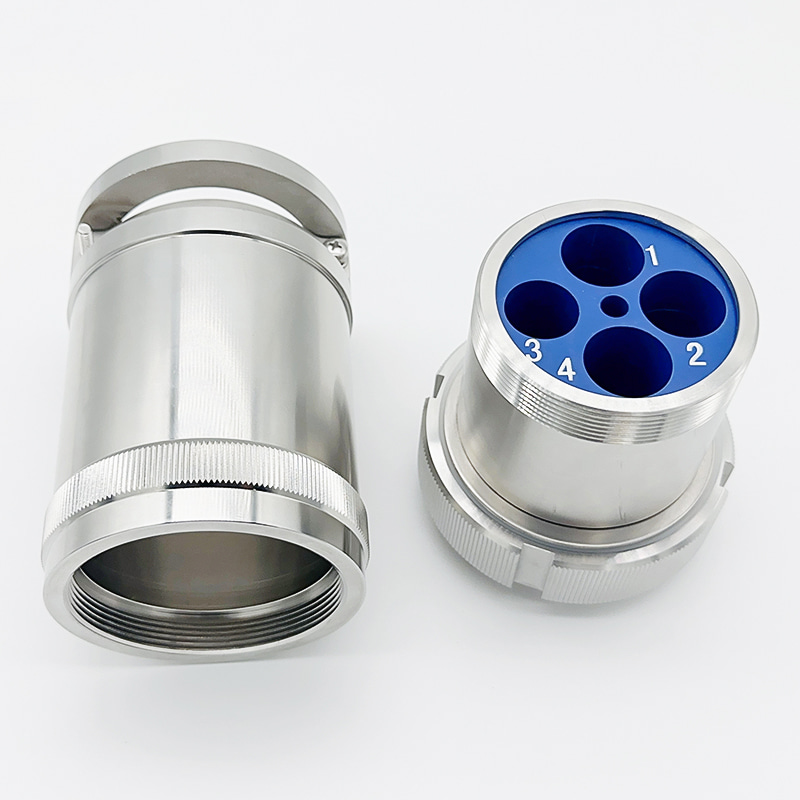

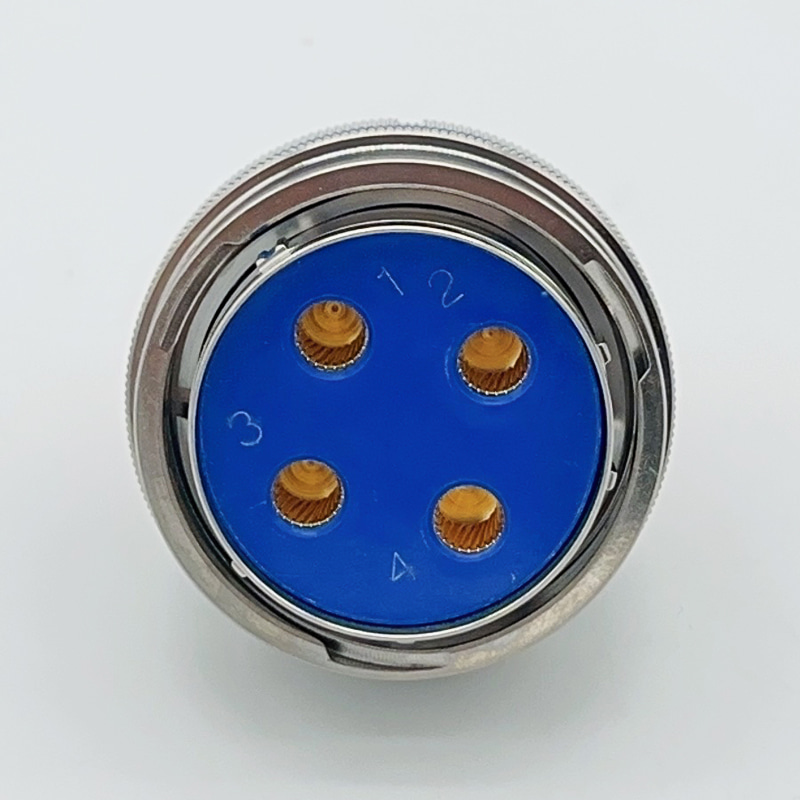

Contact arrangement (view of the insertion surface of the needle insulator)
