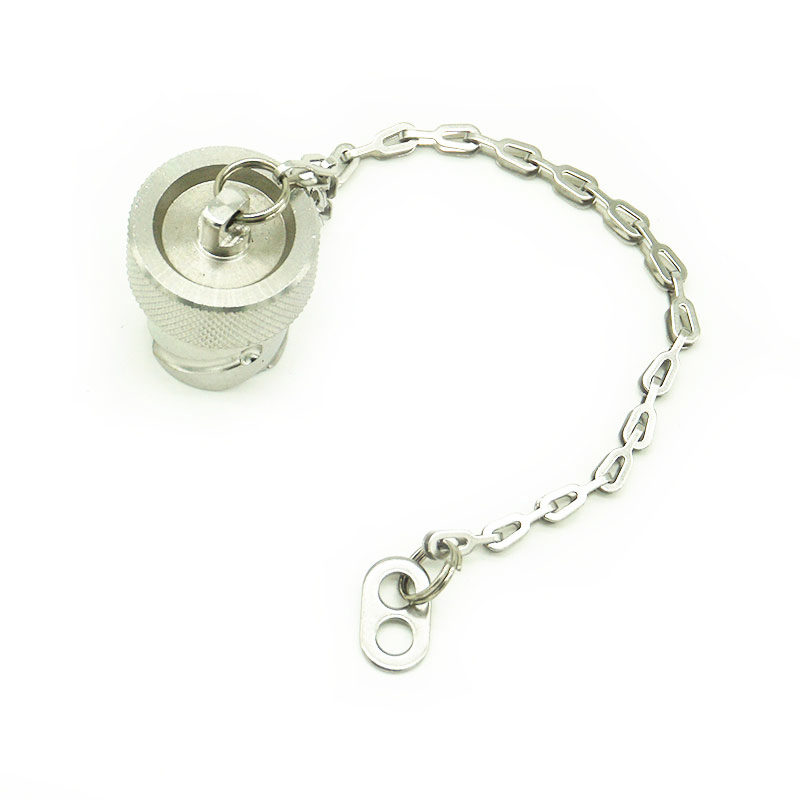

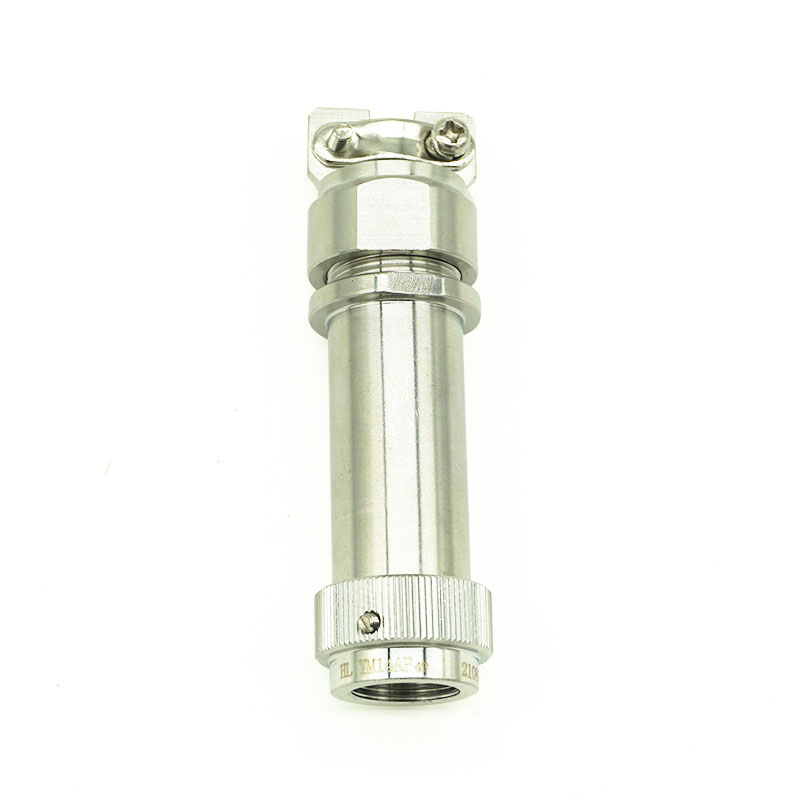

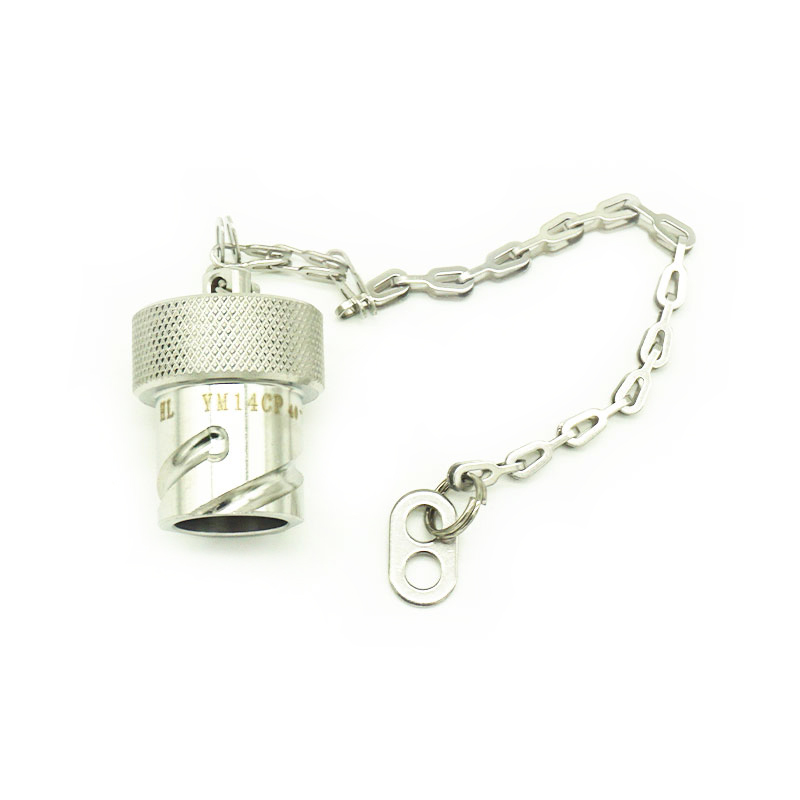

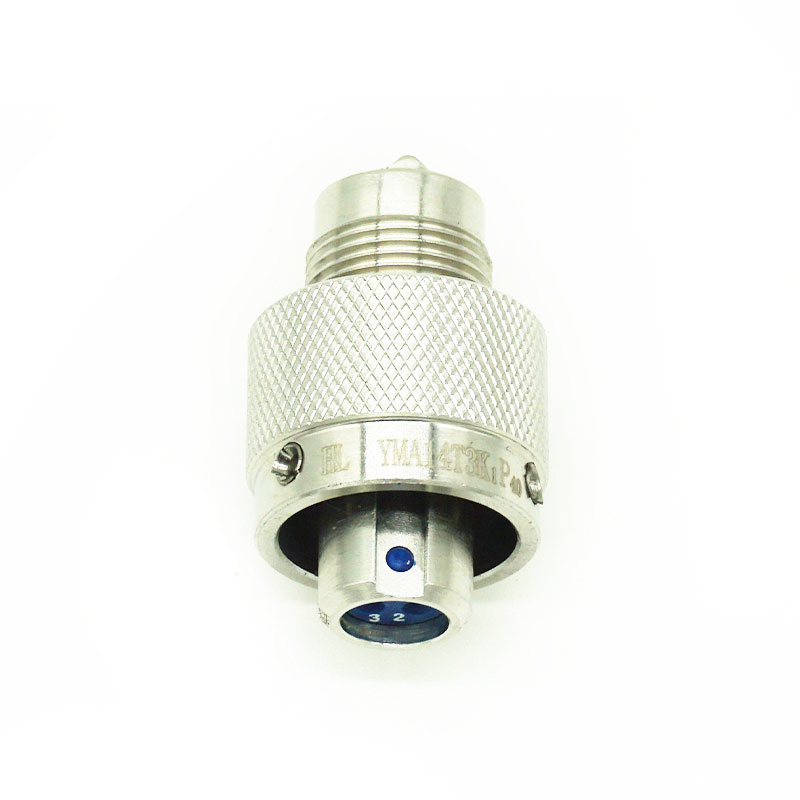

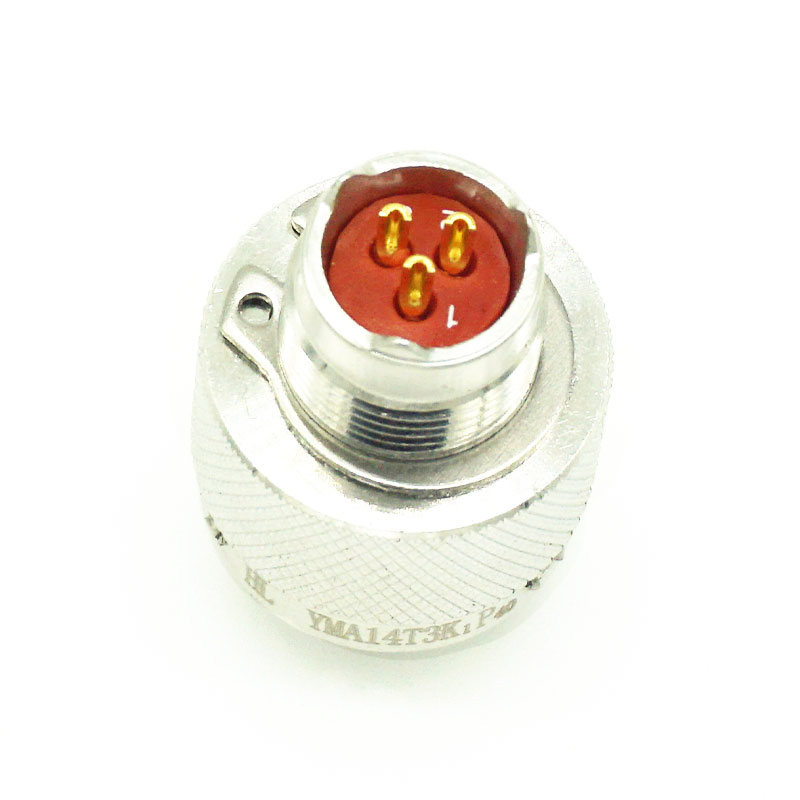

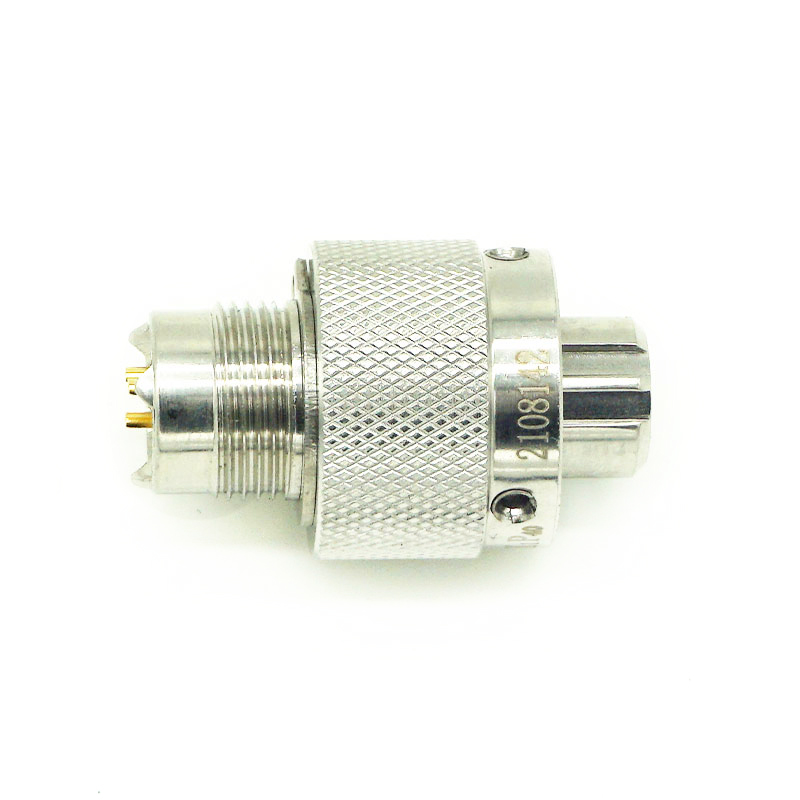

YMA Series Circular Waterproof Bayonet Connectors Manufacturers

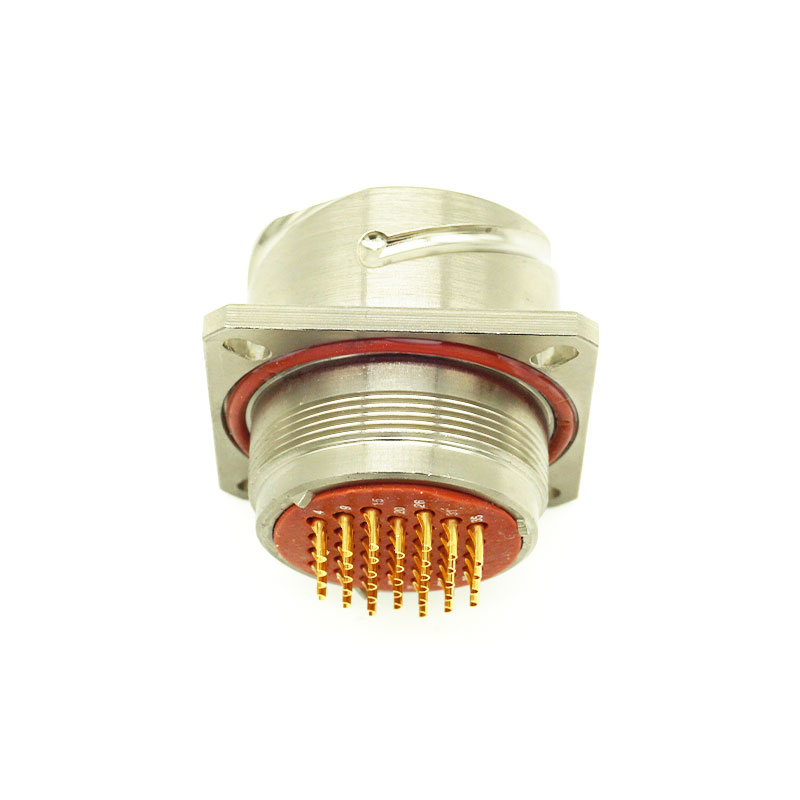

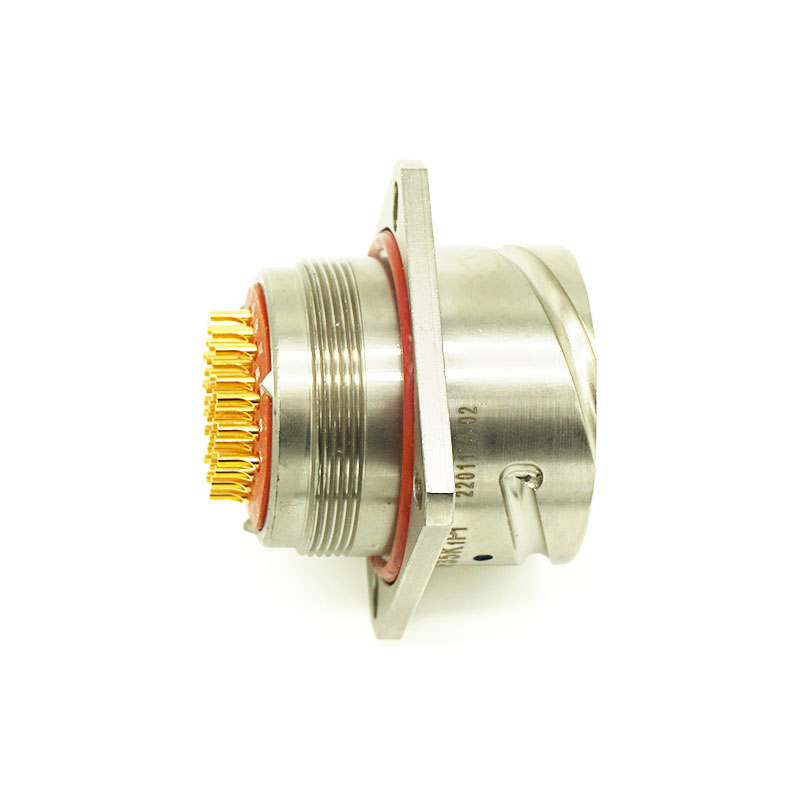

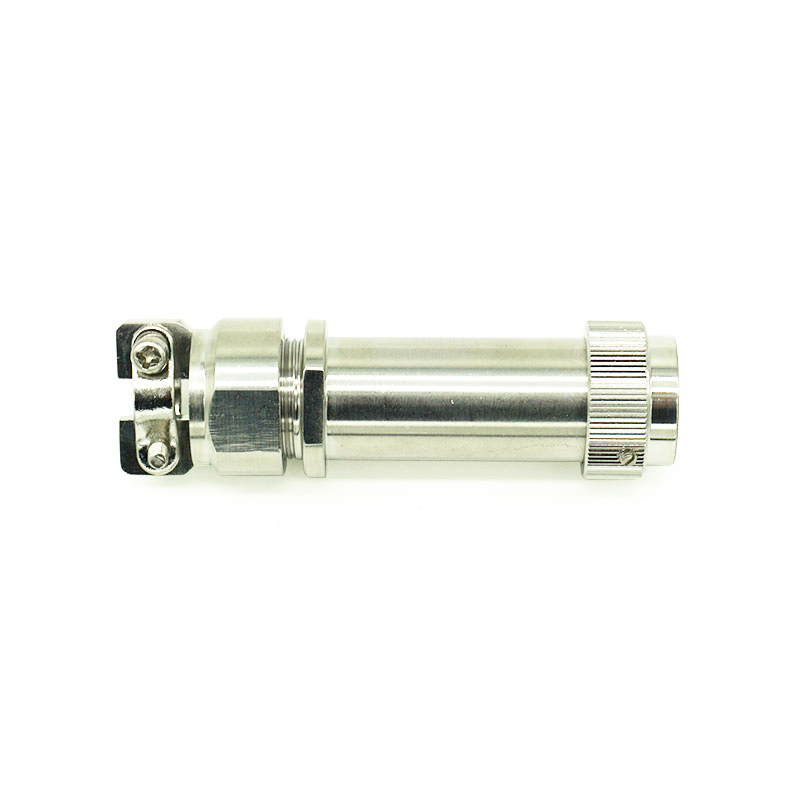

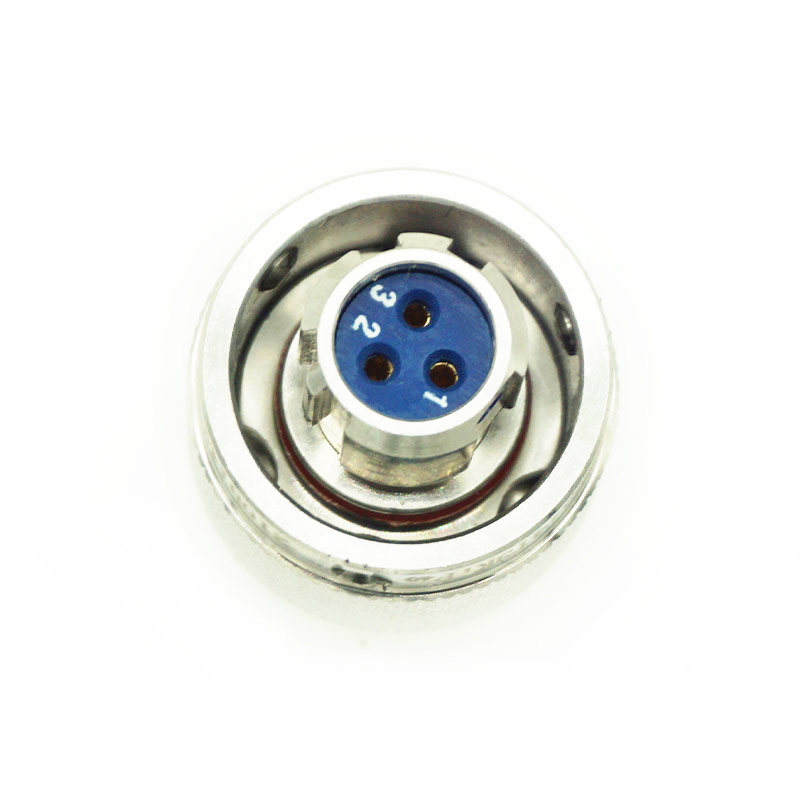

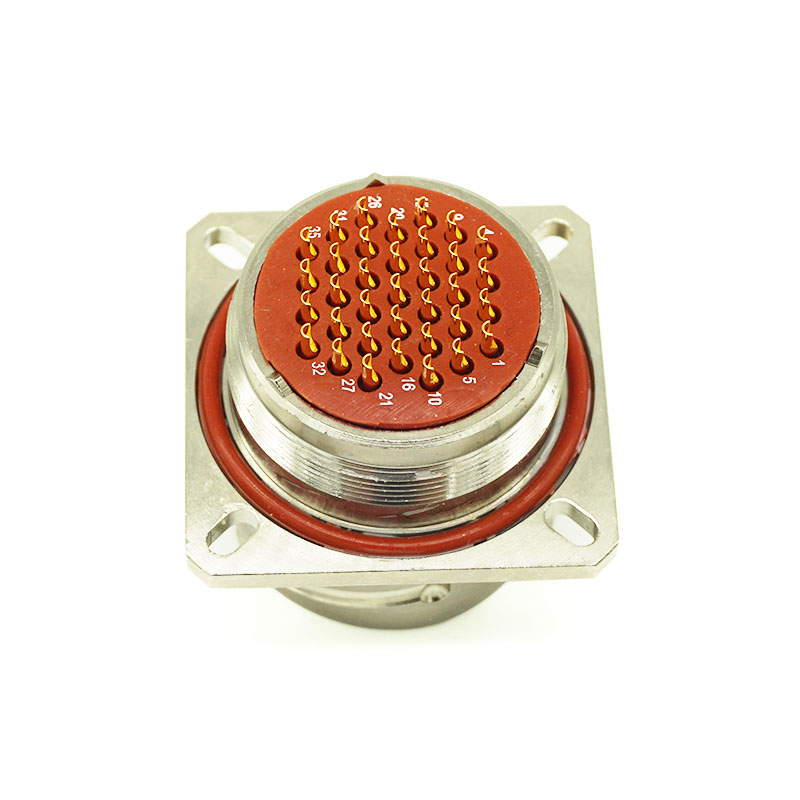

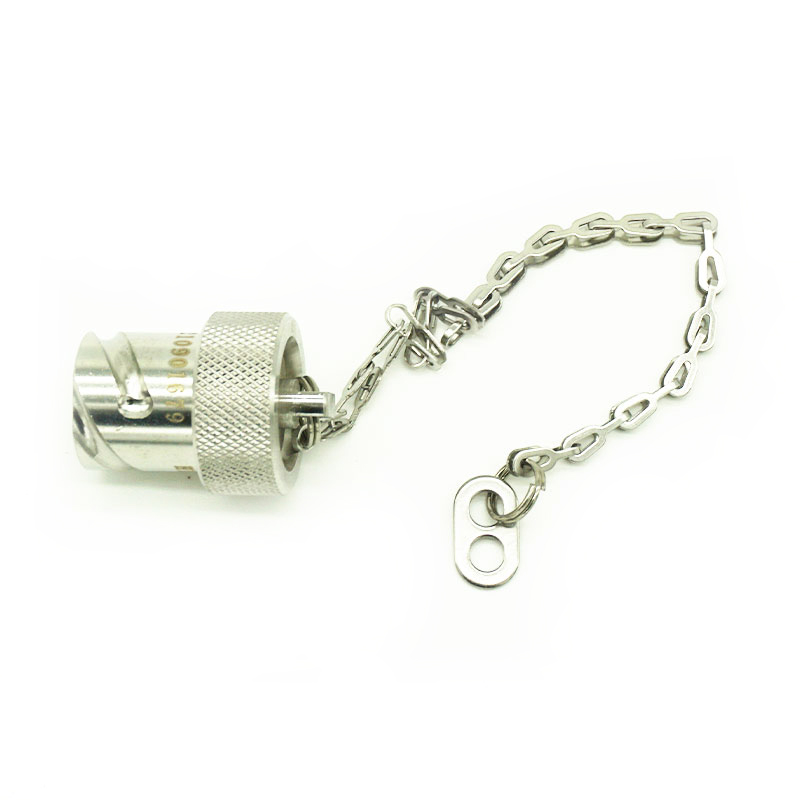

Product introduction

•YMA series connection method: bayonet type quick connection

•YMB series connection method: threaded anti-loosening connection

•Plugs and sockets can be equipped with pins or holes, and the termination method is welding.

•Using hyperboloid wire spring jack, soft insertion and extraction, low contact resistance

•Five-button positioning has blind insertion and mis-insertion prevention functions

•Suitable for equipment and cables in harsh environments such as moisture and water immersion

The electrical connection between cables can withstand a water depth of 55 meters and is sealed

•Execution standard: Q/321283HL05-2011

Technical parameters

[Environmental performance]

——Using temperature: -55℃~+200℃

——Relative temperature: 95% at 60℃

——Sealing performance: water immersion depth 0-55 meters

——The salt resistance: 1000 hours of stainless steel: copper alloy is 500 hours: aluminum alloy is 48 hours

——The leakage rate: When the air pressure difference between the double head seal socket is 5.07 × 10'Pa, the leakage rate is not greater than 46Pa · cm³/s;
When the air pressure difference between the glass seal is 1.01 × 10Pa, the leak rate is not more than 1 × 10 PA · cm³/s.

——The electric connector also has good anti -mold, anti -sand and other performance.

[Mechanical properties]

——Case. Stainless steel passivation, copper chemical nickel plating, aluminum chemical nickel plating

——Insulator: thermoset material

——Alin -sealing body and sealing ring: Silicon Rubber -contacts: copper alloy gold plating

—— Vibration: Frequency 10 ~ 2000Hz Acceleration: 196m/s²

——Impact, acceleration 980m/s²

——Constant acceleration: 980m/s

——Mechanical life: 1000 times

[Electrical performance]

——Contact resistance and rated current



Contact specifications mm

Contact resistance mΩ

Rated current A

Welding wire barrel inner diameter

Φ1.0

5

5

Φ1.2

Φ1.5

2.5

10

Φ1.8

Φ2.0

1.25

20

Φ2.5

Φ3.0

0.75

40

Φ3.0



——Rated voltage, withstand voltage and insulation resistance



Working environment

Rated voltage V

Withstand voltage V

Insulation resistance MΩ

Normal temperature state

500

1500

≥5000

Hot and humid state

500

1125

≥100

Low pressure bar (1KPa)

250

300





—— Anti-electromagnetic interference shielding: at 100MHz~1GHz, the minimum attenuation is 60dB.

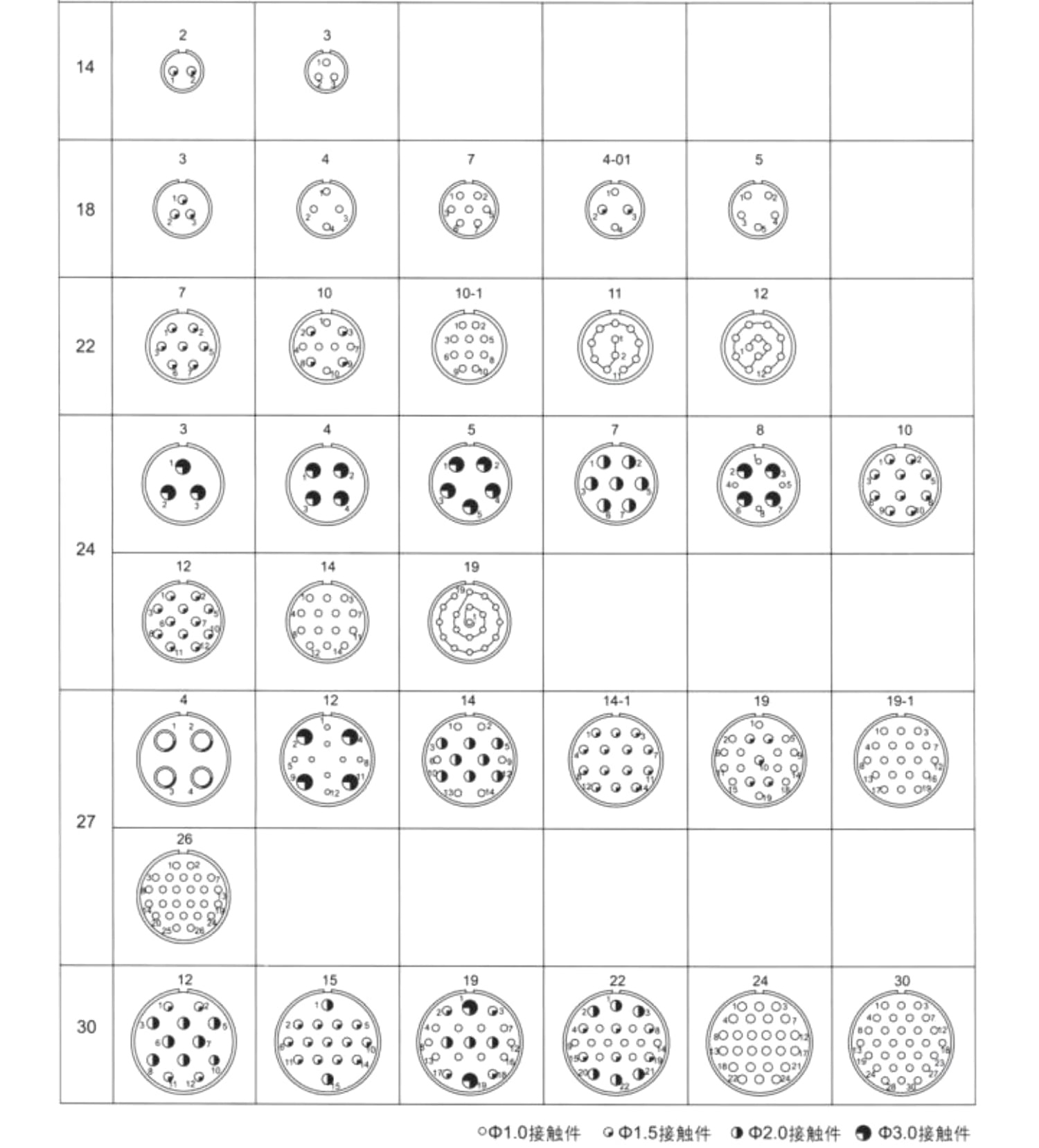

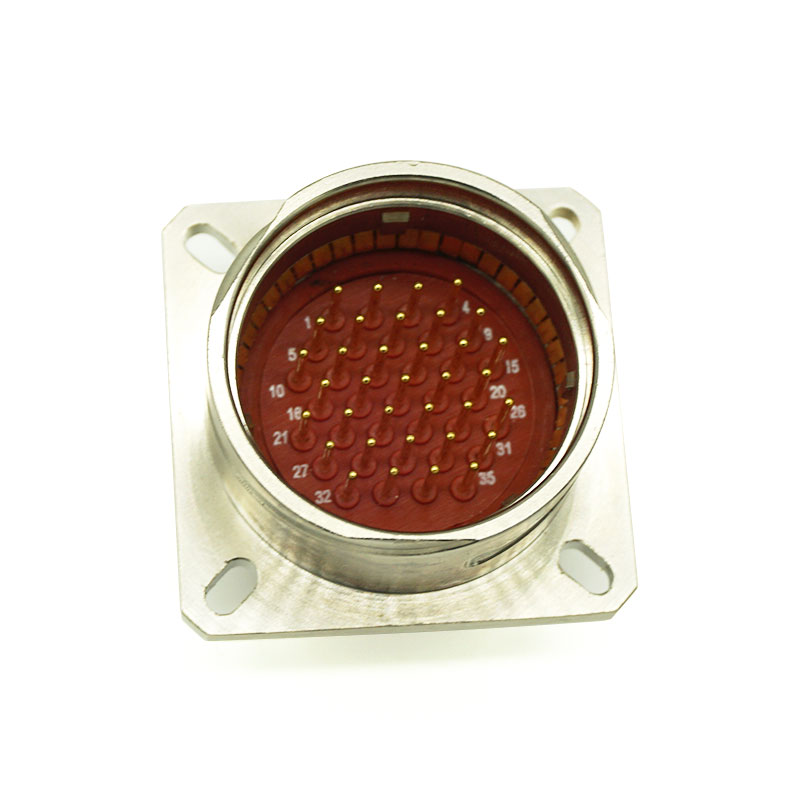

YMA、YMB Series contact arrangement (view of needle mounted insulator insertion surface)

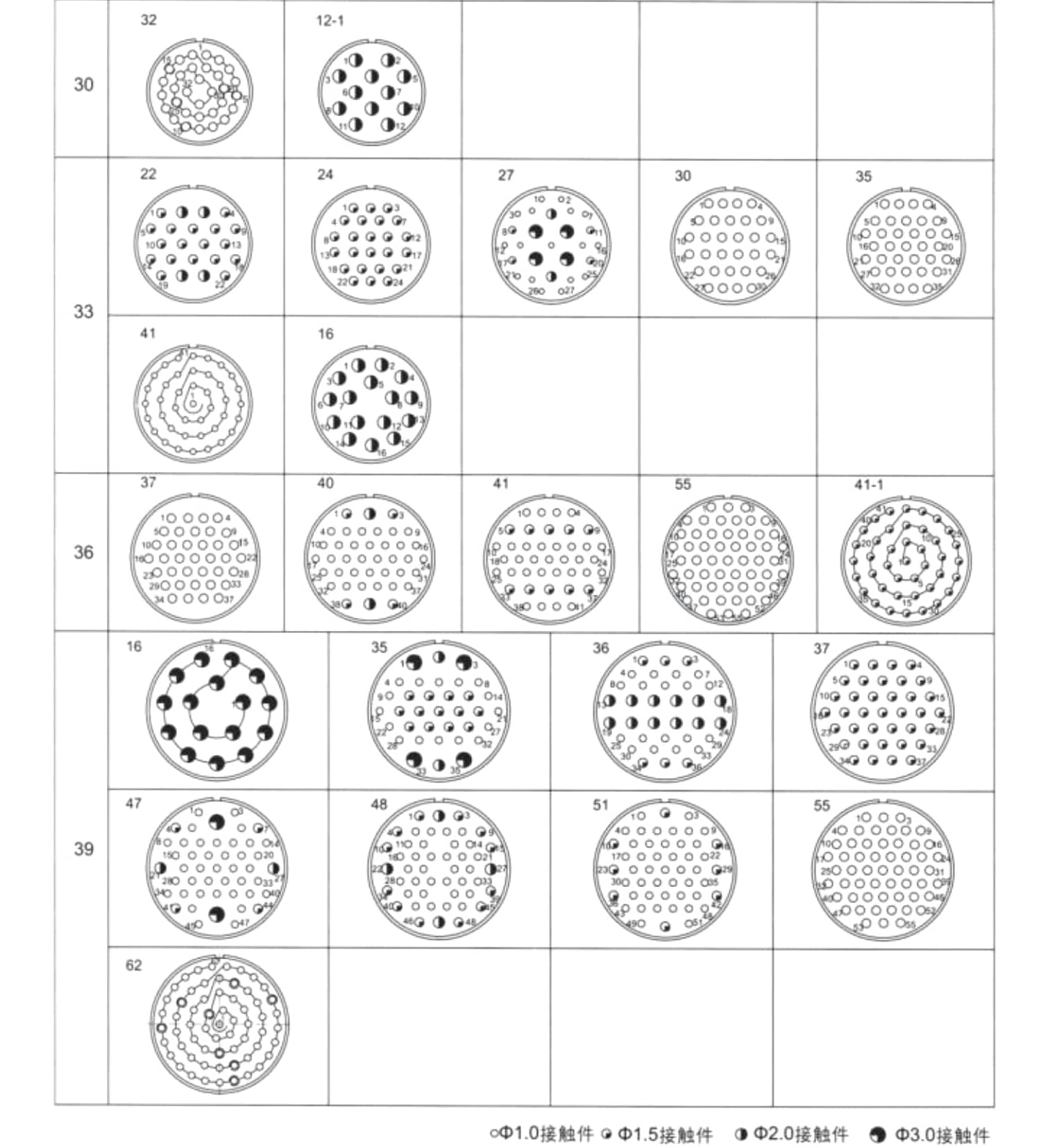

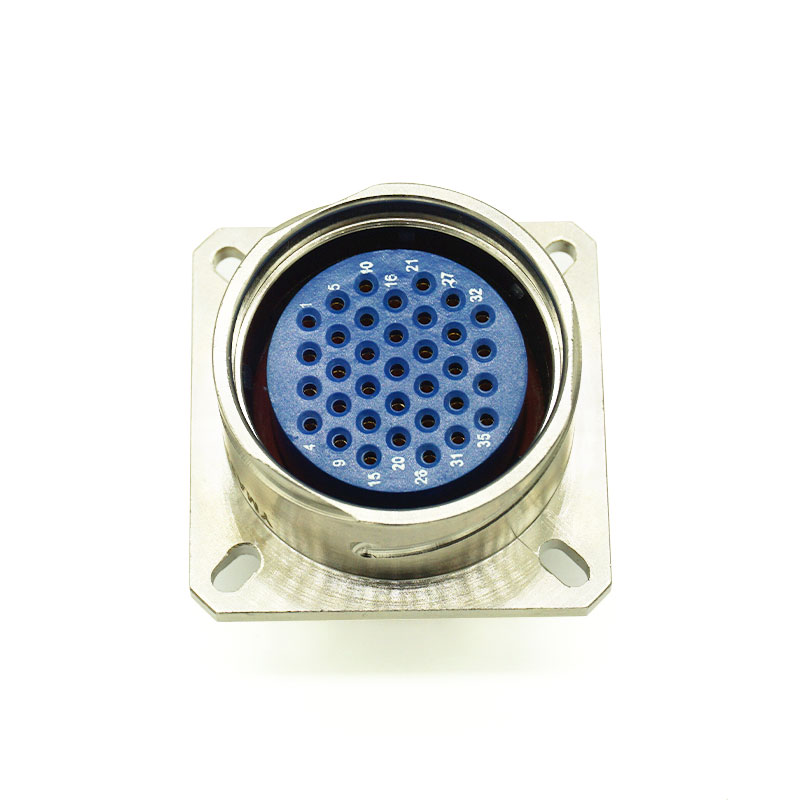

YMA、YMB Series contact arrangement (view of needle mounted insulator insertion surface)
