Custom GJB599III series-Fiber Optic Electrical Connectors

    Information to be updated


GJB599III series-Fiber Optic Electrical Connectors Manufacturers

Product introduction

◆Comply with GJB599B (MIL-DTL-38999) III series interface

◆Different materials and coatings can be used for the outer shell to adapt to different environmental requirements

◆Five-button positioning, with blind insertion and mis-insertion prevention functions

◆Three-head thread quick connection with anti-loosening mechanism

◆Using ceramic pins and sleeves to achieve precision docking

◆A variety of tail attachments are available

◆With adapter socket (optional air sealing) form, free from the constraints of optical cables

Application:Products are used in aviation, electronics, weapons, ships, electric power and other optical fiber communication systems with harsh environmental requirements

Main technical indicators

● Mechanical properties

Mechanical life: 500 mating and unmating cycles

Impact: 980m/s²

Vibration: 10Hz~2000Hz, acceleration 147m/s²

Tensile strength: ≥800N (between main cable and plug)

●Optical performance

Insertion loss: ≤0.6dB (≤4 cores), ≤0.75dB (≥5 cores)

●Environmental performance

Temperature range: -55℃ ~ +85℃ (depending on the optical cable used)

Salt fog:

Category K: 500h

Category F: 48h

Category W: 500h

Category MW: 192h (acidic atmosphere)

Liquid resistance: Resistant to a variety of fuels, coolants and other oils

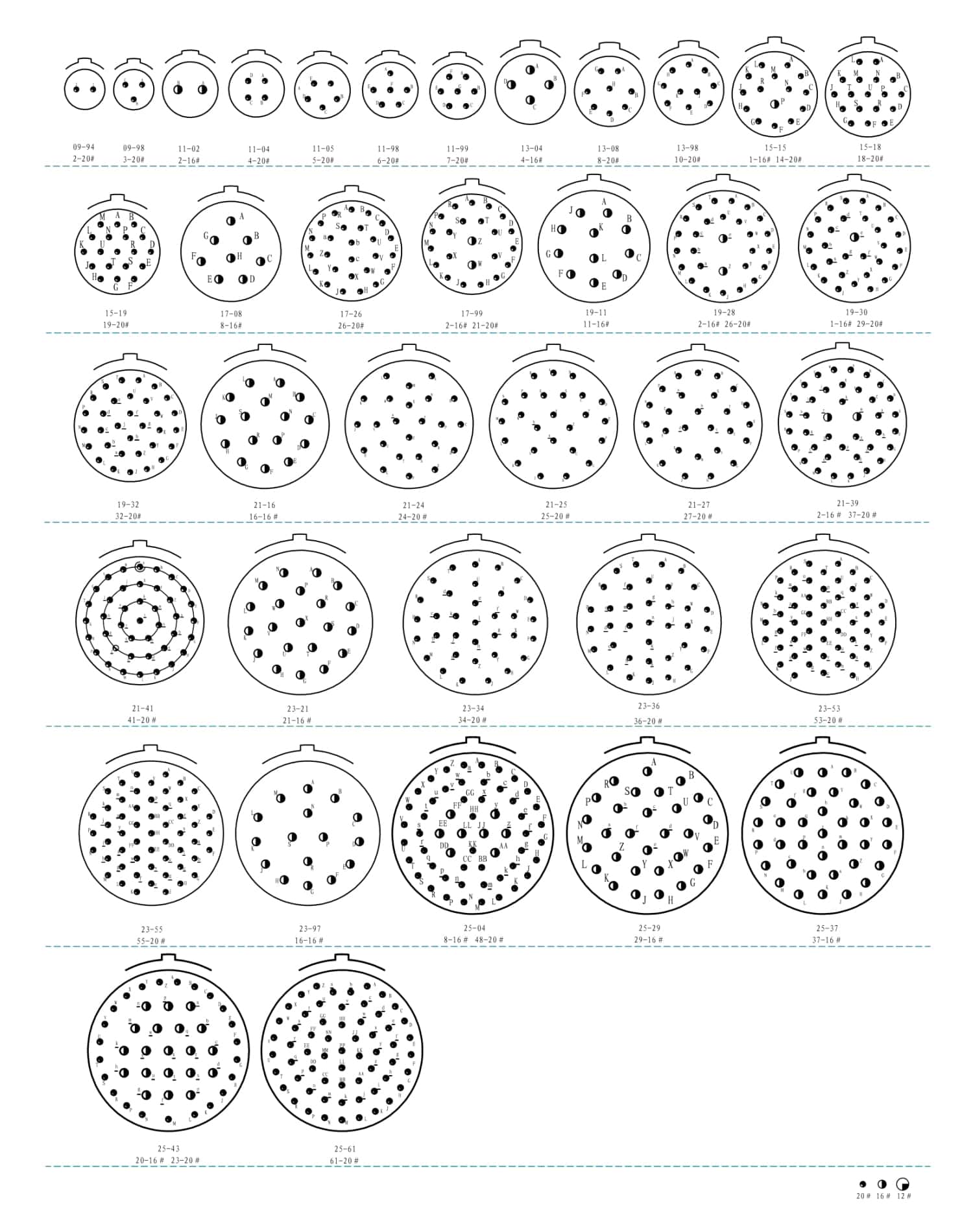

Contact arrangement (view of the insertion surface of the needle insulator)
