MIL-DTL-38999 Series I Electrical Connectors Manufacturers

Product introduction

● Comply with GJB599B (MIL-DTL-38999M) I series standards.

● Bayonet type quick connection, which has the advantages of small size, light weight and high contact couple density.

● EMI/RFI shielding.

● Five-key guide mechanism enables blind insertion and mis-insertion prevention.

● Sockets are available in box type, wall type, front-mounted, rear-mounted and nut-fastened installation, etc.
The contact piece is removable for crimping and is designed to prevent oblique insertion.

● 9 types of shell numbers, multiple hole contact arrangements.

● Resistant to high-intensity vibrations.

● The outer shell can be made of different materials and coatings to adapt to different environmental requirements.

● The mating surface and tail have a sealed structure and have excellent three-proof performance.

● Standard tail attachment in compliance with GJB1784.

Usage: The product is used for circuit signal connection.

Usage environment: The product is used in complex environments such as strong vibration, wind, sand and moisture.

Main technical performance

● Mechanical properties:

Material: Shell: aluminum alloy, stainless steel, titanium alloy

Insulator: Thermoset or Thermoplastic

Sealing body and sealing ring: silicone rubber

Coating: Type B: Cadmium plated military green

Class E: Stainless steel passivated

Category F: Electroless Nickel Plating

Class FT: Aluminum alloy satin cadmium plated

TA type: titanium alloy

Contact parts: copper alloy surface gold-plated, available in crimp type, welding type and printed version.

Mechanical life: ≥500 plug and unplug cycles

vibration:

Sinusoidal vibration frequency 10～2000Hz acceleration 294m/s²

Random vibration frequency 100 ~ 1000Hz power spectral density 1g²/Hz

Shock: 3ms half sine wave, acceleration peak 300g



● Electrical performance:

Contact resistance and rated current of contacts

Contact specifications

Working diamete mm

Contact resistance mΩ

Rated current A

22D

Ф0.76

≤12

5

20#

Ф1.00

≤5

7.5

16#

Ф1.60

≤2.5

13

12#

Ф2.40

≤1.5

23

10#

Ф3.15

≤1.0

40

Electromagnetic interference shielding: minimum attenuation is 85dB at 100MHz~1GHz

At 1GHz ~ 10GHz, the minimum attenuation is 50dB



Withstand voltage: V (Note: Different contact arrangements have different working levels. Please refer to the letters in the upper right corner of the contact arrangement diagram for specific working levels)

Working grade *

M

N

I

II

Sea ​​level

1300

1000

1800

2300

21000m

800

600

1000

1000

Insulation resistance: ≥5000MΩ under normal conditions, ≥100MΩ under humid conditions



Electrical continuity between enclosures:

Class B≤2.5mV

Class F, FT≤1.0mV

E, TA category ≤50mV



● Environmental performance:

Temperature range: Class B: -65 ˚C ~ +175 ˚C

Category E, F: -65 ˚C ~ +200 ˚C

Salt spray resistance: Category B: 500h

E, TA category: 1000h

Category F: 48h/96h

FT Class: 96h

Relative humidity: 98% at 40 ˚C

Working height: ≤30480m



● Other properties: The electrical connector also has good properties such as moisture resistance, salt spray resistance, mold resistance, sand and dust resistance, etc.

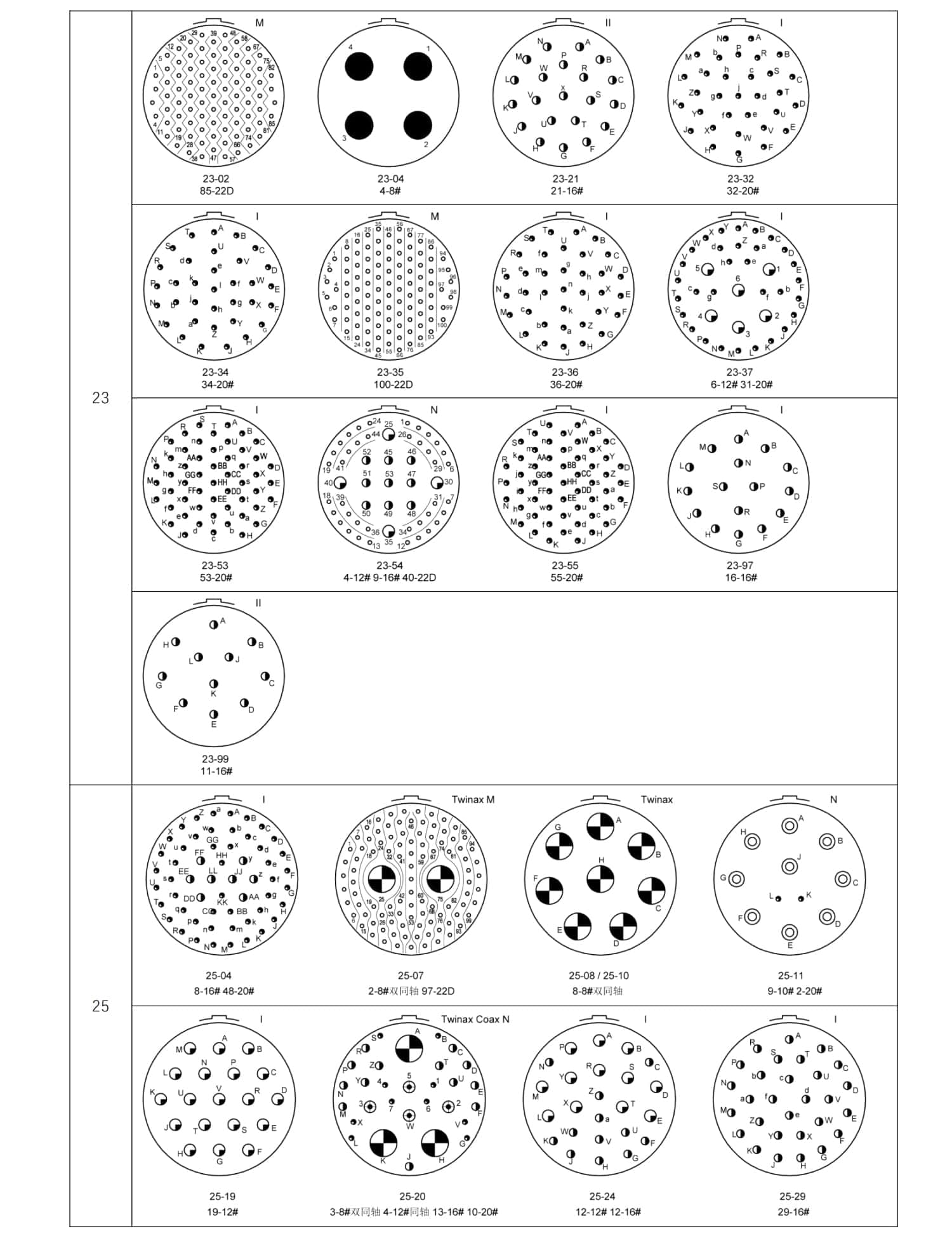

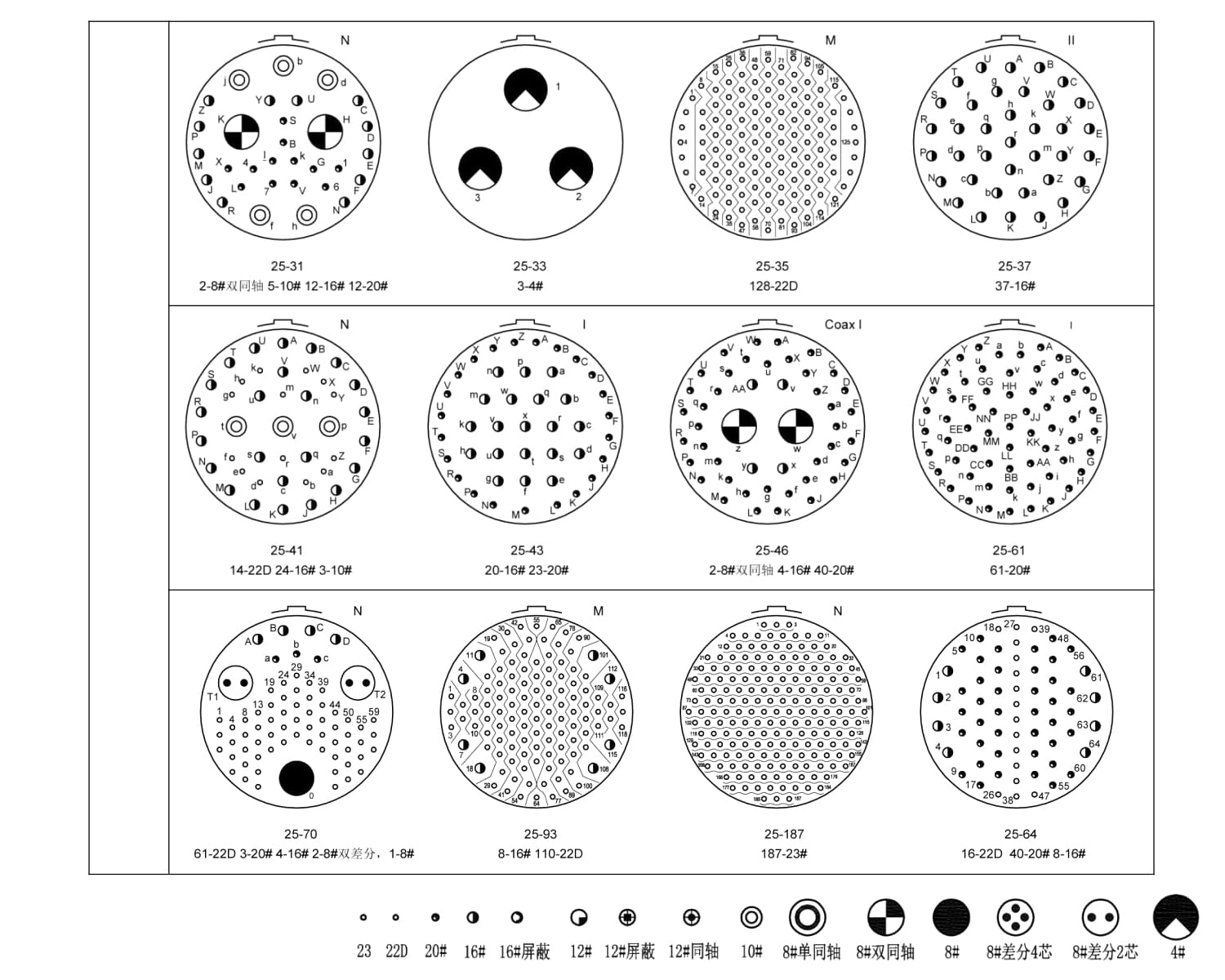

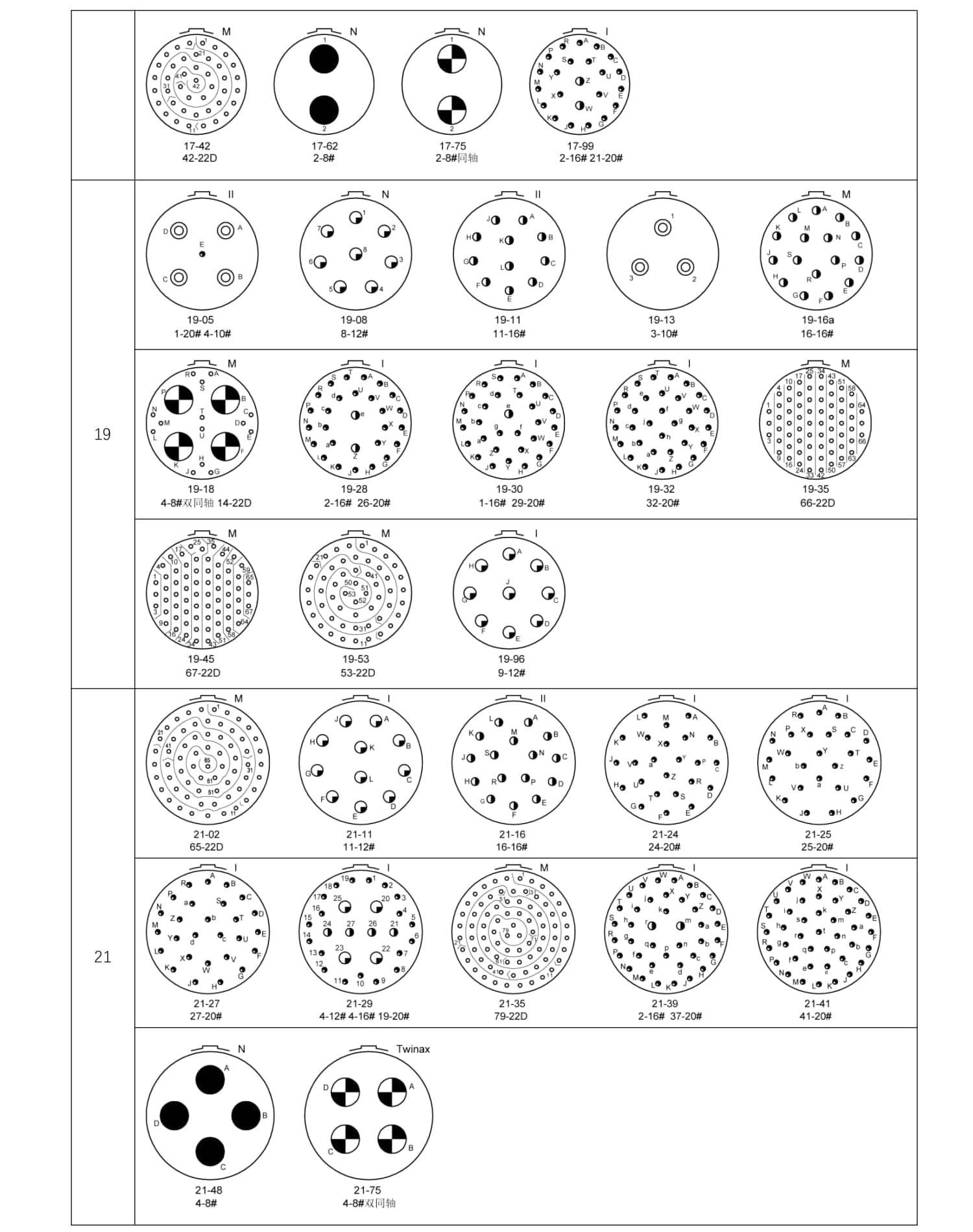

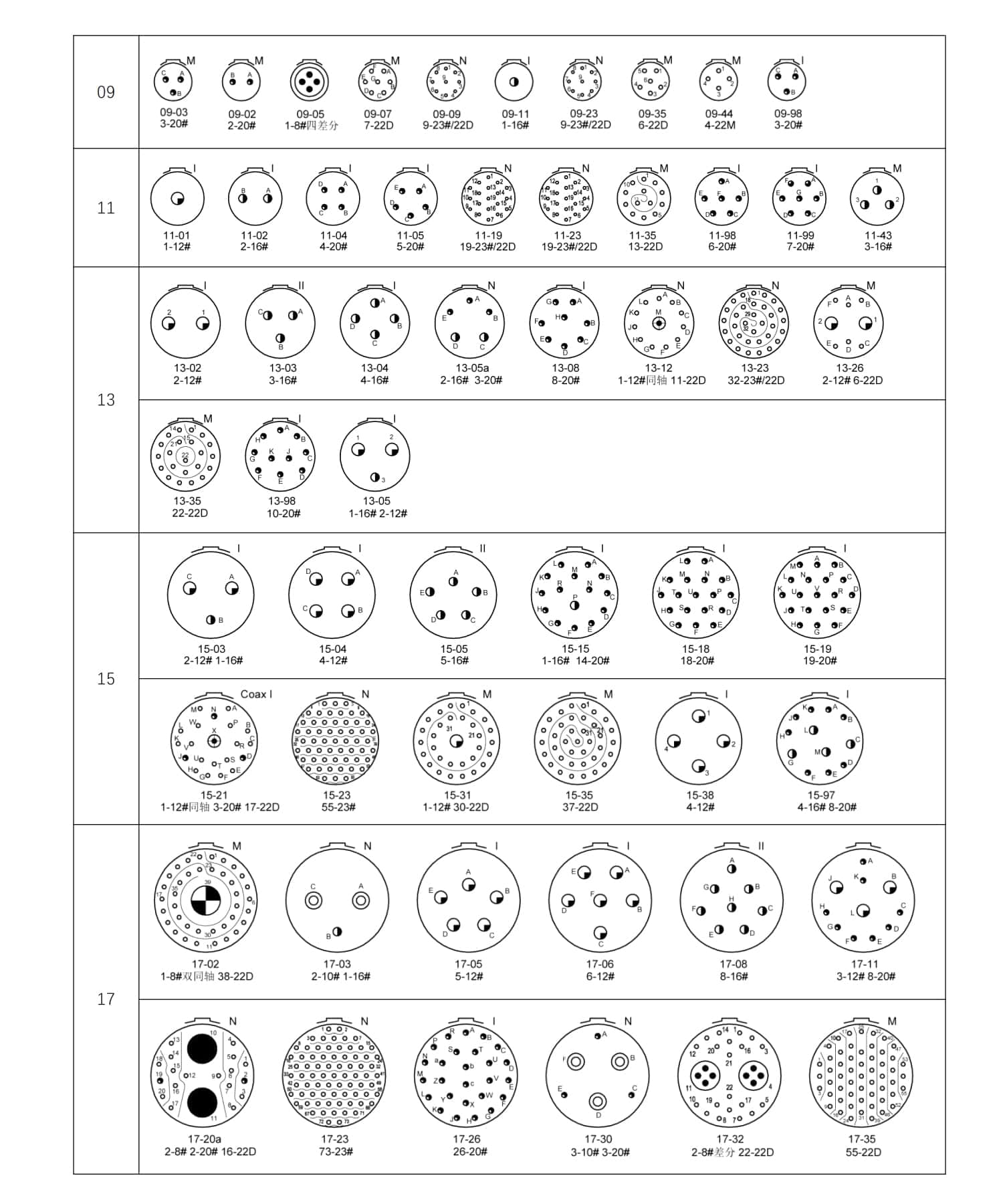

Contact arrangement (view of the insertion surface of the needle insulator)

Note:
1. 20 # hole can be replaced with 20 # fiber optic contact piece;
2. 16 # hole can be replaced with 16 # shielding and 16 # fiber optic contacts;
3. The 12 # hole can be replaced with 12 # shielding, 12 # coaxial, and 12 # fiber optic contacts;
4. The 8 # hole can be replaced with 8 # dual coaxial, 8 # single coaxial, and 8 # differential contacts.
