MS5015 Military Aviation Connector Specifications – Rugged and Reliable Performance

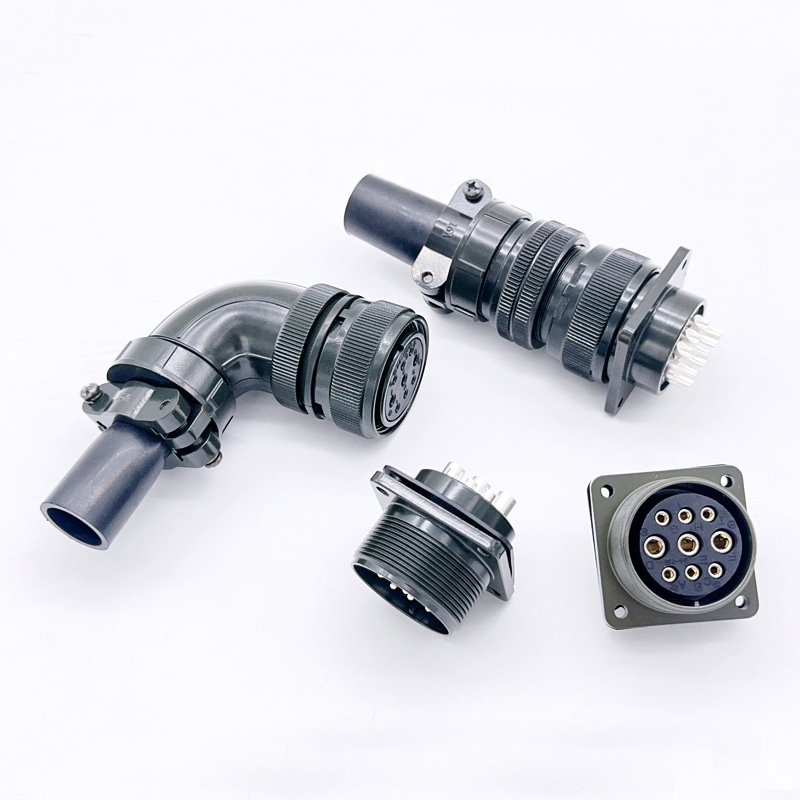

The MS5015 Military Aviation Connector is a high-performance circular connector designed for demanding aerospace and defense applications. Built to meet stringent military standards, it ensures secure electrical connections in extreme environments.

Key Specifications of MS5015 Military Aviation Connector

Electrical Ratings
Voltage Rating: 28V DC / 115V AC
Current Rating: Up to 20A (varies by pin configuration)
Contact Resistance: ≤5mΩ
Environmental & Durability Features
Operating Temperature: -65°C to +200°C
Waterproof Rating: IP67 (submersion up to 1m for 30 mins)
Vibration Resistance: MIL-STD-810G certified
Mating Cycles: 500+ (with minimal wear)

Mechanical Specifications

Housing Material: Aluminum alloy (anodized for corrosion resistance)
Locking Mechanism: Threaded coupling for secure connection
Shell Size: Standard 15-8 (other variants available)

Compliance Standards

MIL-DTL-5015 (US Military Standard)
NATO STANAG 4172 (Allied military compatibility)

Comparison: MS5015 vs. MIL-DTL-38999 Connectors

Applications of MS5015 Connectors

Military Aircraft: Avionics, radar systems, and communication equipment.
Ground Vehicles: Tanks, armored personnel carriers, and field radios.
Marine Systems: Waterproof connections for naval electronics.
UAVs/Drones: Lightweight and durable for unmanned systems.

Why Choose the MS5015 Series?

Proven Reliability: Meets MIL-STD-810G for shock, vibration, and extreme temps.
Ease of Maintenance: Threaded coupling resists loosening in high-vibration environments.
Cost-Effective: More affordable than high-power alternatives like MIL-DTL-38999.
